GO Solenoid Valve 1/2" to 1" P55 Nylon General Purpose Zero Differential Normally Closed Range

SKU: P55-4-16

$94

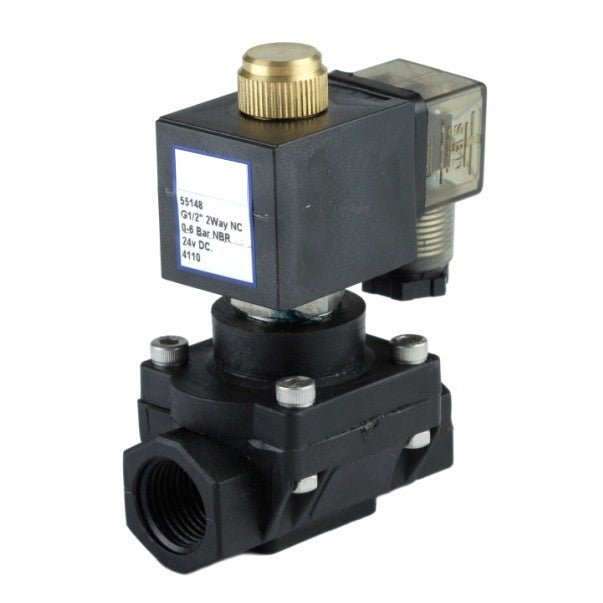

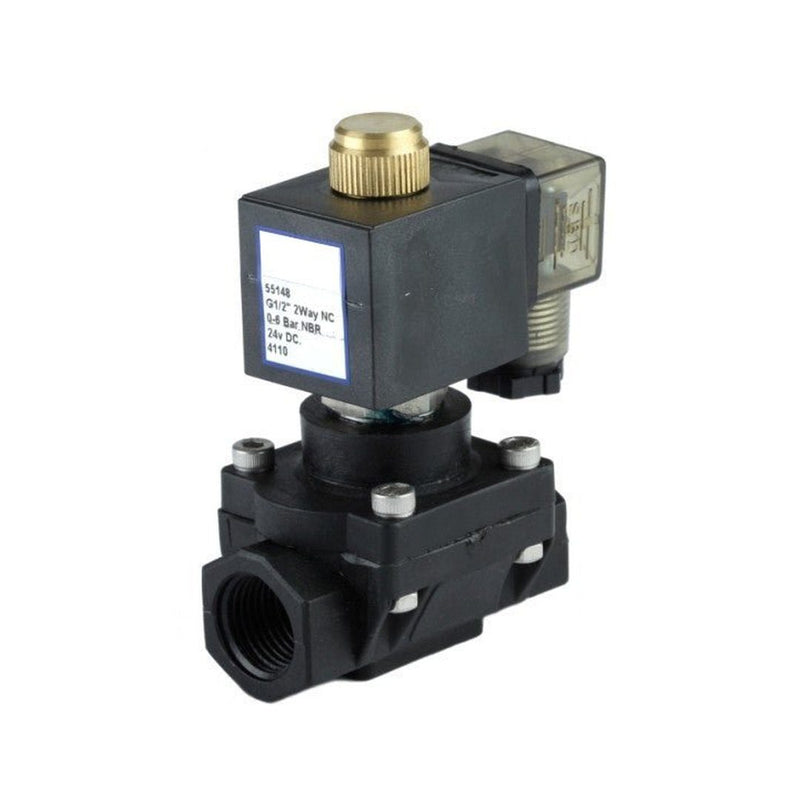

GO Solenoid Valve 1/2" to 1" P55 Nylon General Purpose Zero Differential Normally Closed Range

General purpose zero differential solenoid valve for general purpose applications. Glass reinforced nylon body for added strength and viton seals for chemical resistance. Normally closed (energise to open) and available in all voltages. Comes with coil (class F insulation) and DIN plug (IP65 protection).

Ideal for tank drain, low head and irrigation applications.

  • Size 1/2" to 1" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body BGlass Reinforced Nylon
  • Seat FKM
  • Pressure Range 0 to 6 BAR
  • Media Non aggressive media, some chemicals

    G.R. Plastic, 2 way 2 position normally closed zero differential solenoid valve.G1/2", 16mm orifice, 304 SS operator, copper shading ring, FKM seat.0-6 BAR pressure range, media temp 0°C to 65°C.Coil Class F insulation, 20 Watts, IP65 protection.

    Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temp Coil Specifications
    P55-4-16-*V 1/2 16 4.8 0 to 6 BAR 5°C to 65°C SC-E16
    33 Volt Amps
    20 Watts
    Class H Insulation
    100% ED
    P55-5-20-*V 3/4 20 7.6 0 to 6 BAR 5°C to 65°C
    P55-6-25-*V 1 25 12 0 to 6 BAR 5°C to 65°C
