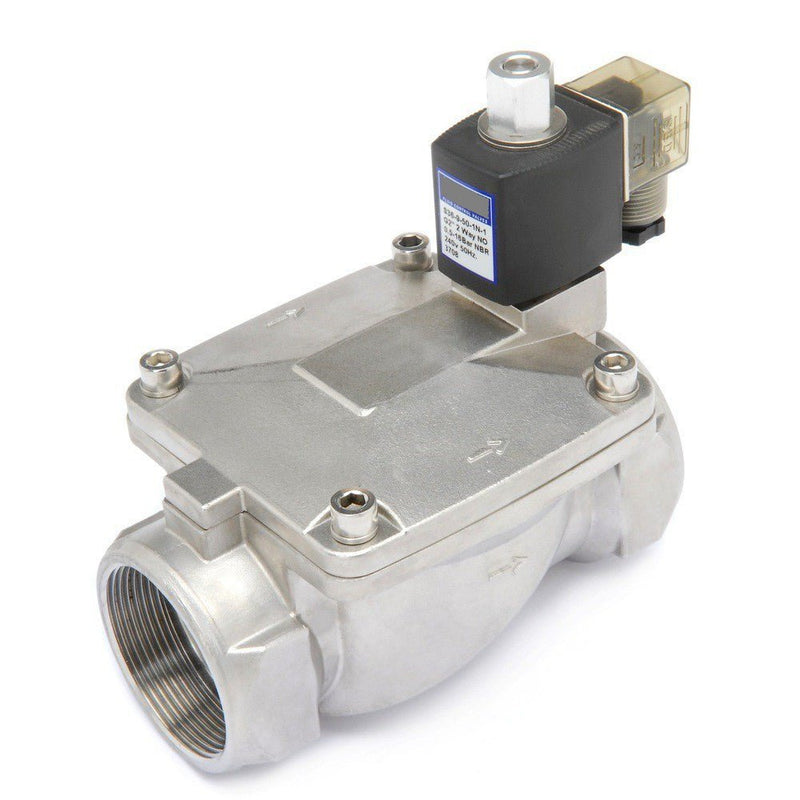

GO S36 Stainless General Purpose Normally Open Solenoid Valves
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
This 304 Stainless Steel normally open (power to close) differential solenoid valve is suitable for non aggressive media up to 40 centistoke viscosity.
Specifications
304 S.S 2 way 2 position normally open differential solenoid valve.G3/4", 20mm orifice, 304 SS operator, copper shading ring, EPDM seat.0.25-16 BAR pressure range, media temp -10°C to 90°C.Coil Class H insulation, 15 Watts, IP65 protection.
- Size 1/2" to 2" BSP
- Function Normally Open (power to close)
- Valve Operation Servo Assisted
- Body 304 Stainless Steel
- Seat EPDM
- Pressure Range 0.3 to 16 BAR
- Media Non aggressive media
| Model | Port Size (BSP) | Orifice ømm | CV | Media Pressure | Media Temperature | Coil Specifications |
|---|---|---|---|---|---|---|
| S36-4-14-*N | 1/2 | 14 | 5 | 0.25 to 16 BAR | -10°C to 90°C | SC-N12 11 Volt Amps 15 Watts Class H Insulation 100% ED |
| S36-5-20-*N | 3/4 | 20 | 10 | 0.25 to 16 BAR | -10°C to 90°C | |
| S36-6-25-*N | 1 | 25 | 11 | 0.25 to 16 BAR | -10°C to 90°C | |
| S36-7-40-*N | 1 ¼ | 40 | 28 | 0.7 to 16 BAR | -10°C to 90°C | SC-N14 20 Volt Amps 21 Watts Class H Insulation 100% ED |
| S36-8-40-*N | 1 ½ | 40 | 34 | 0.7 to 16 BAR | -10°C to 90°C | |
| S36-9-50-*N | 2 | 50 | 50 | 0.7 to 16 BAR | -10°C to 90°C |
