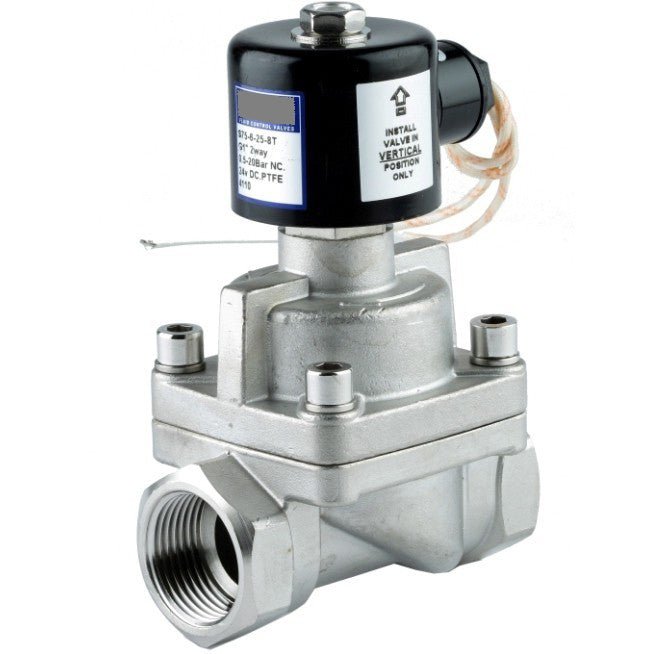

GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves

Name: GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves
Brand: Process Systems
SKU: S75-4-15
Price: 358.0 AUD
Availability: InStock

SKU: S75-4-15

GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves

$358.00 AUD

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Size

1/2" (15mm)

3/4" (20mm)

1" (25mm)

1 1/4" (32mm)

1 1/2" (40mm)

2" (50mm)

1" (25mm) Flanged ANSI 150#

1 1/2" (35mm) Flanged ANSI 150#

2" (35mm) Flanged ANSI 150#

Orifice

15mm

20mm

25mm

35mm

50mm

Product variants

Quantity

Other payment options

The Basics

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 304 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity.

Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry.

304 S.S 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-20 BAR pressure range, media temp -10°C to 180°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model	Port Size (BSP)	Orifice ømm	CV	Pressure (BAR)	Media Temperature	Coil Specifications
S75-3-15-*T	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-C2 DIN Plug 28 Watts 24 Volt Amps 100% ED Class H Insulation IP65
S75-4-15-*T	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*T	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*T	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*T	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*T	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*T	2	50	48	0.5 to 20	-10°C to 180°C
S75-3-15-*TF	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-H2 Flying Leads 25 watts 33 Volt Amps 100% ED Class H Insulation IP54
S75-4-15-*TF	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*TF	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*TF	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*TF	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*TF	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*TF	2	50	48	0.5 to 20	-10°C to 180°C

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 10 BAR
Media Steam

Add text about your shipping policy

Add text about your product warranty

Add text about your payment

View full details

GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves

From $358.00 AUD

Product variants

Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry.

The Basics

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Model	Port Size (BSP)	Orifice ømm	CV	Pressure (BAR)	Media Temperature	Coil Specifications
S75-3-15-*T	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-C2 DIN Plug 28 Watts 24 Volt Amps 100% ED Class H Insulation IP65
S75-4-15-*T	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*T	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*T	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*T	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*T	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*T	2	50	48	0.5 to 20	-10°C to 180°C
S75-3-15-*TF	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-H2 Flying Leads 25 watts 33 Volt Amps 100% ED Class H Insulation IP54
S75-4-15-*TF	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*TF	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*TF	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*TF	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*TF	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*TF	2	50	48	0.5 to 20	-10°C to 180°C

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 10 BAR
Media Steam
