GO Solenoid Valve 1/2
Dimensions - GO Solenoid Valve 1/2
  • GO Solenoid Valve 1/2" to 2" S75T 304 Stainless Very High Temp Normally Closed Range
  • Dimensions - GO Solenoid Valve 1/2" to 2" S75T 304 Stainless Very High Temp Normally Closed Range
1 3

Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers & general industry.



304 S.S 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.Air/Oil: 0.5-25 BAR , media -10°C to 250°C. Steam saturated: 0.5-16 BAR, 200°C.Coil Class H insulation. IP55

Model Port Size (BSP) Orifice ømm CV Pressure Steam Pressure Air/Oil Coil Specifications
S75T-3-15-*TF 3/8 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR

SC-H2
33 Volt Amps
25 Watts
Class H Insulation
100% ED
IP54
S75T-4-15-*TF 1/2 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR
S75T-5-20-*TF 3/4 20 9.3 0.5 to 20 BAR 0.5 to 25 BAR
S75T-6-25-*TF 1 25 13.2 0.5 to 20 BAR 0.5 to 25 BAR
S75T-7-35-*TF 1 ¼ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
S75T-8-35-*TF 1 ½ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
S75T-9-50-*TF 2 50 48 0.5 to 20 BAR 0.5 to 25 BAR


  • Size 1/2" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body 304 Stainless Steel
  • Seat RPTFE
  • Pressure Range 0.5 to 20 BAR
  • Media Steam, Hot Oil



GO Solenoid Valve 1/2" to 2" S75T 304 Stainless Very High Temp Normally Closed Range

SKU: S75T-4-15

GO Solenoid Valve 1/2" to 2" S75T 304 Stainless Very High Temp Normally Closed Range

$468.00 AUD
$468.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Orifice

Other payment options

The Basics

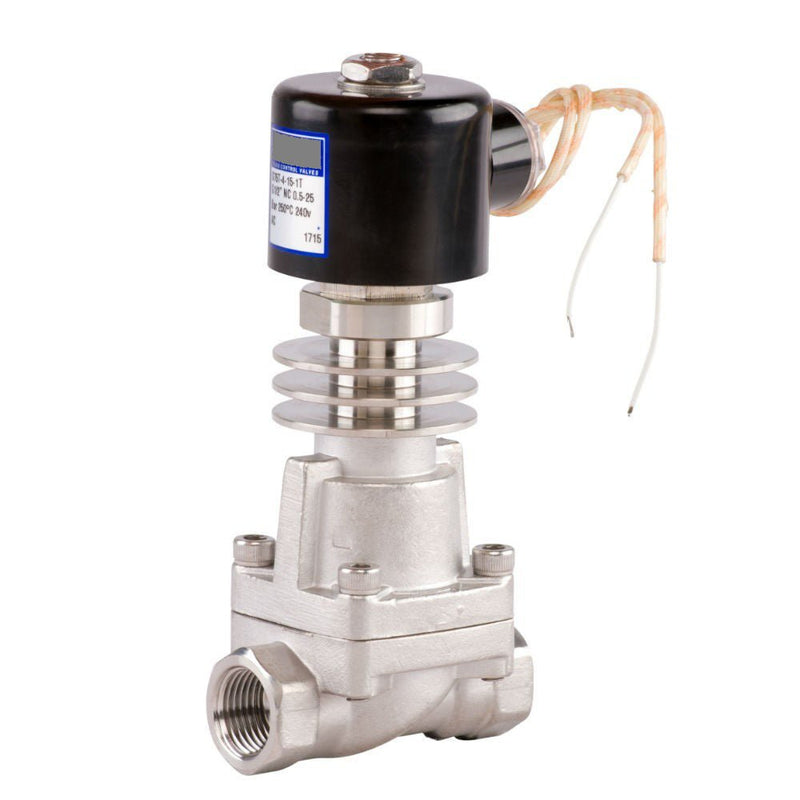

A very high temperature normally closed (power to open) piston type solenoid valve with a 304 Stainless Steel body and reinforced Teflon seats. Mainly used as a for high temperature applications as it will do up to 200°C saturated steam and up to 250°C in other media such as hot oil. Will handle fluids up to 50 centistoke viscosity.

Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers & general industry.

  • Size 1/2" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body 304 Stainless Steel
  • Seat RPTFE
  • Pressure Range 0.5 to 20 BAR
  • Media Steam, Hot Oil

    304 S.S 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.Air/Oil: 0.5-25 BAR , media -10°C to 250°C. Steam saturated: 0.5-16 BAR, 200°C.Coil Class H insulation. IP55

    Model Port Size (BSP) Orifice ømm CV Pressure Steam Pressure Air/Oil Coil Specifications
    S75T-3-15-*TF 3/8 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR

    SC-H2
    33 Volt Amps
    25 Watts
    Class H Insulation
    100% ED
    IP54
    S75T-4-15-*TF 1/2 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-5-20-*TF 3/4 20 9.3 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-6-25-*TF 1 25 13.2 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-7-35-*TF 1 ¼ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-8-35-*TF 1 ½ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-9-50-*TF 2 50 48 0.5 to 20 BAR 0.5 to 25 BAR

    Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers & general industry.



    304 S.S 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.Air/Oil: 0.5-25 BAR , media -10°C to 250°C. Steam saturated: 0.5-16 BAR, 200°C.Coil Class H insulation. IP55

    Model Port Size (BSP) Orifice ømm CV Pressure Steam Pressure Air/Oil Coil Specifications
    S75T-3-15-*TF 3/8 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR

    SC-H2
    33 Volt Amps
    25 Watts
    Class H Insulation
    100% ED
    IP54
    S75T-4-15-*TF 1/2 15 4.5 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-5-20-*TF 3/4 20 9.3 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-6-25-*TF 1 25 13.2 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-7-35-*TF 1 ¼ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-8-35-*TF 1 ½ 35 26 0.5 to 20 BAR 0.5 to 25 BAR
    S75T-9-50-*TF 2 50 48 0.5 to 20 BAR 0.5 to 25 BAR


    • Size 1/2" to 2" BSP
    • Function Normally Closed (power to open)
    • Valve Operation Servo Assisted
    • Body 304 Stainless Steel
    • Seat RPTFE
    • Pressure Range 0.5 to 20 BAR
    • Media Steam, Hot Oil



    View full details
