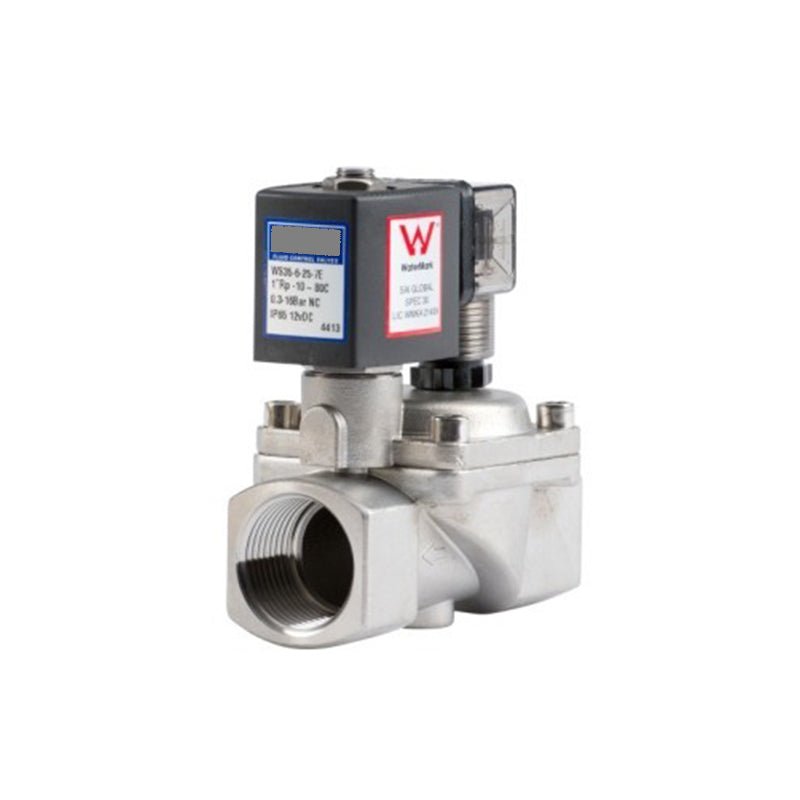

GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves
SKU: WS35-4-14GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves
GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves
GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves
Overview
A 304 Stainless Steel Normally Closed (power to open) Watermark approved solenoid valve. Great for potable water or any application where watermark approval is required (mains water in Australia).
Specifications
304SS 2 way 2 position normally closed Watermark solenoid valve.1/2", 14mm orifice, 304 SS operator, copper shading ring, EPDM seat.0.25-16 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation c/w LED connector plug, 11 Volt Amps, IP65 pro
| Model | Port Size (BSP) | Orifice ømm | CV | Pressure (BAR) | Media Temp | Coil Specifications |
|---|---|---|---|---|---|---|
| WS35-4-14-*E | 1/2 | 14 | 5 | 0.25 to 16 BAR | -10°C to 90°C | SC-N12 11 Volt Amps 15 Watts Class H Insulation 100% ED |
| WS35-5-20-*E | 3/4 | 20 | 10 | 0.25 to 16 BAR | -10°C to 90°C | |
| WS35-6-25-*E | 1 | 25 | 11 | 0.25 to 16 BAR | -10°C to 90°C | |
| WS35-7-40-*E | 1 ¼ | 40 | 28 | 0.7 to 16 BAR | -10°C to 90°C | |
| WS35-8-40-*E | 1 ½ | 40 | 34 | 0.7 to 16 BAR | -10°C to 90°C | |
| WS35-9-50-*E | 2 | 50 | 50 | 0.7 to 16 BAR | -10°C to 90°C |
