GO Solenoid Valve B25 1/4
Dimensions - GO Solenoid Valve B25 1/4

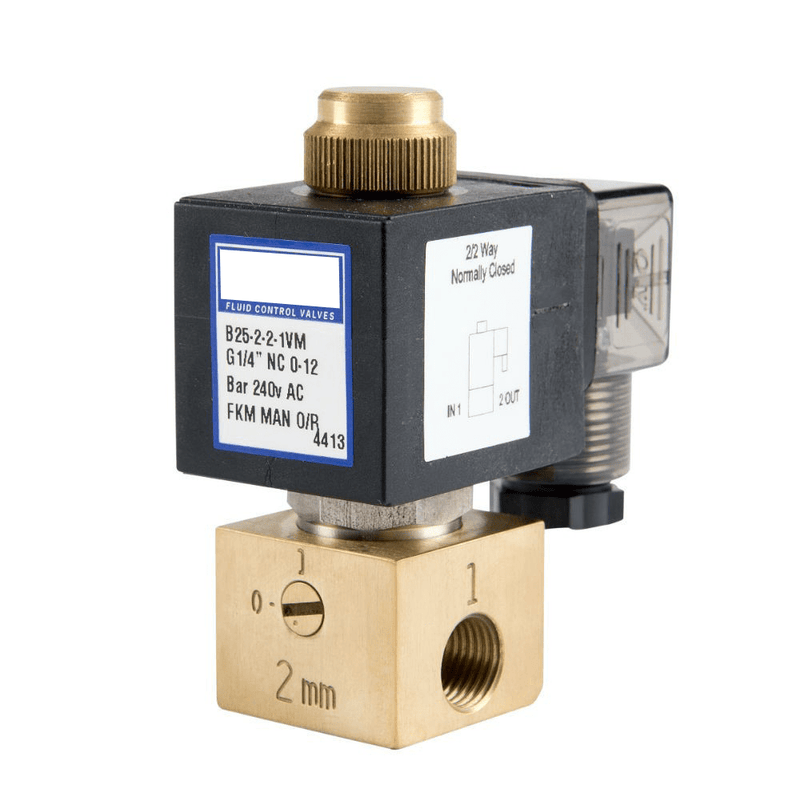

  • GO Solenoid Valve B25 1/4" Brass Direct Acting Normally Closed
  • Dimensions - GO Solenoid Valve B25 1/4" Brass Direct Acting Normally Closed
1 3

¼” ported 2 way Brass normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Machined Brass body, Stainless Steel Operator and Viton seals. Typical applications include general industry, vacuum and some chemicals.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
B25-2-2-*VM ¼” BSP 2 0.1 0 to 12 BAR -10°Ct o 100°C 0.5 SC-A2
10 Volt Amps
10 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

  • Size: 1/4" BSP only
  • Configuration - Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body: Brass
  • Seat: FKM
  • Pressure Range: 0 to 12 BAR
  • Media: Non-aggressive media such as Air / Water / Vacuum



    pagination here

GO Solenoid Valve B25 1/4" Brass Direct Acting Normally Closed

SKU: B25-2-2-7VM

GO Solenoid Valve B25 1/4" Brass Direct Acting Normally Closed

$132.00 AUD
$132.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

Brass 2 way 2 position normally closed direct acting solenoid valve.G1/4", 2mm orifice, 304 SS operator, copper shading ring, FKM seat, man o/ride.0-12 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class F insulation, 10 Watts, IP65 pro.

¼” ported 2 way Brass normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65). Machined Brass body, Stainless Steel Operator and Viton seals. Typical applications include general industry, vacuum and some chemicals.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
B25-2-2-*VM ¼” BSP 2 0.1 0 to 12 BAR -10°Ct o 100°C 0.5 SC-A2
10 Volt Amps
10 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

  • Size: 1/4" BSP only
  • Configuration - Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body: Brass
  • Seat: FKM
  • Pressure Range: 0 to 12 BAR
  • Media: Non-aggressive media such as Air / Water / Vacuum
