GO Solenoid Valve 3/8

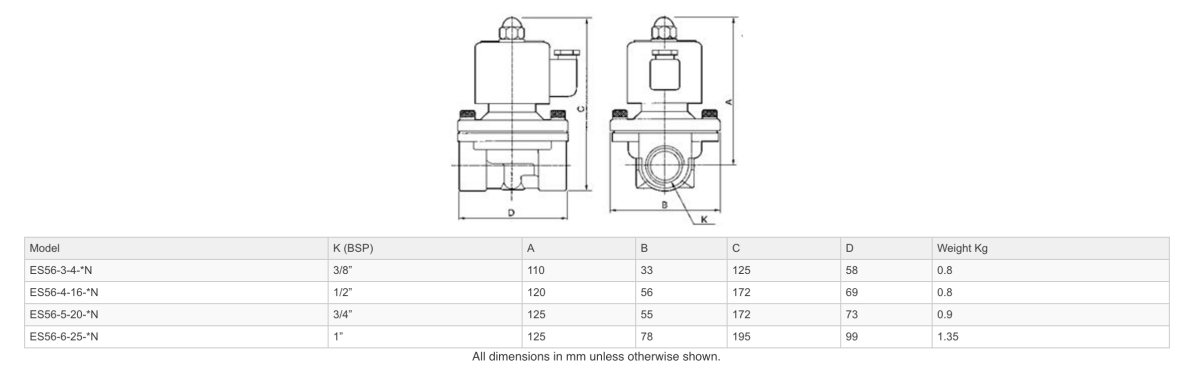

Dimensions - GO Solenoid Valve 3/8
Skip to product information
1 of 3

Typical Applications include tank drain and low pressure general industry applications.

A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain and low pressure general industry applications.



Model Port Size (BSP) Orifice ømm CV Pressure Air Pressure Liquid Media Temperature Coil Specifications
ES56-3-4-*N 3/8 4 0.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C SC-E16H
45 Volt Amps
30 Watts
Class H Insulation
100% ED
ES56-4-16-*N ½ 16 4.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-5-20-*N ¾ 20 9.3 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-6-25-*N 1 25 13.2 0 to7 Bar 0 to 5 Bar -10°C to 80°C



  • Size 3/8" to 1" BSP
  • Function Normally Open (power to close)
  • Valve Operation Coupled Diaphragm
  • Body 304 Stainless Steel
  • Seat NBR
  • Pressure Range 0 to 5 BAR
  • Media Non aggressive media
    pagination here

GO Solenoid Valve 3/8" to 1" ES56 Stainless General Purpose Zero Differential Normally Open Range

SKU: ES56-3-4

GO Solenoid Valve 3/8" to 1" ES56 Stainless General Purpose Zero Differential Normally Open Range

Regular price $165.00 AUD
Sale price $165.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Orifice

Other payment options

The Basics

A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.



Typical Applications include tank drain and low pressure general industry applications.

A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain and low pressure general industry applications.



Model Port Size (BSP) Orifice ømm CV Pressure Air Pressure Liquid Media Temperature Coil Specifications
ES56-3-4-*N 3/8 4 0.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C SC-E16H
45 Volt Amps
30 Watts
Class H Insulation
100% ED
ES56-4-16-*N ½ 16 4.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-5-20-*N ¾ 20 9.3 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-6-25-*N 1 25 13.2 0 to7 Bar 0 to 5 Bar -10°C to 80°C



  • Size 3/8" to 1" BSP
  • Function Normally Open (power to close)
  • Valve Operation Coupled Diaphragm
  • Body 304 Stainless Steel
  • Seat NBR
  • Pressure Range 0 to 5 BAR
  • Media Non aggressive media
