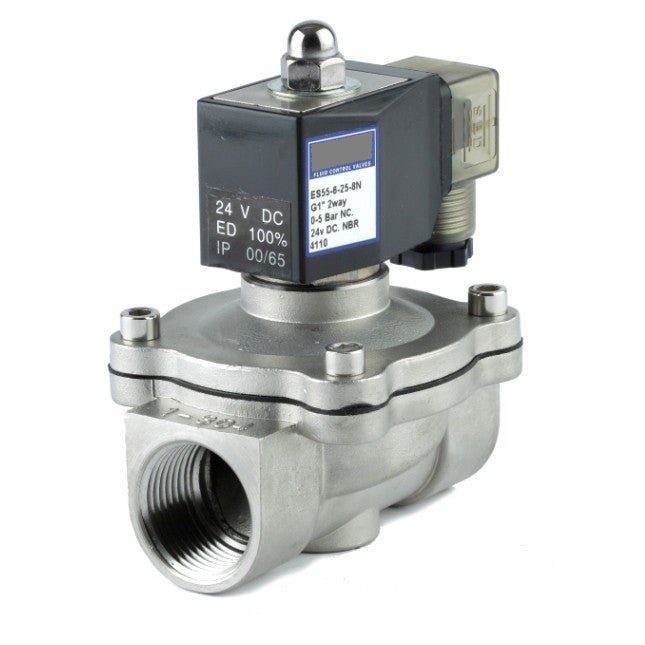

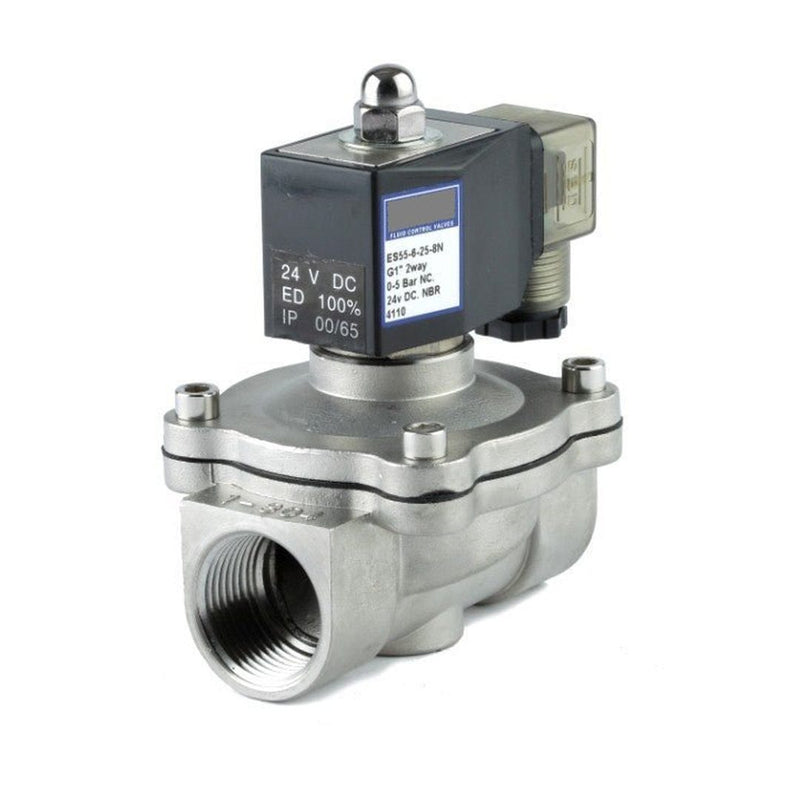

GO Solenoid Valve 3/8" to 2" ES55 Stainless General Purpose Differential Normally Closed Range

SKU: ES55-3-16

$132

GO Solenoid Valve 3/8" to 2" ES55 Stainless General Purpose Differential Normally Closed Range

A high flow normally closed (power to open) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.

Typical Applications include tank drain, vacuum and low pressure general industry applications.

  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body 304 Stainless Steel
  • Seat NBR
  • Pressure Range 0 to 5 BAR
  • Media Non aggressive media

          304 S.S 2 way 2 position normally closed zero differential solenoid valve.G3/8", 16mm orifice, 304 SS operator, copper shading ring, NBR seat.0-5 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation, 16 Watts, IP65 protection.

          Model Port Size (BSP) Orifice ømm CV Pressure Air Pressure Liquid Media Temperature Repair Kit Coil Spec
          ES55-3-16-*N 3/8 16 2.4 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-5-N Up to 1"
          SC-E16
          26 Volt Amps
          18 Watts
          Class F insulation
          ES55-4-16-*N 1/2 16 4.5 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-5-N
          ES55-5-20-*N 3/4 20 9.3 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-5-N
          ES55-6-25-*N 1 25 13.2 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-6-N
          ES55-7-35-*N 1 ¼ 35 26 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-7-N 1 1/4" to 2"
          SC-E20
          28 Volt Amps
          30 Watts
          Class F Insulation
          ES55-8-40-*N 1 ½ 40 26 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-8-N
          ES55-9-50-*N 2 50 48 0 to 7 Bar 0 to 5 Bar -10°C to 80°C RK-ES55-9-N
