GO Solenoid Valve 3/8
Construction - GO Solenoid Valve 3/8

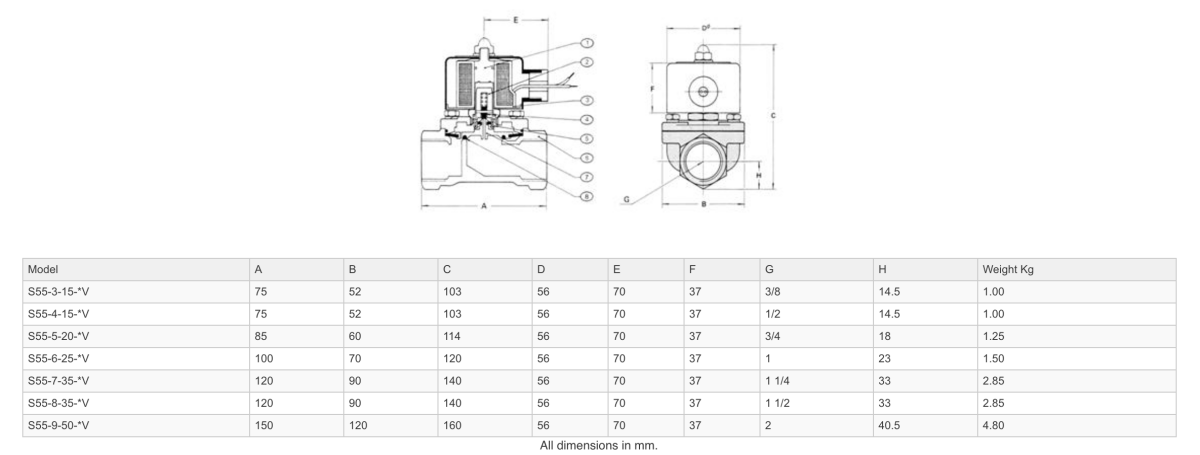

Dimensions - GO Solenoid Valve 3/8
  • GO Solenoid Valve 3/8" to 2" S55 316 Stainless Petrochemical Zero Differential Normally Closed Range
  • Construction - GO Solenoid Valve 3/8" to 2" S55 316 Stainless Petrochemical Zero Differential Normally Closed Range
  • Dimensions - GO Solenoid Valve 3/8" to 2" S55 316 Stainless Petrochemical Zero Differential Normally Closed Range
1 4

GO S55 316 Stainless Petrochemical Zero Differential Normally Closed Solenoid Valves

SKU: S55-3-15

GO S55 316 Stainless Petrochemical Zero Differential Normally Closed Solenoid Valves

$424.00 AUD
$424.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Orifice

Other payment options

The Basics

A high flow valve with a 316 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.





Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.



316 S.S 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
S55-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED
S55-4-15-*V ½ 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V
S55-5-20-*V ¾ 20 9.3 0 to 10 -10°C to 100°C RK-S55-5-V
S55-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C RK-S55-6-V
S55-7-35-*V 1 ¼ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-8-35-*V 1 ½ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-9-50-*V 2 50 48 0 to 7 -10°C to 100°C RK-S55-9-V



  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body 316 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 10
    pagination here

Shipping & Returns

Add text about your shipping policy

Shipping & Returns

Add text about your shipping policy

Warranty

Add text about your product warranty

Warranty

Add text about your product warranty

Secure Payment

Add text about your payment

Secure Payment

Add text about your payment

View full details
GO Solenoid Valve 3/8

GO S55 316 Stainless Petrochemical Zero Differential Normally Closed Solenoid Valves

From $424.00 AUD
From $424.00 AUD

Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.

The Basics

A high flow valve with a 316 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.





Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.



316 S.S 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
S55-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED
S55-4-15-*V ½ 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V
S55-5-20-*V ¾ 20 9.3 0 to 10 -10°C to 100°C RK-S55-5-V
S55-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C RK-S55-6-V
S55-7-35-*V 1 ¼ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-8-35-*V 1 ½ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-9-50-*V 2 50 48 0 to 7 -10°C to 100°C RK-S55-9-V



  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body 316 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 10
