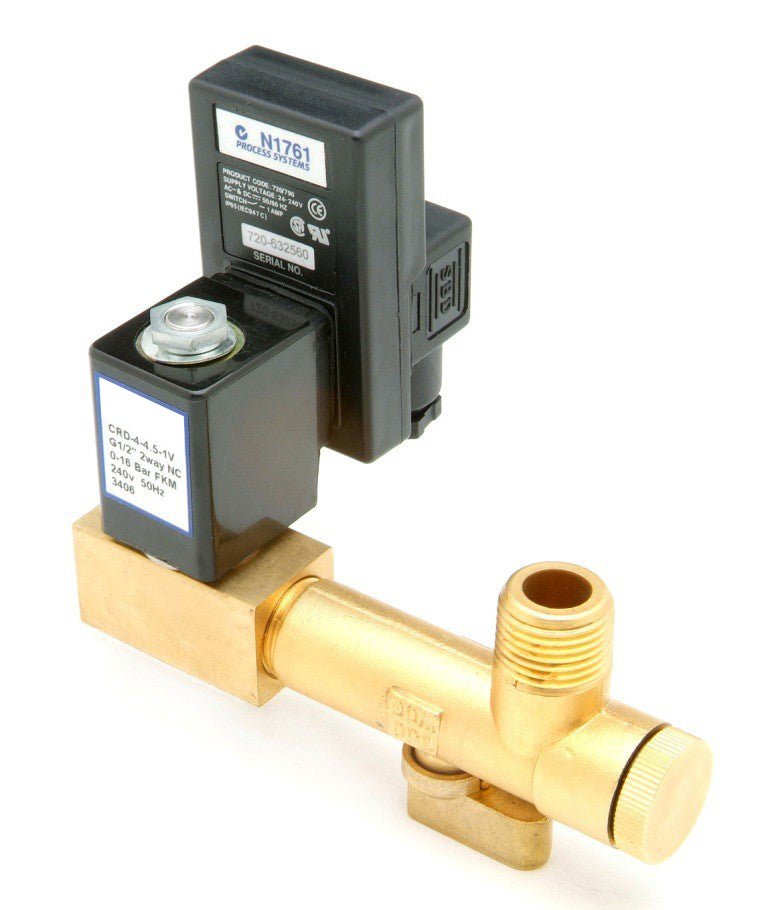

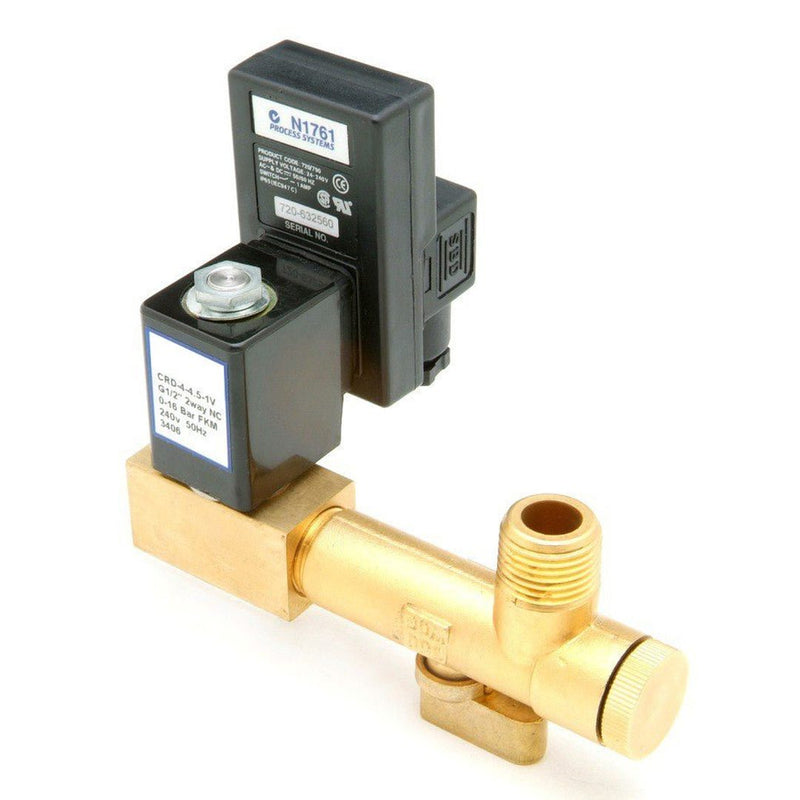

GO Solenoid Valve Condensate Drain Removal 1/2" Integrated Y Strainer + Ball Valve CRD Range
SKU: CRD-4-2.8
GO Solenoid Valve Condensate Drain Removal 1/2" Integrated Y Strainer + Ball Valve CRD Range
Value & Timer combination for condensate removal from air systems. Integral Isolating Ball Valve and Y Strainer. 0.5 - 10 Secs On, 1 - 45 Mins Off, Adjustable
The condensate removal drain eliminates the risk of human error by providing a regular controlled system of draining – on time, every time - automatically. The analogue timer is programmable from 0.5 to 10 seconds on and 0 to 45 minutes off. All come standard with isolating ball valve, Y strainer for easy cleaning and coil and DIN plug (IP65).
Suitable for draining ring mains, filters, separators, after coolers, dryers, receivers, drip legs and other compressed air systems.
- Size 1/2" BSP only
- Function Normally Closed (power to open)
- Valve Operation Direct Acting
- Body Brass
- Seat FKM
- Pressure Range 0 to 16 BAR
- Media Nonagressive media
| Model | Port Size (BSP) | Orifice ømm | CV | Media Pressure | Media Temperature | Weight Kg | Coil Specifications |
|---|---|---|---|---|---|---|---|
| CRD-4-2.8-*VY | 1/2 | 2.8 | 0.19 | 0 to 40 BAR | -10°C to 100°C | 0.85 |
SC-CRD 22 Volt Amps 20 Watts Class H Insulation 100% ED |
| CRD-4-3.5-*VY | 1/2 | 3.5 | 0.27 | 0 to 16 BAR | -10°C to 100°C | 0.85 | |
| CRD-4-4.5-*VY | 1/2 | 4.5 | 0.50 | 0 to 16 BAR | -10°C to 100°C | 0.85 |
Please note the 3.5mm model has an integrated Y strainer with the solenoid. All others models are separable.
