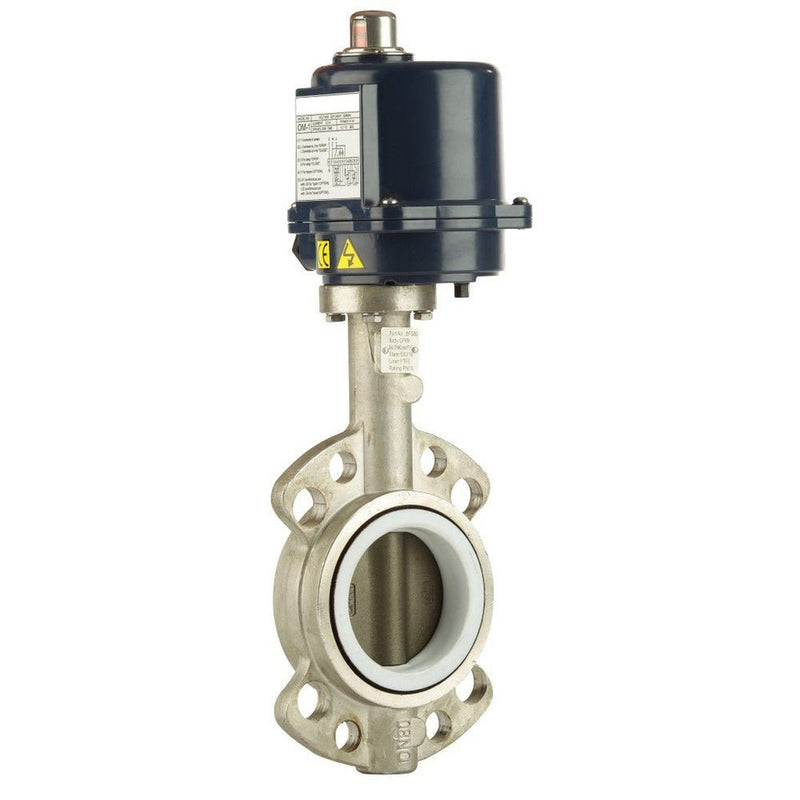

GO Stainless Steel Electric Butterfly Valve PTFE 24v DC
SKU: BFS50-E8-TGO Stainless Steel Electric Butterfly Valve PTFE 24v DC
Other payment options
GO Stainless Steel Electric Butterfly Valve PTFE 24v DC
GO Stainless Steel Electric Butterfly Valve PTFE 24v DC
Overview
The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality IP67 electric actuator which includes visual indicator, manual override and extra limit switches (available in all voltages). The unique bonded catridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.
Specifications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature |
|---|---|---|---|---|
| BFS50-E*-T | 50 | 0M-1 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS65-E*-T | 65 | 0M-1 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS80-E*-T | 80 | 0M-A | Vacuum to 10 BAR | -20°C to 120°C |
| BFS100-E*-T | 100 | 0M-2 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS125-E*-T | 125 | 0M-3 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS150-E*-T | 150 | 0M-4 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS200-E*-T | 200 | 0M-4 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS250-E*-T | 250 | 0M-6 | Vacuum to 10 BAR | -20°C to 120°C |
| BFS300-E*-T | 300 | 0M-7 | Vacuum to 10 BAR | -20°C to 120°C |
