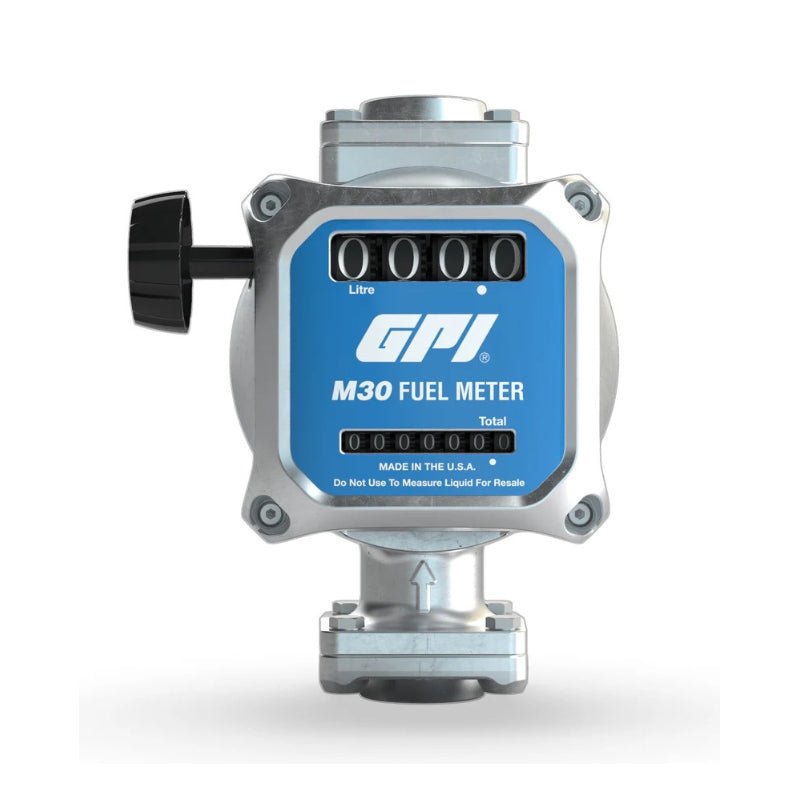

METER GPI M30-L8B 3 Digit Mechanical 25mm FF 9-114lpm Litre Display

SKU 165100-06

$389.95

Tax included. Shipping calculated at checkout.

Connection 1" BSP

Quantity

Contact for pricing

No stock main warehouse, contact for lead time

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

The GPI M30 mechanical fuel meter is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in 5 to 30 GPM (19 to 114 L/min) flow range.

This meter translates flow data from a nutating disk into calibrated units. Pump and meter combinations available.

The M30 easily attaches to the new modular fuel transfer pumps (G20 and V25) with the Quick-Fit modular feature (simple four-bolt connections). This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain.

Features

Easily attaches to the G20 and V25 fuel transfer pumps, litre register.

Features simple four-bolt connections that allow the meter to be mounted in multiple directions

Unsurpassed accuracy. Within a +/-2% accuracy across a flow range from 9 to 114 L/min

Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks

Twist knob reset; batch total and cumulative total display

Specifications

Flowrate: 19 to 114 L/min
Type: Nutating Disc with Magnetic Drive
Accuracy: ± 2.0% of reading (Accuracy is factory calibrated using diesel fuel)
Repeatability: ± 0.5%
Pressure Rating: 50 PSI (3.4 BAR)
Operating Temperature Range: -29°C TO 52°C
Inlet Connection 1"NPT/1" BSPP
Outlet Connection 1"NPT/1" BSPP
Meter Housing: Aluminum
Wetted Parts: Nutator Assembly: PBT (Polybutylene Terephthalate), Stainless Steel | Seals: NBR (Nitrile Butadiene Rubber) | Mag-Drive: Acetal, Stainless Steel, Neodymium (Nickel Plated)
