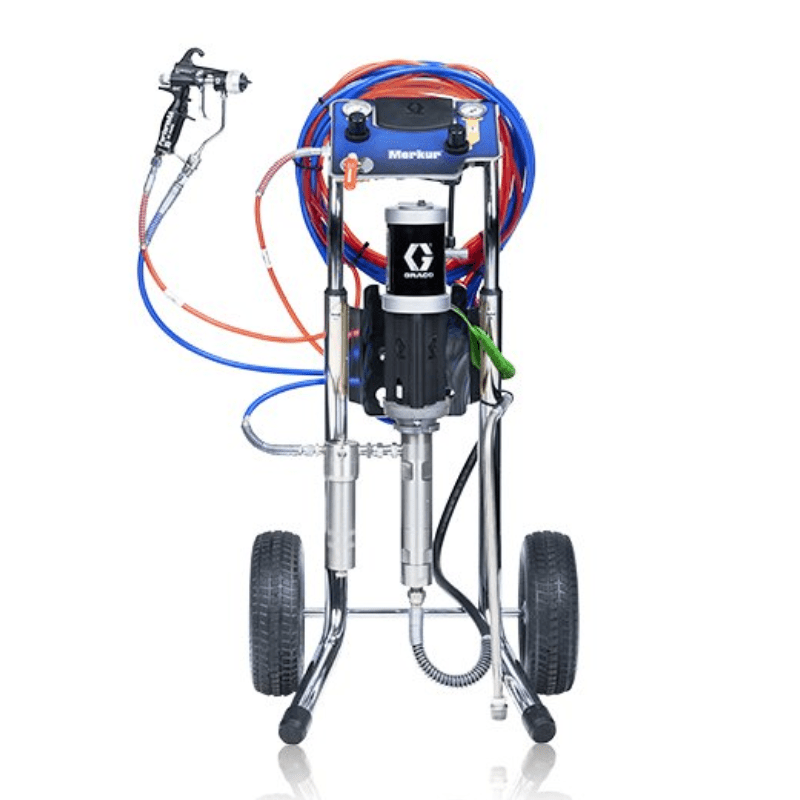

GRACO Merkur 10:1 Cart Mount Pump Non-Heated
SKU: G10C01GRACO Merkur 10:1 Cart Mount Pump Non-Heated
Other payment options
Delivery & Shipping
GRACO Merkur 10:1 Cart Mount Pump Non-Heated
Features
Graco 10:1 Merkur Pump Non-Heated Cart Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- External valve access allows for easy servicing and online replacement to minimize downtime
- Low air consumption for increased efficiency
Specifications
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.476 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.76 |
| INCLUDES | Pump and Gun Air Controls |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 1.2 |
| MAXIMUM FLOW RATE (L/MIN) | 4.5 |
| MAXIMUM WORKING PRESSURE (BAR) | 69 |
| MAXIMUM WORKING PRESSURE (KPA) | 6900 |
| MAXIMUM WORKING PRESSURE (PSI) | 1000 |
| SPRAYER TYPE | High Pressure |
| WEIGHT (KG) | 30.8 |
| WEIGHT (LB) | 68 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| SPRAY TYPE | No Applicator |
| MOUNT TYPE | Cart Mount |
| MODEL | Merkur |
| TYPE | Bare Package |
| PRODUCT TYPE | Bare Package |
| TECHNOLOGY TYPE | Airless |
| GUN INCLUDED | 0 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PUMP TYPE | Pneumatic Piston Pump |
| GUN TYPE | No Applicator |
| GUN MODEL | No Applicator |
| PUMP RATIO | 10:1 |
| GUN TECHNOLOGY | Bare Package |
