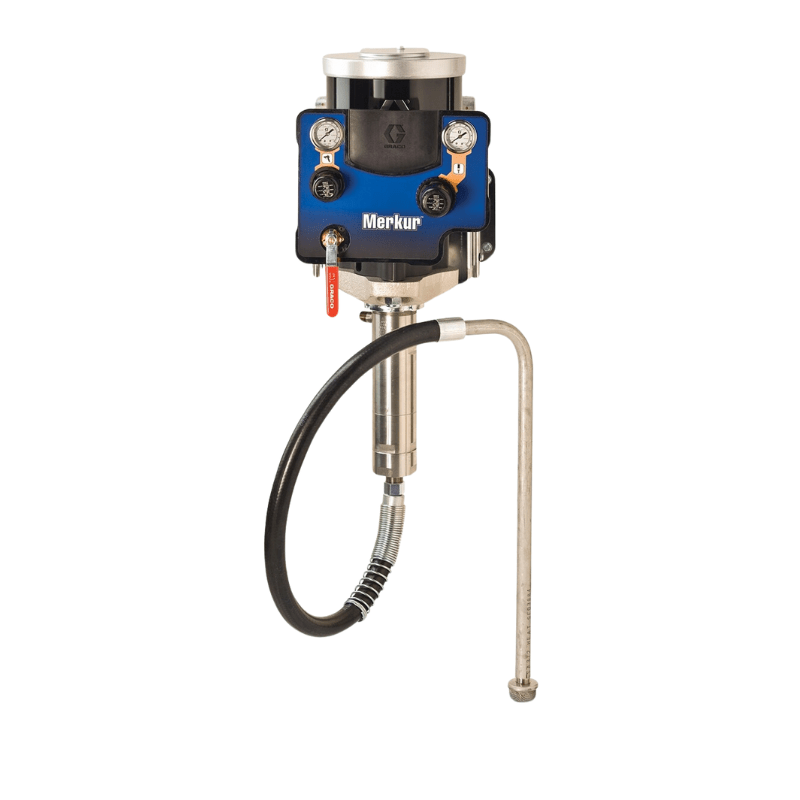

GRACO Merkur 15:1 Wall Mount 2.4 gpm Fluid Flow
SKU G15W51
$10,440.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 15:1 Merkur 2.4 gpm Fluid Flow Wall Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| FLUID INLET SIZE (CM) | 2.54 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.905 |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET SIZE (MM) | 19.05 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.476 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.76 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 2.4 |
| MAXIMUM FLOW RATE (L/MIN) | 9 |
| MAXIMUM WORKING PRESSURE (BAR) | 103 |
| MAXIMUM WORKING PRESSURE (KPA) | 10300 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| SPRAYER TYPE | High Pressure |
| WEIGHT (KG) | 33 |
| WEIGHT (LB) | 73 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| SPRAY TYPE | No Applicator |
| MOUNT TYPE | Wall Mount |
| MODEL | Merkur |
| TYPE | Bare Package |
| PRODUCT TYPE | Bare Package |
| TECHNOLOGY TYPE | Airless |
| GUN INCLUDED | 0 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PUMP TYPE | Pneumatic Piston Pump |
| GUN TYPE | No Applicator |
| GUN MODEL | No Applicator |
| PUMP RATIO | 15:1 |
| GUN TECHNOLOGY | Bare Package |
Manual
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
