Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

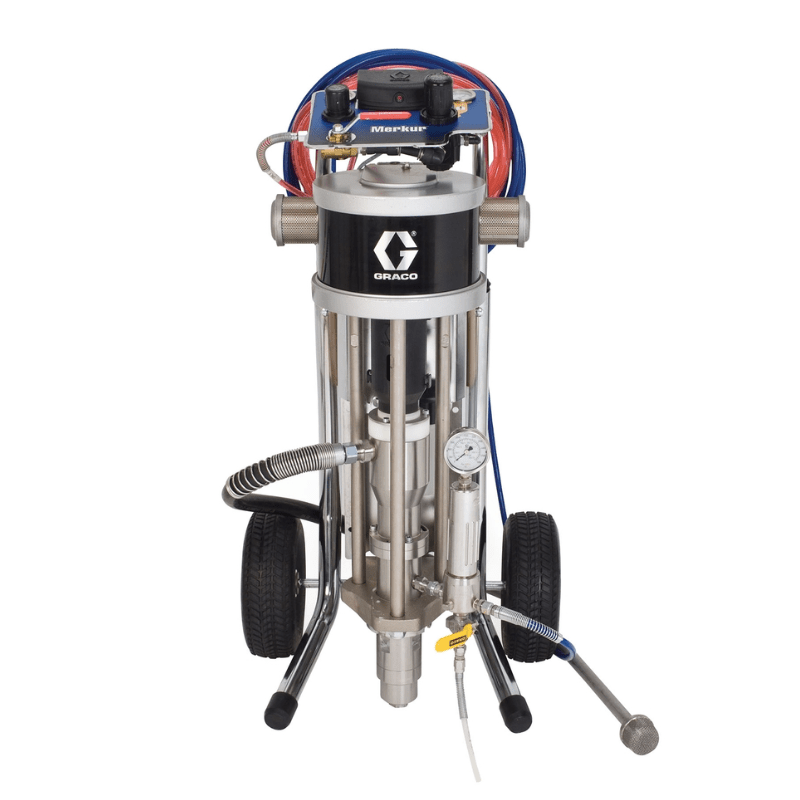

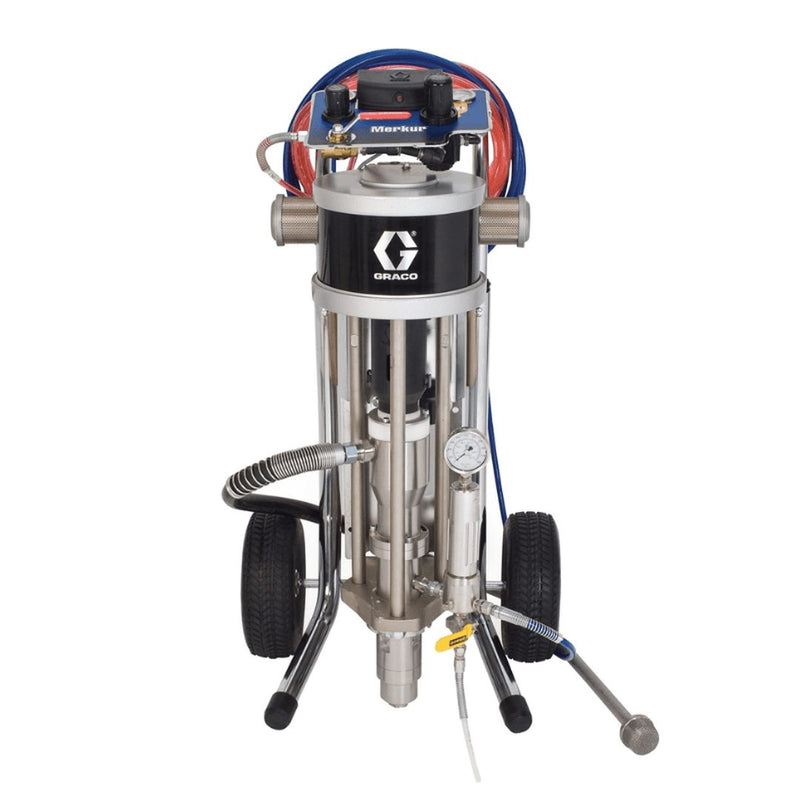

GRACO Merkur 15:1 Cart Mount Bellows Electrostatic
SKU G15B83
$31,020.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 15:1 Merkur Bellows Electrostatic Cart Mount
Overview
Features
Features
Specifications
| APPLICATION | Supply |
|---|---|
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating |
| FLUID INLET SIZE (CM) | 2.5400 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4000 |
| FLUID INLET THREAD GENDER | Male |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.905 |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET SIZE (MM) | 19.05 |
| FLUID OUTLET THREAD GENDER | Male |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | Pump and Gun Air Controls, Drain Valves, Fluid Filter, DataTrak, V-Packing |
| MATERIAL | Stainless Steel |
| MAXIMUM FLOW RATE (GPM) | 2.4 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 120 |
| MAXIMUM WORKING PRESSURE (BAR) | 103 |
| MAXIMUM WORKING PRESSURE (KPA) | 10300 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MOTOR TYPE | Pneumatic |
| MOUNT LOCATION | Cart Mount |
| NUMBER OF PIECES | 11 |
| SERIES | Bellows |
| PUMP RATIO | 15:1 |
| PUMP TYPE | Pneumatic Piston Pump |
| WETTED MATERIAL | Stainless Steel |
| TYPE | Pneumatic Piston Pump |
| GUN TYPE | Electrostatic |
| GUN MODEL | Pro Xp 85 kV Smart |
| MOUNT TYPE | Cart Mount |
| PRODUCT TYPE | Spray Package |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| GUN TECHNOLOGY | Electrostatic |
| MODEL | Merkur |
Manual
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Manual High Pressure Fluid Line Ball Valve 306861EN-ZAF
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
