Product details
Built for the work it does.

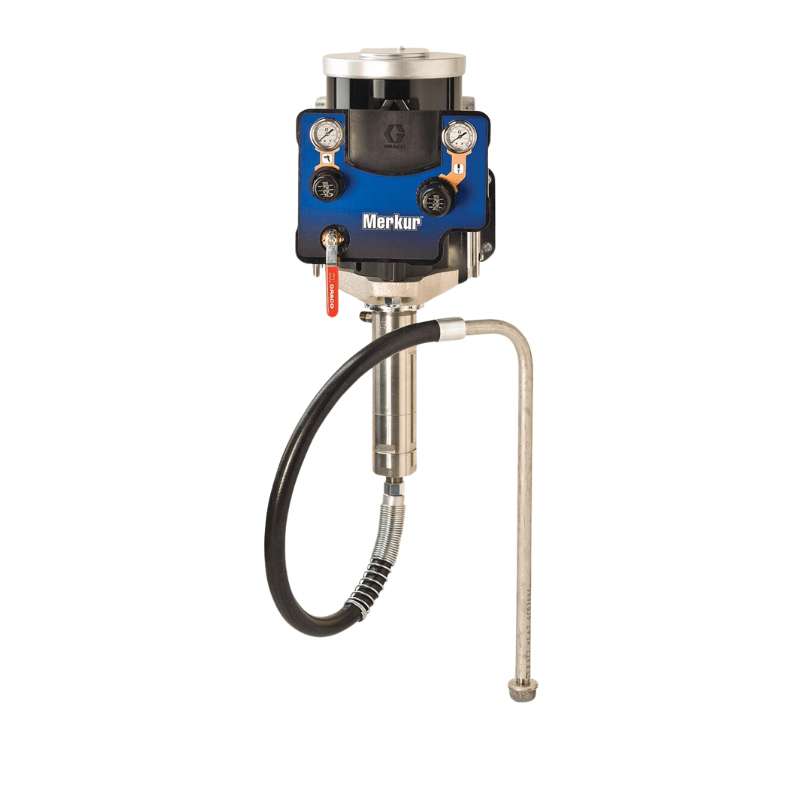

Graco 15:1 Merkur Fluid Flow Wall Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| FLUID INLET SIZE (CM) | 1.27 |
| FLUID INLET SIZE (IN) | 1/2 |
| FLUID INLET SIZE (MM) | 12.7 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.476 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.76 |
| INCLUDES | Pump and Gun Air Controls |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 0.4 |
| MAXIMUM FLOW RATE (L/MIN) | 1.5 |
| MAXIMUM WORKING PRESSURE (BAR) | 103 |
| MAXIMUM WORKING PRESSURE (KPA) | 10300 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| SPRAYER TYPE | High Pressure |
| WEIGHT (KG) | 12.25 |
| WEIGHT (LB) | 27 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| SPRAY TYPE | No Applicator |
| MOUNT TYPE | Wall Mount |
| MODEL | Merkur |
| TYPE | Bare Package |
| PRODUCT TYPE | Bare Package |
| TECHNOLOGY TYPE | Airless |
| GUN INCLUDED | 0 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PUMP TYPE | Pneumatic Piston Pump |
| GUN TYPE | No Applicator |
| GUN MODEL | No Applicator |
| PUMP RATIO | 15:1 |
| GUN TECHNOLOGY | Bare Package |
Manual
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
