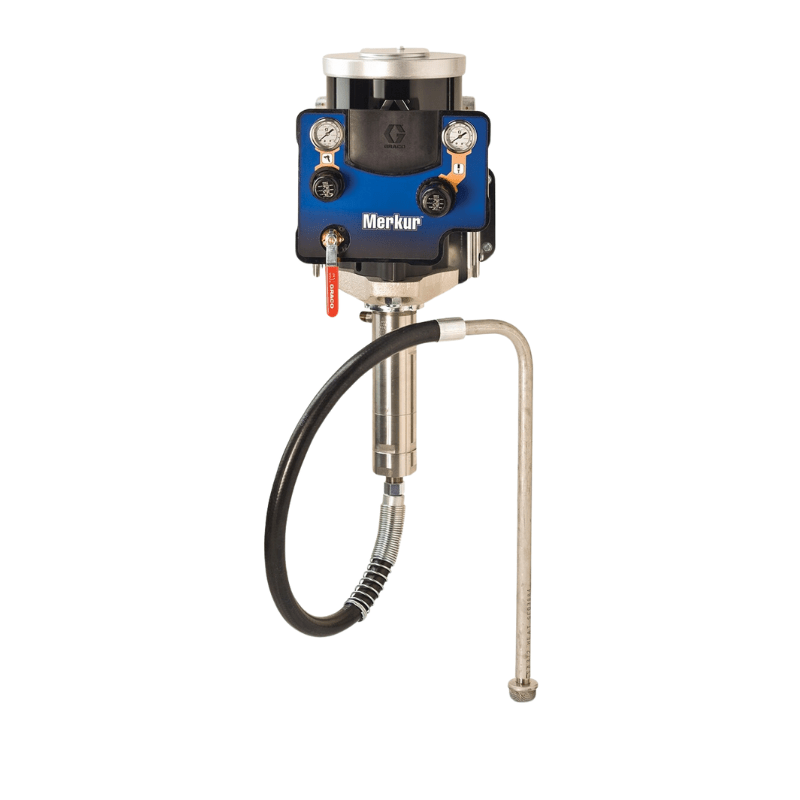

GRACO Merkur 15:1 Wall Mount Pump/Gun Air Controls

SKU: G15W01

GRACO Merkur 15:1 Wall Mount Pump/Gun Air Controls

$6,248.00 AUD
$6,248.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

View full details
GRACO Merkur 15:1 Wall Mount Pump/Gun Air Controls - GO Industrial - G15W01

GRACO Merkur 15:1 Wall Mount Pump/Gun Air Controls

From $5,610.00 AUD
From $5,610.00 AUD
Save $0
Sold out

Features

  • Highest technology air motor on the market
  • Proven to outperform and outlast other pumps in their class
  • Low air consumption for increased efficiency
  • Muffler provides low operating noise levels
  • External valve access allows for easy servicing and online replacement to minimise downtime
  • Operator control panel located at operator height for easy setting and monitoring
  • Throat seal and rod enclosure protects pumped material and wet cup from contamination, but can be easily removed to monitor and service

    • Graco 15:1 Merkur Pump/Gun Air Controls Wall Mount

    Overview

    Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high-quality finishes for all of your demanding applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    COMPATIBLE MATERIAL Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
    FLUID INLET SIZE (CM) 1.27
    FLUID INLET SIZE (IN) 1/2
    FLUID INLET SIZE (MM) 12.7
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (CM) 0.9525
    FLUID OUTLET SIZE (IN) 3/8
    FLUID OUTLET SIZE (MM) 9.525
    FLUID OUTLET THREAD TYPE NPT
    HOSE INLET DIAMETER (CM) 0.476
    HOSE INLET DIAMETER (IN) 3/16
    HOSE INLET DIAMETER (MM) 4.76
    INCLUDES Pump and Gun Air Controls
    MAXIMUM AIR INLET PRESSURE (BAR) 7
    MAXIMUM AIR INLET PRESSURE (KPA) 700
    MAXIMUM AIR INLET PRESSURE (PSI) 100
    MAXIMUM FLOW RATE (GPM) 0.4
    MAXIMUM FLOW RATE (L/MIN) 1.5
    MAXIMUM WORKING PRESSURE (BAR) 103
    MAXIMUM WORKING PRESSURE (KPA) 10300
    MAXIMUM WORKING PRESSURE (PSI) 1500
    SPRAYER TYPE High Pressure
    WEIGHT (KG) 12.25
    WEIGHT (LB) 27
    WETTED MATERIAL Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon
    SPRAY TYPE No Applicator
    MOUNT TYPE Wall Mount
    MODEL Merkur
    TYPE Bare Package
    PRODUCT TYPE Bare Package
    TECHNOLOGY TYPE Airless
    GUN INCLUDED 0
    POWER SOURCE Air
    PRESSURE TYPE High Pressure
    PUMP TYPE Pneumatic Piston Pump
    GUN TYPE No Applicator
    GUN MODEL No Applicator
    PUMP RATIO 15:1
    GUN TECHNOLOGY Bare Package

      Features

    • Highest technology air motor on the market
    • Proven to outperform and outlast other pumps in their class
    • Low air consumption for increased efficiency
    • Muffler provides low operating noise levels
    • External valve access allows for easy servicing and online replacement to minimise downtime
    • Operator control panel located at operator height for easy setting and monitoring
    • Throat seal and rod enclosure protects pumped material and wet cup from contamination, but can be easily removed to monitor and service
