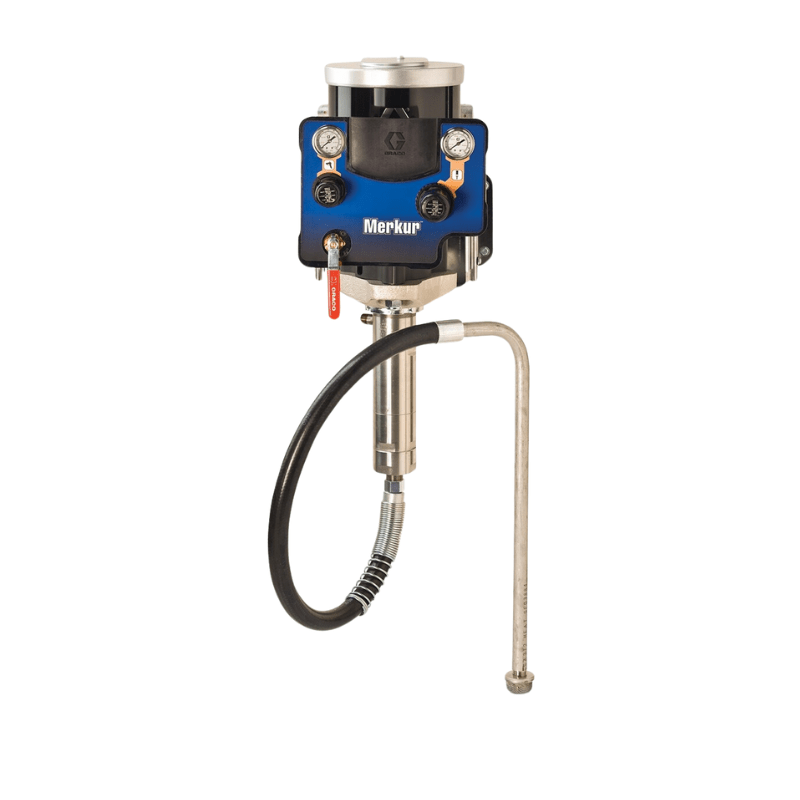

GRACO Merkur 23:1 Wall Mount Fluid Flow Electrostatic Spray Package
SKU G23W13
$28,820.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 23:1 Merkur Electrostatic Spray Package Fluid Flow Wall Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.6 |
| MAXIMUM WORKING PRESSURE (BAR) | 159 |
| MAXIMUM WORKING PRESSURE (KPA) | 15900 |
| MAXIMUM WORKING PRESSURE (PSI) | 2300 |
| MODEL | Merkur |
| MOTOR TYPE | Pneumatic |
| NUMBER OF GUNS | 1 |
| POWER SOURCE | Air |
| PUMP TYPE | Pneumatic Piston Pump |
| WEIGHT (KG) | 33.6 |
| WEIGHT (LB) | 74 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene |
| SPRAY TYPE | Electrostatic |
| TYPE | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 15.9 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| PUMP RATIO | 23:1 |
| GUN TECHNOLOGY | Electrostatic |
| GUN TYPE | Electrostatic |
| GUN INCLUDED | 1 |
| PRODUCT TYPE | Spray Package |
| GUN MODEL | Pro Xp 85 kV Smart |
| TECHNOLOGY TYPE | Air-Assisted |
Manual
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
