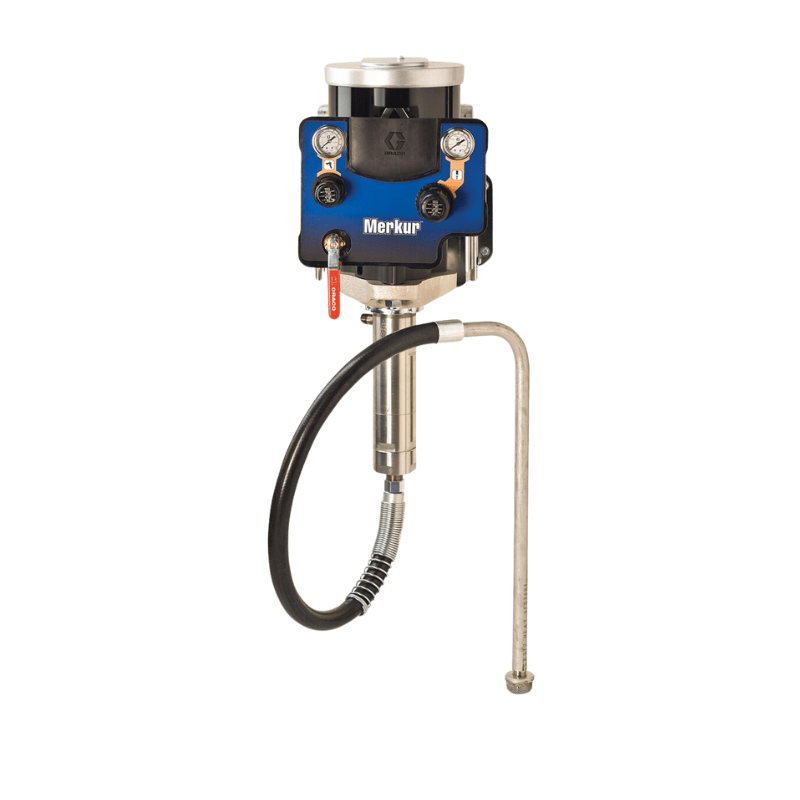

GRACO Merkur 24:1 Wall Mount Fluid Flow Pump
SKU G24W01
$12,100.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 24:1 Merkur Pump Fluid Flow Wall Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| FLUID INLET SIZE (CM) | 2.54 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.905 |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET SIZE (MM) | 19.05 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.476 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.76 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 2.4 |
| MAXIMUM FLOW RATE (L/MIN) | 9 |
| MAXIMUM WORKING PRESSURE (BAR) | 165 |
| MAXIMUM WORKING PRESSURE (KPA) | 16500 |
| MAXIMUM WORKING PRESSURE (PSI) | 2400 |
| SPRAYER TYPE | High Pressure |
| WEIGHT (KG) | 35 |
| WEIGHT (LB) | 76 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| SPRAY TYPE | No Applicator |
| MOUNT TYPE | Wall Mount |
| MODEL | Merkur |
| TYPE | Bare Package |
| PRODUCT TYPE | Bare Package |
| TECHNOLOGY TYPE | Airless |
| GUN INCLUDED | 0 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PUMP TYPE | Pneumatic Piston Pump |
| GUN TYPE | No Applicator |
| GUN MODEL | No Applicator |
| PUMP RATIO | 24:1 |
| GUN TECHNOLOGY | Bare Package |
