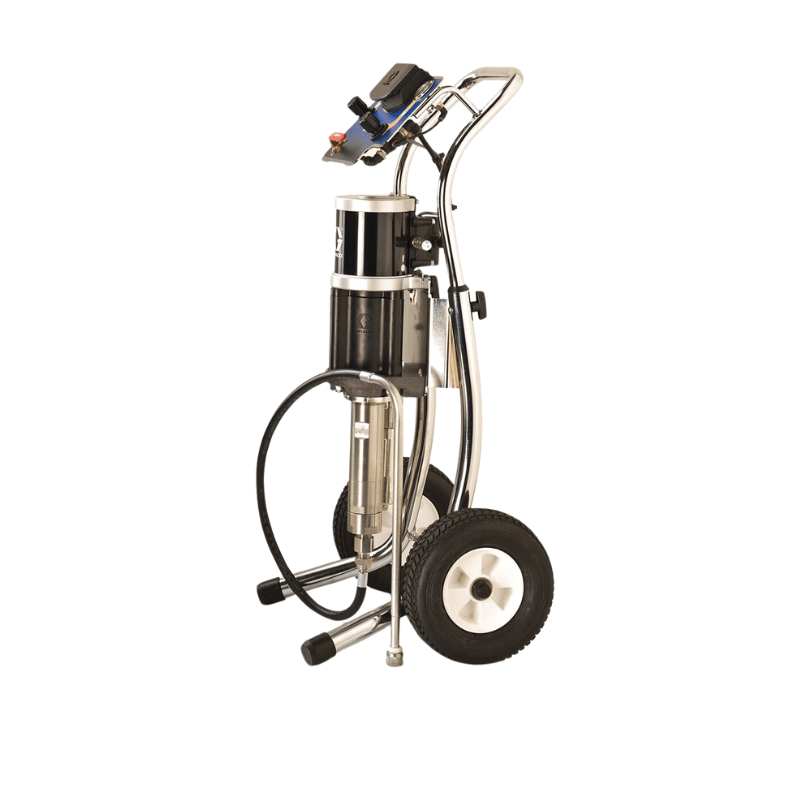

Graco 30:1 Merkur Airless Package Fluid Flow Cart Mount
  • Graco 30:1 Merkur Airless Package Fluid Flow Cart Mount
1 1

Technical Specifications

CONVERTIBLE Non-Convertible
FLUID INLET SIZE (IN) 1/2
FLUID INLET SIZE (MM) 12.7
FLUID INLET THREAD TYPE NPT
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET SIZE (MM) 9.525
FLUID OUTLET THREAD TYPE NPT
HOSE INLET DIAMETER (CM) 0.5
HOSE INLET DIAMETER (IN) 3/16
HOSE INLET DIAMETER (MM) 5
INCLUDES 仅适用于泵的空气控制器, ポンプ用エア制御, Pump Only Air Controls, Controles bombeo solamente de aire, 펌프 에어 제어장치, 喷枪软管, ガンホース, Gun Hose, manguera de la pistola, 건 호스, 吸料软管, 吸引ホース, Suction Hose, manguera de aspiración, 흡입 호스, 流体过滤器, 液体フィルター, Fluid Filter, filtro de fluido, 유체 필터
MAXIMUM FLOW RATE (GPM) 0.40
MAXIMUM FLOW RATE (L/MIN) 1.5
MAXIMUM HOSE LENGTH (FT) 25
MAXIMUM HOSE LENGTH (M) 7.5
MAXIMUM WORKING PRESSURE (PSI) 3000
MAXIMUM WORKING PRESSURE (KPA) 20700
POWER SOURCE Air
MAXIMUM WORKING PRESSURE (MPA) 20.7
MODEL Merkur
MAXIMUM WORKING PRESSURE (BAR) 207
WEIGHT (KG) 33
WEIGHT (LB) 73
PUMP TYPE Pneumatic Piston Pump
TYPE Airless Spray Package
SPRAY TYPE Airless
MOTOR TYPE Pneumatic
WETTED MATERIAL Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Aluminum, Acetal, Polyethylene, Nylon, Polypropylene, Polyurethane, Solvent-Resistant O-Ring
NUMBER OF GUNS 1
PRESSURE TYPE High Pressure
MOUNT TYPE Cart Mount
GUN TECHNOLOGY Airless
GUN TYPE Airless
GUN INCLUDED 1
GUN MODEL XTR5+
PUMP RATIO 30:1
PRODUCT TYPE Spray Package
TECHNOLOGY TYPE Airless
  • Proven to outperform and outlast other pumps in their class
  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • External valve access allows for easy servicing and online replacement to minimize downtime

Graco 30:1 Merkur Airless Package Fluid Flow Cart Mount

SKU: G30C37

Graco 30:1 Merkur Airless Package Fluid Flow Cart Mount

$10,725.00 AUD
$10,725.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Technical Specifications

CONVERTIBLE Non-Convertible
FLUID INLET SIZE (IN) 1/2
FLUID INLET SIZE (MM) 12.7
FLUID INLET THREAD TYPE NPT
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET SIZE (MM) 9.525
FLUID OUTLET THREAD TYPE NPT
HOSE INLET DIAMETER (CM) 0.5
HOSE INLET DIAMETER (IN) 3/16
HOSE INLET DIAMETER (MM) 5
INCLUDES 仅适用于泵的空气控制器, ポンプ用エア制御, Pump Only Air Controls, Controles bombeo solamente de aire, 펌프 에어 제어장치, 喷枪软管, ガンホース, Gun Hose, manguera de la pistola, 건 호스, 吸料软管, 吸引ホース, Suction Hose, manguera de aspiración, 흡입 호스, 流体过滤器, 液体フィルター, Fluid Filter, filtro de fluido, 유체 필터
MAXIMUM FLOW RATE (GPM) 0.40
MAXIMUM FLOW RATE (L/MIN) 1.5
MAXIMUM HOSE LENGTH (FT) 25
MAXIMUM HOSE LENGTH (M) 7.5
MAXIMUM WORKING PRESSURE (PSI) 3000
MAXIMUM WORKING PRESSURE (KPA) 20700
POWER SOURCE Air
MAXIMUM WORKING PRESSURE (MPA) 20.7
MODEL Merkur
MAXIMUM WORKING PRESSURE (BAR) 207
WEIGHT (KG) 33
WEIGHT (LB) 73
PUMP TYPE Pneumatic Piston Pump
TYPE Airless Spray Package
SPRAY TYPE Airless
MOTOR TYPE Pneumatic
WETTED MATERIAL Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Aluminum, Acetal, Polyethylene, Nylon, Polypropylene, Polyurethane, Solvent-Resistant O-Ring
NUMBER OF GUNS 1
PRESSURE TYPE High Pressure
MOUNT TYPE Cart Mount
GUN TECHNOLOGY Airless
GUN TYPE Airless
GUN INCLUDED 1
GUN MODEL XTR5+
PUMP RATIO 30:1
PRODUCT TYPE Spray Package
TECHNOLOGY TYPE Airless
  • Proven to outperform and outlast other pumps in their class
  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • External valve access allows for easy servicing and online replacement to minimize downtime
