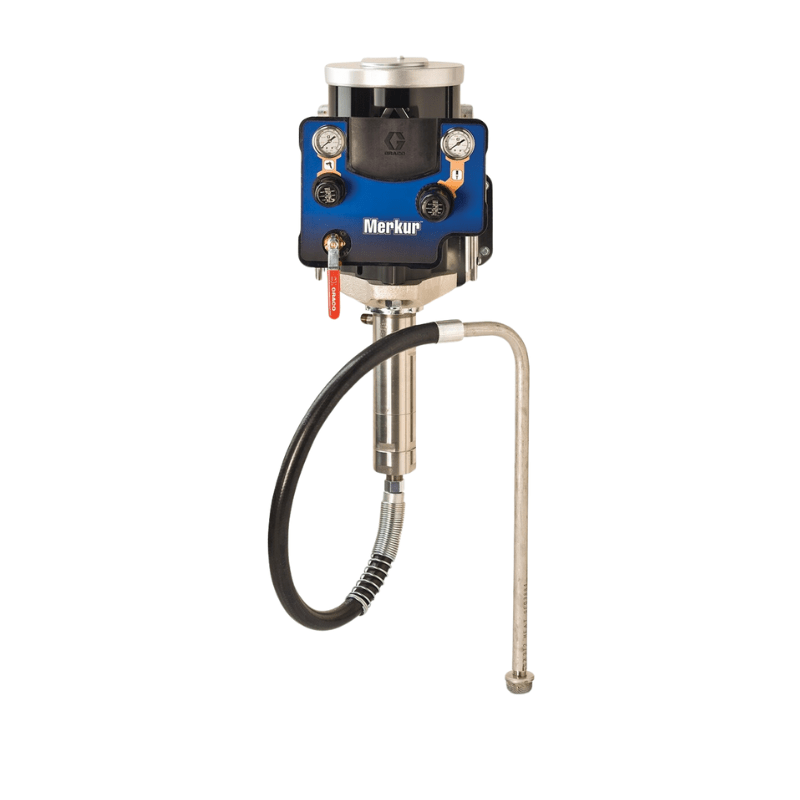

GRACO Merkur 30:1 Wall Mount Electrostatic Package
SKU G30W77
$29,800.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 30:1 Merkur Electrostatic Package Wall Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter |
| MAXIMUM FLOW RATE (GPM) | 1.2 |
| MAXIMUM FLOW RATE (L/MIN) | 4.54 |
| MAXIMUM HOSE LENGTH (CM) | 762 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.6 |
| MAXIMUM HOSE LENGTH (MM) | 7620 |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 210.92 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MODEL | Merkur |
| MOTOR TYPE | Pneumatic |
| NUMBER OF GUNS | 1 |
| POWER SOURCE | Air |
| PUMP TYPE | Pneumatic Piston Pump |
| WEIGHT (KG) | 32.21 |
| WEIGHT (LB) | 71 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene |
| SPRAY TYPE | Electrostatic |
| TYPE | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| PUMP RATIO | 30:1 |
| GUN TECHNOLOGY | Electrostatic |
| GUN TYPE | Electrostatic |
| GUN INCLUDED | 1 |
| PRODUCT TYPE | Spray Package |
| GUN MODEL | Pro Xp 85 kV Smart |
| TECHNOLOGY TYPE | Air-Assisted |
Manual
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
