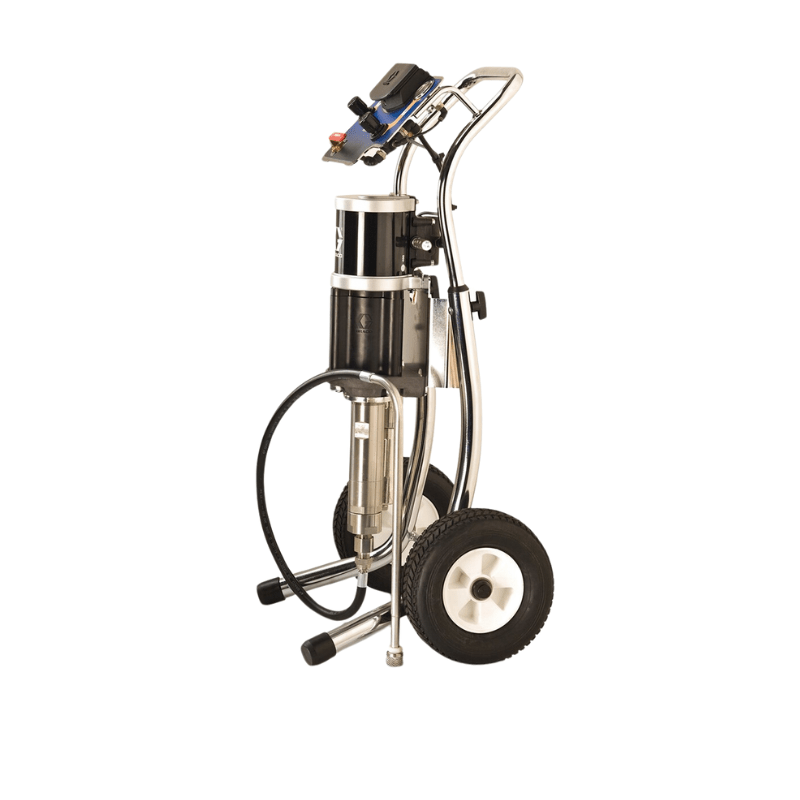

GRACO Merkur 30:1 Cart Mount Fluid Flow Pump 1.2 GPM 4.5 LPM
SKU G30C51
$10,150.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 30:1 Merkur Pump Fluid Flow Cart Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Cart |
| HOSE INLET DIAMETER (CM) | 0.47625 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.7625 |
| INCLUDES | Pump Only Air Controls, Suction Hose |
| MAXIMUM FLOW RATE (GPM) | 1.2 |
| MAXIMUM FLOW RATE (L/MIN) | 4.5 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.5 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| MODEL | Merkur |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| WEIGHT (KG) | 45 |
| WEIGHT (LB) | 98 |
| SERIES | Merkur 30:1 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Bare Package |
| MOTOR TYPE | Pneumatic |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 210.9 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| NUMBER OF GUNS | 0 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Cart Mount |
| GUN TECHNOLOGY | Bare Package |
| GUN TYPE | No Applicator |
| GUN INCLUDED | 0 |
| GUN MODEL | No Applicator |
| PUMP RATIO | 30:1 |
| PRODUCT TYPE | Bare Package |
Manual
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
- Graco XTR5 XTR7 Manual 3A7469EN-D
