Enquire For Price
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- External valve access allows for easy servicing and online replacement to minimize downtime
Technical Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.5 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 5 |
| MAXIMUM FLOW RATE (GPM) | 1.2 |
| MAXIMUM FLOW RATE (L/MIN) | 4.5 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.5 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| MODEL | Merkur |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| WEIGHT (KG) | 43 |
| WEIGHT (LB) | 94 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Bare Package |
| MOTOR TYPE | Pneumatic |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| NUMBER OF GUNS | 0 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| GUN TECHNOLOGY | Bare Package |
| GUN TYPE | No Applicator |
| GUN INCLUDED | 0 |
| GUN MODEL | No Applicator |
| PUMP RATIO | 30:1 |
| PRODUCT TYPE | Bare Package |

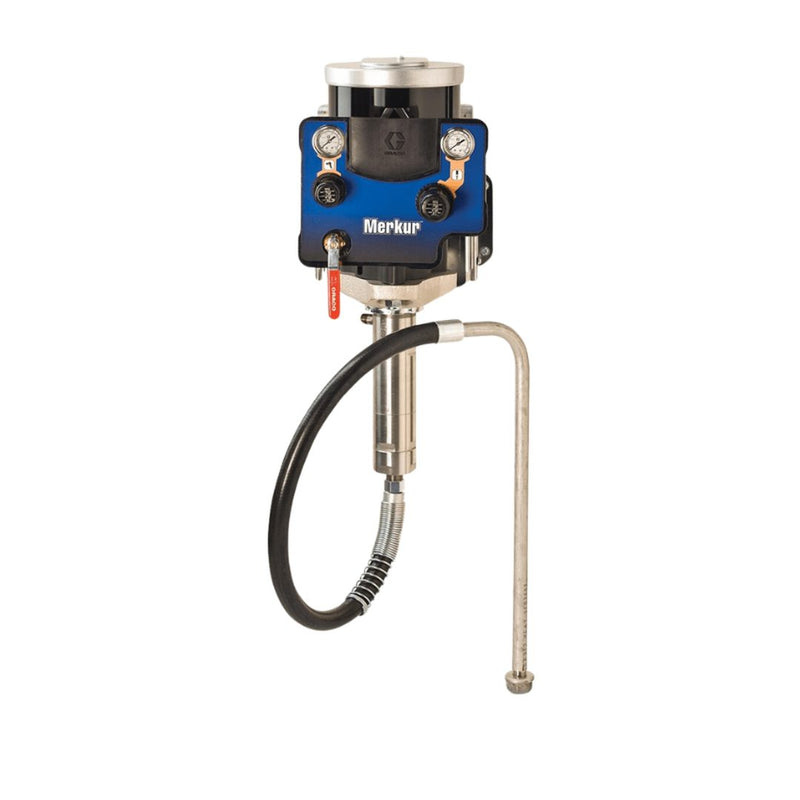

Graco 30:1 Merkur Pump Fluid Flow Wall Mount
SKU: G30W57Graco 30:1 Merkur Pump Fluid Flow Wall Mount
Regular price
$9,207.00 AUD
Sale price
$9,207.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- External valve access allows for easy servicing and online replacement to minimize downtime
Technical Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.5 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 5 |
| MAXIMUM FLOW RATE (GPM) | 1.2 |
| MAXIMUM FLOW RATE (L/MIN) | 4.5 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.5 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| MODEL | Merkur |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| WEIGHT (KG) | 43 |
| WEIGHT (LB) | 94 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Bare Package |
| MOTOR TYPE | Pneumatic |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| NUMBER OF GUNS | 0 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| GUN TECHNOLOGY | Bare Package |
| GUN TYPE | No Applicator |
| GUN INCLUDED | 0 |
| GUN MODEL | No Applicator |
| PUMP RATIO | 30:1 |
| PRODUCT TYPE | Bare Package |
