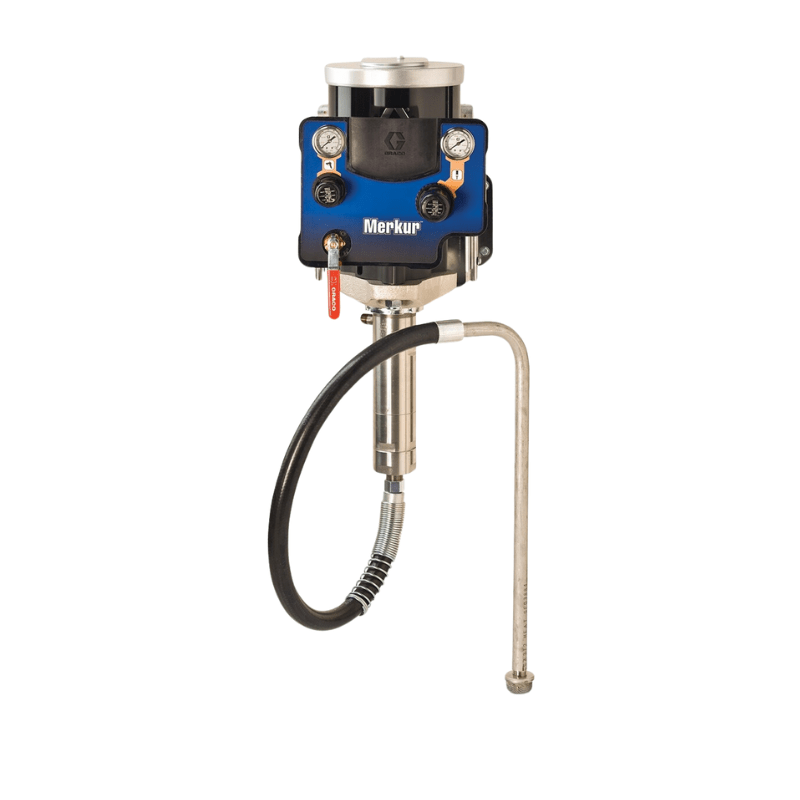

Graco 36:1 Merkur Pump Fluid Flow Wall Mount

Overview

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Features

Proven to outperform and outlast other pumps in their class

Highest technology air motor on the market

Low air consumption for increased efficiency

External valve access allows for easy servicing and online replacement to minimize downtime

Specifications

MODEL	Merkur
PRODUCT TYPE	Bare Package
PUMP TYPE	Pneumatic Piston Pump
PUMP RATIO	36:1
MOTOR TYPE	Pneumatic
POWER SOURCE	Air
PRESSURE TYPE	High Pressure
CONVERTIBLE	Non-Convertible
MAXIMUM WORKING PRESSURE	248 BAR \| 3600 PSI
MAXIMUM FLOW RATE	6 LPM \| 1.6 GPM
FLUID INLET SIZE	19.05 MM \| 3/4 IN
FLUID INLET THREAD TYPE	NPT
FLUID OUTLET SIZE	9.525 MM \| 3/8 IN
FLUID OUTLET THREAD TYPE	NPT
HOSE INLET DIAMETER	5 MM \| 3/16 IN
MAXIMUM HOSE LENGTH	7.5 M \| 25 FT
WETTED MATERIAL	Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon
WEIGHT	33 KG \| 73 LB
MOUNT TYPE	Wall Mount
GUN INCLUDED	No

Manual

Brochure

Data Sheet

Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
