GRACO Endurance Chromex Piston Pump for LineLazer V 3900 and ES 2000
SKU 277069
$1,630.00
Tax included.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details

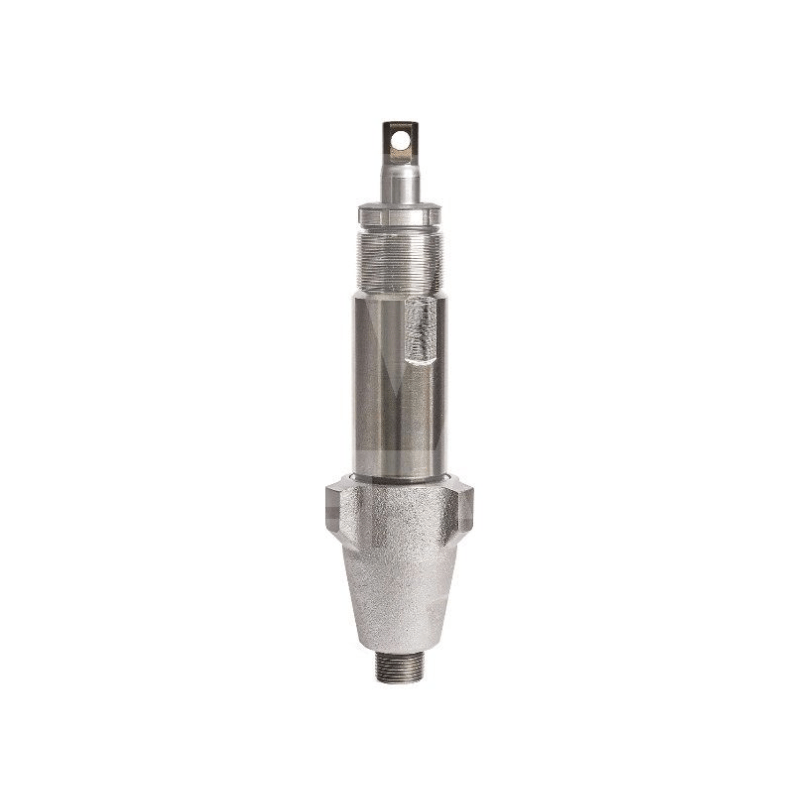

Graco Endurance Chromex piston pump, part 277069. This is the displacement pump fitted to the LineLazer V 3900 and the LineLazer V ES 2000, as listed in Graco displacement pump service manual 310643.
- Maximum working pressure 3300 psi (227 bar, 22.7 MPa)
- Fluid inlet 1-5/16-12 un(m), fluid outlet 1/4 npt(f)
- Chromex rod with V-Max blue UHMWPE packings
- Wetted parts: stainless steel, PTFE, leather, nylon, zinc-plated carbon steel, tungsten carbide, chrome plating
Features
Features
The pump Graco fits to this machine
- Graco manual 310643 lists this pump against both the LineLazer 3900 and the LineLazer ES 2000, so one spare covers either machine in a mixed fleet
- A complete displacement pump assembly, not a seal kit. Cylinder, piston rod, intake valve and packings are all included
- Listed as Model 277069, Series A in Graco displacement pump manual 310643, which is on this page under Downloads
Endurance Chromex construction
- Chromex rod, which Graco rates at four times the hardness of ordinary chrome, for life in road marking paint
- Hardened stainless steel cylinder running V-Max Blue packings
- Rated to the full 3300 psi (227 bar) working pressure of the striper
Worth keeping on the shelf
- A spare pump turns a failed pump into a same day swap instead of a machine off the road waiting on parts
- Flush with Graco Pump Armour at the end of every shift. Paint left to dry in the pump is a rebuild, not a clean
Specifications
| PART NUMBER | 277069 |
|---|---|
| SERIES | A |
| SUITS | Graco LineLazer V 3900, Graco LineLazer V ES 2000 |
| TYPE | Endurance Chromex displacement pump |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.7 |
| FLUID INLET SIZE | 1-5/16-12 un(m) |
| FLUID OUTLET SIZE | 1/4 npt(f) |
| ROD | Chromex |
| CYLINDER | Hardened stainless steel |
| PACKINGS | V-Max Blue |
| WETTED PARTS | Stainless steel, PTFE, leather, nylon, zinc-plated carbon steel, tungsten carbide, chrome plating, fluoroelastomer, acetal, polyethylene |
| WEIGHT (KG) | 2.365 |
| SERVICE MANUAL | 310643 |
