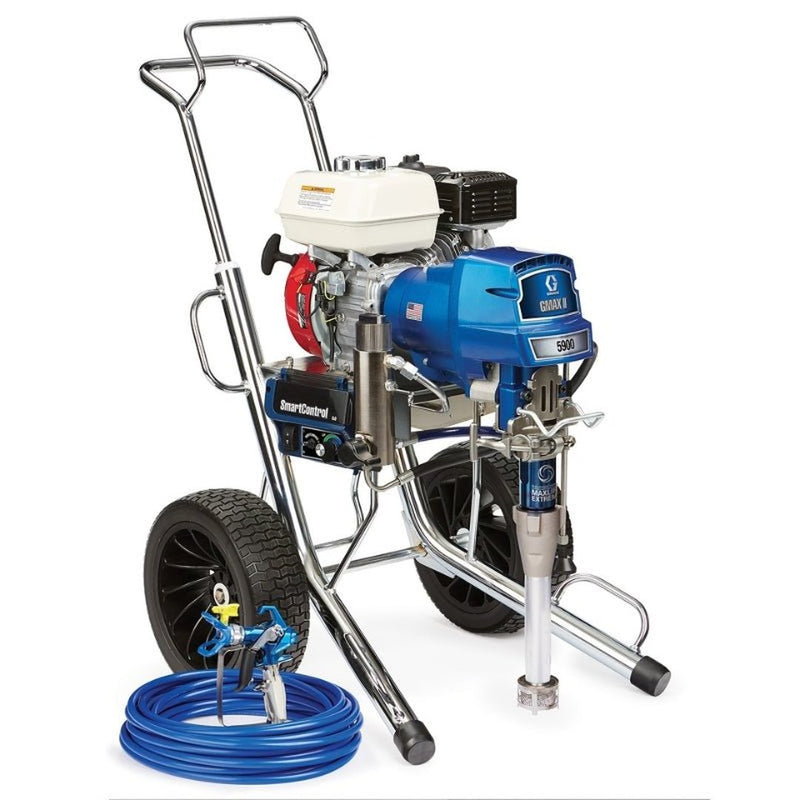

GRACO GMAX II 5900 IronMan Series Gas Airless Sprayer
SKU: 17E833GRACO GMAX II 5900 IronMan Series Gas Airless Sprayer
Regular price
$12,980.00 AUD
Sale price
$12,980.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Other payment options
Delivery & Shipping
GRACO GMAX II 5900 IronMan Series Gas Airless Sprayer
Regular price
$12,980.00 AUD
Sale price
$12,980.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
Endurance Vortex MaxLife Extreme Piston Pump
- The longest life
- Breakthrough Vortex Rotating Rod Technology
- Extreme rod extends pump rod life by 3X
- Oversized passages for high velocity flow to rotate piston for even wear
- 6X more gallons sprayed between repacks
- Graco exclusive abrasion-resistance composite delivers the most durable wear surface
- Repack pump in minutes with QuikPak cartridge repair system
ProConnect 2 Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
Flat Proof Tires
- Never Have a Flat Again
- Tires can’t be punctured by nails, screws, or any sharp debris
Crushproof Inlet Strainer
- Durable Filtration
- Stands up to harsh impacts to maintain filtering and flow
SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
WatchDog Pump Protection System
- Automatically prevents pump damage if material supply is too low
Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- LED Display
- Rugged, Durable Cart Design
Graco GMAX II 5900 IronMan Series Gas Airless Sprayer
Overview
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
- The longest life
- Breakthrough Vortex Rotating Rod Technology
- Extreme rod extends pump rod life by 3X
- Oversized passages for high velocity flow to rotate piston for even wear
- 6X more gallons sprayed between repacks
- Graco exclusive abrasion-resistance composite delivers the most durable wear surface
- Repack pump in minutes with QuikPak cartridge repair system
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- Never Have a Flat Again
- Tires can’t be punctured by nails, screws, or any sharp debris
- Durable Filtration
- Stands up to harsh impacts to maintain filtering and flow
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- Automatically prevents pump damage if material supply is too low
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- LED Display
- Rugged, Durable Cart Design
Specifications
| COMPATIBLE MATERIAL | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Anti-Corrosive Paints |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 17H826 |
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| FEATURES | Endurance Vortex MaxLife Extreme Pump, SmartControl 3.0, Flat Proof Tires, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| HOSE INLET DIAMETER (CM) | 0.635 |
| HOSE INLET DIAMETER (IN) | 1/4 |
| HOSE INLET DIAMETER (MM) | 6.35 |
| HOSE REEL TYPE | Hose Rack |
| INCLUDES | Contractor PC Gun, Todos los equipos se envían completos y listos para pulverizar: con pistola 17Y043 Contractor PC™, boquilla PAA517 + LTX 4, protección 246215 RAC X™, filtro 287032 Easy-Out™ (malla 60), manguera 240794 BlueMax™ II (1/4" x 15 m), 238049 TSL™ (118 ml)., Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 3/8 英寸 x 50 英尺 BlueMax II 无气软管, 3/8 インチ x 50 ft BlueMax II エアレスホース, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II 에어리스 호스, 1/4 英寸 x 3 英尺 BlueMax II 无气快接软管, 1/4 インチ x 3 ft BlueMax II エアレス手元ホース, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, 1/4 in x 3 ft BlueMax II 에어리스 휩 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz (118 ml), TSL 4 oz |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6.06 |
| MAXIMUM HOSE LENGTH (FT) | 150 |
| MAXIMUM HOSE LENGTH (M) | 45 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.043 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.043 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22700 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| OVERALL HEIGHT (CM) | 102.9 |
| OVERALL HEIGHT (IN) | 40.5 |
| WEIGHT (KG) | 67 |
| WEIGHT (LB) | 147 |
| OVERALL HEIGHT (MM) | 1029 |
| OVERALL LENGTH (CM) | 95.8 |
| OVERALL WIDTH (IN) | 24.4 |
| OVERALL LENGTH (IN) | 37.7 |
| SERIES | 5900 |
| OVERALL LENGTH (MM) | 958 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance Vortex |
| TYPE | Airless Sprayer |
| SPRAY GUN TYPE | Contractor PC Pro Gun |
| SPRAY TYPE | Airless |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 22.7 |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 3300 |
| FLUID HOSE INSIDE DIAMETER (IN) | 1/4 |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | ProConnect 2 |
| PUMP ROD TYPE | MaxLife Extreme |
| NUMBER OF GUNS | 1 |
| FILTER MESH SIZE | 60 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.033 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.023 |
| POWER RATING (CC) | 200 |
| PRODUCT SERIES | IronMan |
