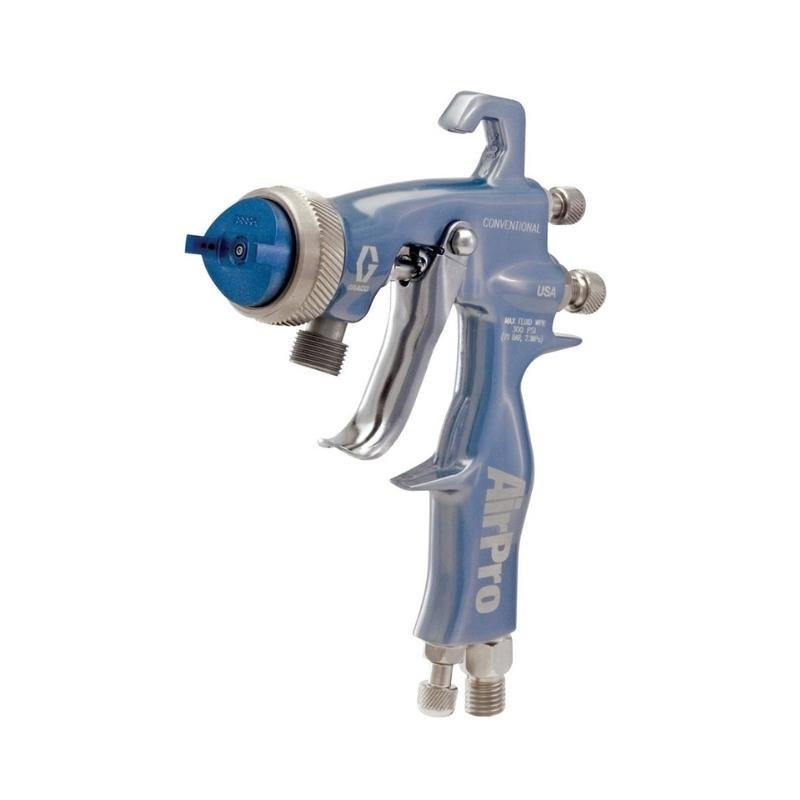

GRACO AirPro General Metal Pressure Feed Spray Guns
SKU: 288726GRACO AirPro General Metal Pressure Feed Spray Guns
Other payment options
GRACO AirPro General Metal Pressure Feed Spray Guns
Features
Versatile Aircaps
Meet the needs of your environment with three different air spray technologies. Graco’s AirPro gun has the versatility and flexibility to accommodate a variety of applications to fit your spraying needs.
| AirPro Aircaps Range | HVLP | COMPLIANT | CONVENTIONAL |
| FINISH QUALITY | Good | Better | Best |
| TRANSFER EFFICIENCY | High | High | Medium |
| FLUID FLOW | Low | Medium | High |
| AIR FLOW | High | Low | Low |
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Enhanced atomization through material-specific aircaps
- Well balanced and lightweight (410 grams) gun makes it easier to spray at a steady rate all day
- Ultra-light trigger pull reduces operator muscle stress
- Ergonomic gun handle provides a comfortable grip
- Rounded control knobs for operator comfort
- Optimize spray performance with our cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
Graco AirPro General Metal Pressure Feed Spray Guns
Overview
Advanced Spraying Technology
The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility. This range is ideal for general metal applications.
- Optimize spray performance with cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
- Maximize operator comfort with our lightweight design, low trigger force and ergonomic handle
- Reduce maintenance and downtime with fewer gun parts
Specifications
| AIR INLET SIZE (CM) | 0.635 |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| AIR INLET THREAD TYPE | NPSM |
| BLEED TYPE | Non-Bleeder |
| COMPATIBLE MATERIAL | CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| FEED TYPE | Pressure Feed |
| FLUID ORIFICE SIZE (CM) | 0.05 to 0.11 |
| FLUID ORIFICE SIZE (IN) | 0.02 to 0.11 |
| FLUID ORIFICE SIZE (MM) | 0.5 to 1.1 |
| GUN ACTIVATION | Manual |
| GUN TYPE | Conventional / HVLP / Compliant |
| GUN WEIGHT (G) | 410 |
| INCLUDES | Air Cap, Cabezal de aire, Needle Assembly, Montaje de aguja, Nozzle, Boquilla, Tool Kit, Kit de herramientas |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID PRESSURE (BAR) | 21 |
| MAXIMUM FLUID PRESSURE (KPA) | 2100 |
| MAXIMUM FLUID PRESSURE (PSI) | 300 |
| MAXIMUM FLUID TEMPERATURE (°C) | 43 |
| MAXIMUM FLUID TEMPERATURE (°F) | 109 |
| MINIMUM FLOW RATE @ PSI (OZ/MIN) | 4 |
| MODEL | AirPro |
| SPRAY PATTERN | Flat |
| TRIGGER LOCK | Non-Locking |
| TRIGGER TYPE | Two-Finger |
| APPLICATION | Metal |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | Air Spray |
| TECHNOLOGY TYPE | Conventional |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| MAXIMUM FLUID PRESSURE (MPA) | 2.1 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM AIR INLET PRESSURE (MPA) | 0.7 |
| FLUID INLET SIZE (CM) | 0.9525 |
| FLUID INLET SIZE (IN) | 3/8 |
| FLUID INLET SIZE (MM) | 9.525 |
| FLUID INLET THREAD TYPE | NPSM |
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Enhanced atomization through material-specific aircaps
- Well balanced and lightweight (410 grams) gun makes it easier to spray at a steady rate all day
- Ultra-light trigger pull reduces operator muscle stress
- Ergonomic gun handle provides a comfortable grip
- Rounded control knobs for operator comfort
- Optimize spray performance with our cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
Features
Versatile Aircaps
Meet the needs of your environment with three different air spray technologies. Graco’s AirPro gun has the versatility and flexibility to accommodate a variety of applications to fit your spraying needs.
| AirPro Aircaps Range | HVLP | COMPLIANT | CONVENTIONAL |
| FINISH QUALITY | Good | Better | Best |
| TRANSFER EFFICIENCY | High | High | Medium |
| FLUID FLOW | Low | Medium | High |
| AIR FLOW | High | Low | Low |
