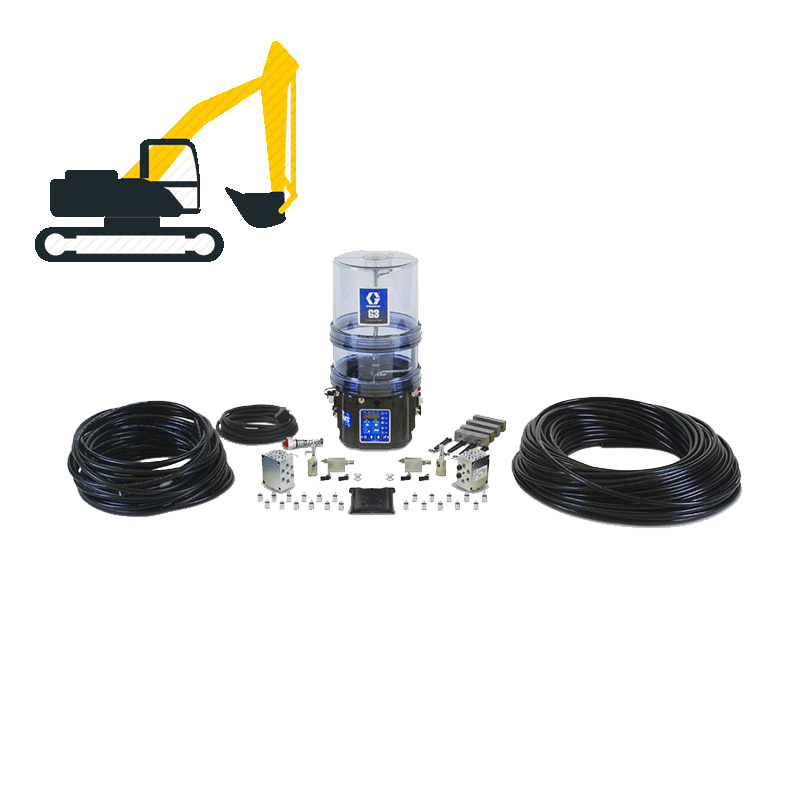

GRACO Automatic Lubrication System Kit for Excavators
SKU: 24N815GRACO Automatic Lubrication System Kit for Excavators
Other payment options
Delivery & Shipping
GRACO Automatic Lubrication System Kit for Excavators
Features
Graco Automatic Lubrication System Kit for Excavators
Overview
- Out-of-the-Box Lubrication Kit with Everything You Need for Installation
- Everything is included for faster installations with no special tools required. No more searching around for each adapter and connector—you get everything in one box ready for your installer.
- Each kit includes a 24 VDC pump, which is tested tough to withstand abuse from the elements. IP69K rated to handle the elements without an enclosure.
- G3’s Data Management System (DMS) makes it easy to transfer data to your PC via USB flash drive for further analysis using Excel® or Notepad®.
- Each kit has the correct metering devices included. No need to figure out lubrication ratesor calculate line lengths. Precision machined, honed and match-fit in our own factory for top performance.
- Continually monitored on-board lubrication regardless of length of operational schedules.
- Protects equipment from contamination, over- or under-lubrication, and mechanical failure caused by improper lubrication.
- Allows longer time between scheduled maintenance.
- Avoid breakdowns on the job site, schedule your equipment repairs and regular maintenance in the shop.
- Excavator, 8L G3 DMS, USP, 19 point
Specifications
| RESERVOIR SIZE (GAL) | 2 |
|---|---|
| RESERVOIR SIZE (L) | 8 |
| MAXIMUM NLGI GRADE | #2 |
| KIT TYPE | Off-Road Mobile Kit |
| INCLUDES | G3 Max Pump with DMS, Remote Manual Run Button, USP Mono Block Metering Valves, Hose and Hose Guarding, Field-Installable Hose Ends, Fittings, Accessories |
| CONTROL OPTIONS | Max |
| COMPATIBLE METERING DEVICE | Series Progressive, Single Line Parallel |
| COMPATIBLE MATERIAL | Oil, Grease |
| APPLICATION | Off-Road Equipment |
| MODEL | G3 |
Features
