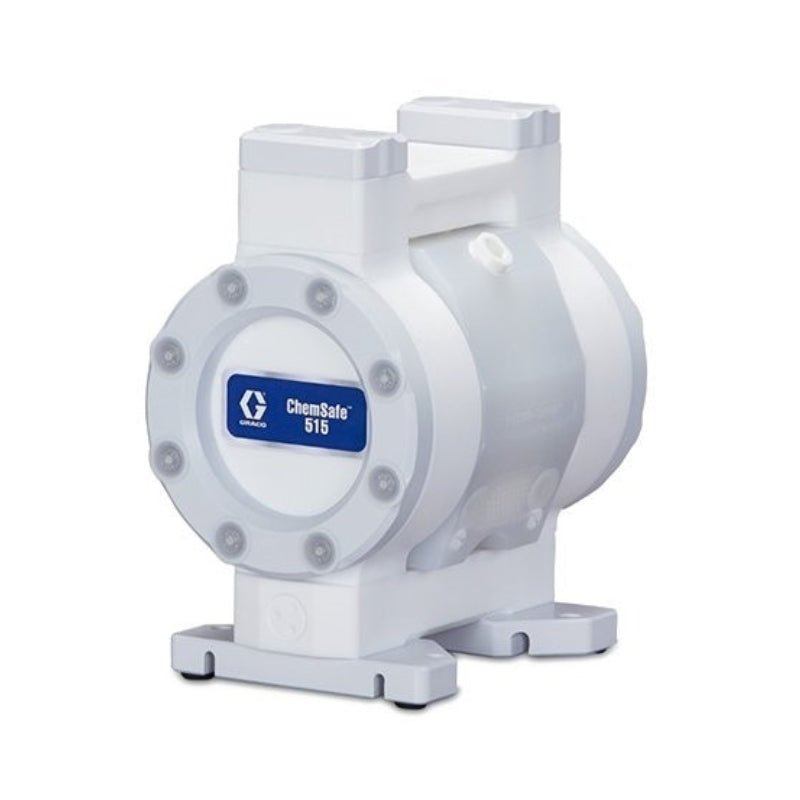

Graco ChemSafe® 515 Air Operated Double Diaphragm Pump
  • Graco ChemSafe® 515 Air Operated Double Diaphragm Pump
1 1

GRACO ChemSafe 515 Air Operated Double Diaphragm Pump

SKU: 24X426

GRACO ChemSafe 515 Air Operated Double Diaphragm Pump

$7,590.00 AUD
$7,590.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Material

Other payment options

View full details
Graco ChemSafe® 515 Air Operated Double Diaphragm Pump

GRACO ChemSafe 515 Air Operated Double Diaphragm Pump

$7,590.00 AUD
$7,590.00 AUD
Save $0
Sold out

Details

Applicable for:

Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink

Features

  • Max flow rate of 16.6 gpm (63 lpm)
  • High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
  • Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
  • Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
  • Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater

    • Graco ChemSafe 515 Air Operated Double Diaphragm Pump

    Overview

    Graco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco ChemSafe 515 Air Operated Double Diaphragm Pump Parts Manual 334794EN-G
      • Graco ChemSafe Brochure 345070ENEU-A
      • Graco Process Equipment Catalog 300435EN-T
      • GO Data Sheet Graco ChemSafe 515 Air Operated 300570EN-K

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR INLET SIZE (IN) 1/4
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE BSPT
      APPLICATION Industrial
      BALL MATERIAL PTFE
      CENTER SECTION MATERIAL Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
      DIAPHRAGM MATERIAL PTFE Overmold
      FLUID INLET SIZE (CM) 1.27
      FLUID INLET SIZE (IN) 1/2
      FLUID INLET SIZE (MM) 12.7
      FLUID INLET THREAD GENDER Female
      FLUID INLET THREAD TYPE BSP
      FLUID OUTLET SIZE (CM) 1.27
      FLUID OUTLET SIZE (IN) 1/2
      FLUID OUTLET SIZE (MM) 12.7
      FLUID OUTLET THREAD GENDER Female
      FLUID OUTLET THREAD TYPE BSP
      FLUID SECTION MATERIAL PTFE
      MANIFOLD CONFIGURATION Center Port
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL PTFE
      MAXIMUM AIR CONSUMPTION (SCFM) 29
      MAXIMUM AIR PRESSURE (BAR) 7
      MAXIMUM AIR PRESSURE (KPA) 700
      MAXIMUM AIR PRESSURE (PSI) 100
      MAXIMUM CYCLE RATE (CPM) 381
      MAXIMUM FLOW RATE (GPM) 16
      MAXIMUM FLOW RATE (L/MIN) 60.6
      MAXIMUM FLUID PRESSURE (BAR) 7
      MAXIMUM FLUID PRESSURE (KPA) 700
      MAXIMUM FLUID PRESSURE (PSI) 100
      MAXIMUM OPERATING TEMPERATURE (°C) 100
      MAXIMUM OPERATING TEMPERATURE (°F) 212
      MAXIMUM SOLID SIZE (CM) 0.4
      MAXIMUM SOLID SIZE (IN) 0.16
      MAXIMUM SOLID SIZE (MM) 4
      MAXIMUM STORAGE TEMPERATURE (°C) 27
      MAXIMUM STORAGE TEMPERATURE (°F) 80
      MINIMUM OPERATING TEMPERATURE (°C) 0
      MINIMUM OPERATING TEMPERATURE (°F) 32
      MINIMUM STORAGE TEMPERATURE (°C) 16
      MINIMUM STORAGE TEMPERATURE (°F) 60
      MODEL ChemSafe
      POWER SOURCE Air
      SEAT MATERIAL PTFE
      SERIES 515
      STANDARDS MET CE
      MAXIMUM FLUID PRESSURE (MPA) 0.7
      MAXIMUM AIR PRESSURE (MPA) 0.7
      CONNECTION TYPE Threaded
      DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

        Features

      • Max flow rate of 16.6 gpm (63 lpm)
      • High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
      • Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
      • Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
      • Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
