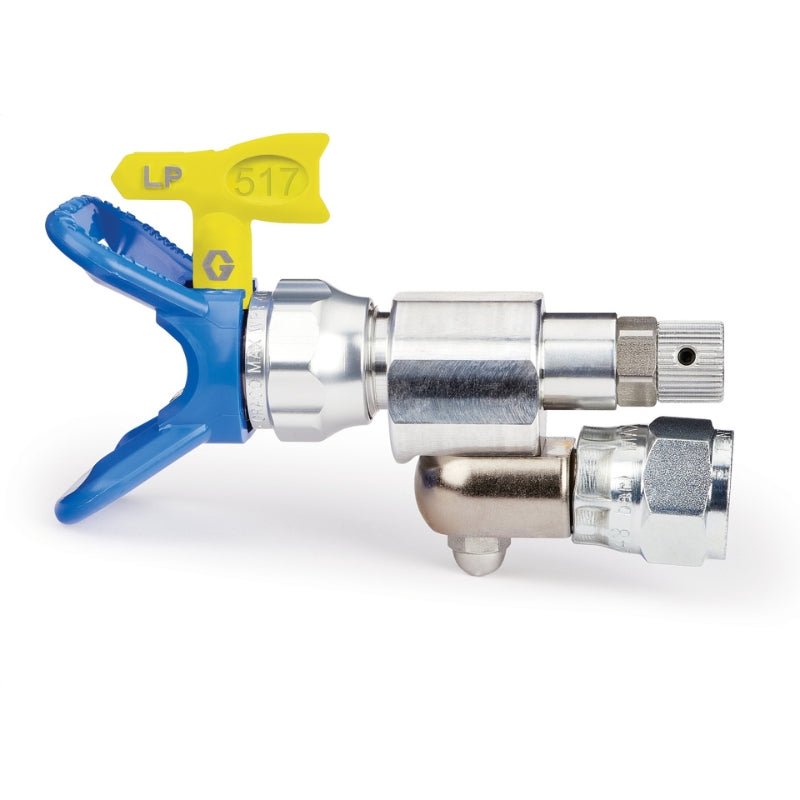

A useful addition to any spray extension, the Graco CleanShot Shut-Off Valve uses a needle valve that shuts fluid off right at the tip for a clean spray pattern without spitting. A 180 degree tip swivel adds versatility when spraying walls and ceilings.
If you use a tip extension longer than 40cm, the CleanShot is worth considering. Beyond 40cm a back pressure build-up between the gun needle and the tip can cause spitting when you stop spraying, which compromises the finish. By shutting paint flow off at the tip rather than at the gun, the CleanShot mitigates this and keeps fine finish work clean on skirtings, trim, doors, ceilings, walls and roofs.
Features
Needle Valve: A unique needle valve shuts fluid off at the tip for a clean pattern.
Fine Finish: Suited to fine finish applications where spitting and dripping slows the job, spraying skirtings, trim, doors, ceilings, walls and roofs without inconsistencies.
180 Swivel: A 180 degree tip swivel provides versatility when spraying walls and ceilings, with no spitting.
Pressure Actuated: Operates at a minimum of 700 psi (4.8 MPa, 48 bar).
Direct Mount: Attaches directly to any extension or onto the hand piece for clean fluid shut-off at the tip.
Included accessories
Specifications
| Type | Shut-Off Valve |
|---|---|
| Model | CleanShot |
| Series | CleanShot |
| For Use With | JetRoller |
| Includes | Gasket |
| Inlet Size | 6.35 mm (1/4 in, 0.635 cm) |
| Inlet Thread Type | NPSM |
| Outlet Size | 22.225 mm (7/8 in, 2.2225 cm) |
| Outlet Thread Type | UNF |
| Maximum Working Pressure | 3600 psi (24.8 MPa, 248 bar, 24800 kPa) |
