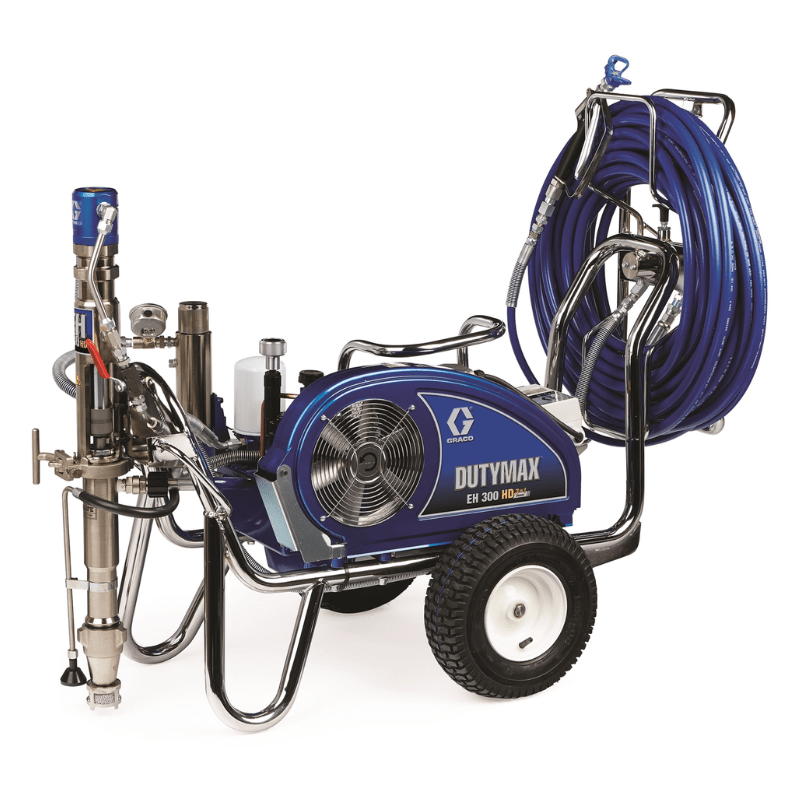

GRACO DutyMax EH 300 HD Hydraulic Airless Sprayers
SKU 24W966
$23,100.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
When your job requires maximum productivity and versatility, turn to the DutyMax EH 300 HD sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Features
Features
- Endurance Pump
- The Most Reliable Pump
- Lasts 2X longer than the next brand
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- High-Efficiency Hydraulic Motor
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- Easy Out Pump Filter
- Easy Maintenance & Less Clogging
- Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
- Won’t collapse or get stuck with inside out filtering process
- Heavy-Duty Prime Valve
- High-Pressure Dumping Capability
- Maintenance-free design
- Durable Cart Design
- Rugged and Easy-to-Maneuver
- Withstands the tough jobsite conditions while absorbing impacts and vibrations
- Retractable handle doubles as coiled hose storage
Specifications
| COMPATIBLE MATERIAL | Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating |
|---|---|
| CONVERTIBLE | Yes |
| ENGINE SIZE (HP) | 7.5 |
| ENGINE SIZE (KW) | 5.5 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4000 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Cart |
| HOSE INLET DIAMETER (CM) | 1.27 |
| HOSE INLET DIAMETER (IN) | 1/2 |
| MAXIMUM FLOW RATE (GPM) | 3 |
| MAXIMUM FLOW RATE (L/MIN) | 11.3 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 80 |
| MAXIMUM TIP SIZE (IN) | 0.057 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| POWER RATING (HP) | 7.5 |
| POWER SOURCE | Gas, Electric |
| POWER RATING (KW) | 5.5 |
| OVERALL WIDTH (MM) | 673.1000 |
| MODEL | TexSpray |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| OVERALL HEIGHT (CM) | 99 |
| OVERALL HEIGHT (IN) | 39 |
| WEIGHT (KG) | 107 |
| WEIGHT (LB) | 236 |
| OVERALL HEIGHT (MM) | 990.6000 |
| OVERALL LENGTH (CM) | 132 |
| OVERALL WIDTH (IN) | 26.5 |
| OVERALL LENGTH (IN) | 52 |
| SERIES | DutyMax EH 300DI |
| OVERALL LENGTH (MM) | 1320.8 |
| OVERALL WIDTH (CM) | 67 |
| TYPE | Airless Sprayer |
| PHASE | 3 |
| NUMBER OF GUNS | 1 |
| VOLUME PER CYCLE (CYCLES/GAL) | 52 |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 200 |
| CONTROL TYPE | N/A |
| PRODUCT SERIES | Standard |
Manual
- Graco Operation Parts DutyMax EH 230 Models 334606EN-J
- Graco Operation Parts DutyMax EH 230 Technical Data 334606EN-J
- Graco Operation Parts DutyMax EH 230 Maintenance 334606EN-J
- Graco Operation Parts DutyMax EH 230 Standard Pump 334606EN-J
- Graco Operation Parts DutyMax EH 230 Troubleshooting 334606EN-J
- Graco Operation Parts DutyMax EH 230 Clean Up 334606EN-J
- Graco Operation Parts DutyMax EH 230 Grounding 334606EN-J
- Graco Operation Parts DutyMax EH 230 How To Spray 334606EN-J
- Graco Operation Parts DutyMax EH 230 ProContractor Pump 334606EN-J
- Graco Operation Parts DutyMax EH 230 Startup Electric 334606EN-J
- Graco Operation Parts DutyMax EH 230 Warning 334606EN-J
- Graco Operation Parts DutyMax EH 230 Component Identification 334606EN-J
- Graco Operation Parts DutyMax EH 230 HD Standard 334606EN-J
- Graco Operation Parts DutyMax EH 230 Internal 334606EN-J
- Graco Operation Parts DutyMax EH 230 Setup 334606EN-J
- Graco Operation Parts DutyMax EH 230 HD ProcContractor 334606EN-J
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
