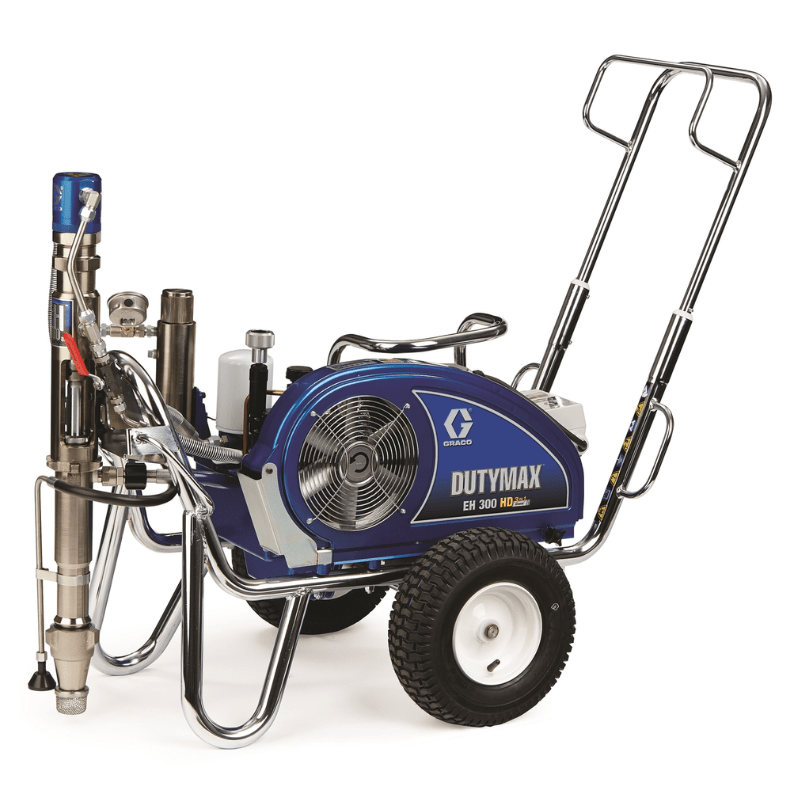

GRACO DutyMax EH 300 HD Hydraulic Airless Sprayers
SKU 24W965
$19,800.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
When your job requires maximum productivity and versatility, turn to the DutyMax EH 300 HD sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Features
Features
- Endurance Pump
- The Most Reliable Pump
- Lasts 2X longer than the next brand
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- High-Efficiency Hydraulic Motor
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- Easy Out Pump Filter
- Easy Maintenance & Less Clogging
- Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
- Won’t collapse or get stuck with inside out filtering process
- Heavy-Duty Prime Valve
- High-Pressure Dumping Capability
- Maintenance-free design
- Durable Cart Design
- Rugged and Easy-to-Maneuver
- Withstands the tough jobsite conditions while absorbing impacts and vibrations
- Retractable handle doubles as coiled hose storage
Specifications
| COMPATIBLE MATERIAL | Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating |
|---|---|
| CONVERTIBLE | Yes |
| ENGINE SIZE (HP) | 7.5 |
| ENGINE SIZE (KW) | 5.5 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4000 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Cart |
| HOSE INLET DIAMETER (CM) | 1.27 |
| HOSE INLET DIAMETER (IN) | 1/2 |
| MAXIMUM FLOW RATE (GPM) | 3 |
| MAXIMUM FLOW RATE (L/MIN) | 11.3 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 80 |
| MAXIMUM TIP SIZE (IN) | 0.057 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| POWER RATING (HP) | 7.5 |
| POWER SOURCE | Gas, Electric |
| POWER RATING (KW) | 5.5 |
| OVERALL WIDTH (MM) | 673.1000 |
| MODEL | TexSpray |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| OVERALL HEIGHT (CM) | 99 |
| OVERALL HEIGHT (IN) | 39 |
| WEIGHT (KG) | 107 |
| WEIGHT (LB) | 236 |
| OVERALL HEIGHT (MM) | 990.6000 |
| OVERALL LENGTH (CM) | 132 |
| OVERALL WIDTH (IN) | 26.5 |
| OVERALL LENGTH (IN) | 52 |
| SERIES | DutyMax EH 300DI |
| OVERALL LENGTH (MM) | 1320.8 |
| OVERALL WIDTH (CM) | 67 |
| TYPE | Airless Sprayer |
| PHASE | 3 |
| NUMBER OF GUNS | 1 |
| VOLUME PER CYCLE (CYCLES/GAL) | 52 |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 200 |
| CONTROL TYPE | N/A |
| PRODUCT SERIES | Standard |
Manual
- Graco Operation Parts DutyMax EH 230 Models 334606EN-J
- Graco Operation Parts DutyMax EH 230 Technical Data 334606EN-J
- Graco Operation Parts DutyMax EH 230 Maintenance 334606EN-J
- Graco Operation Parts DutyMax EH 230 Standard Pump 334606EN-J
- Graco Operation Parts DutyMax EH 230 Troubleshooting 334606EN-J
- Graco Operation Parts DutyMax EH 230 Clean Up 334606EN-J
- Graco Operation Parts DutyMax EH 230 Grounding 334606EN-J
- Graco Operation Parts DutyMax EH 230 How To Spray 334606EN-J
- Graco Operation Parts DutyMax EH 230 ProContractor Pump 334606EN-J
- Graco Operation Parts DutyMax EH 230 Startup Electric 334606EN-J
- Graco Operation Parts DutyMax EH 230 Warning 334606EN-J
- Graco Operation Parts DutyMax EH 230 Component Identification 334606EN-J
- Graco Operation Parts DutyMax EH 230 HD Standard 334606EN-J
- Graco Operation Parts DutyMax EH 230 Internal 334606EN-J
- Graco Operation Parts DutyMax EH 230 Setup 334606EN-J
- Graco Operation Parts DutyMax EH 230 HD ProcContractor 334606EN-J
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
