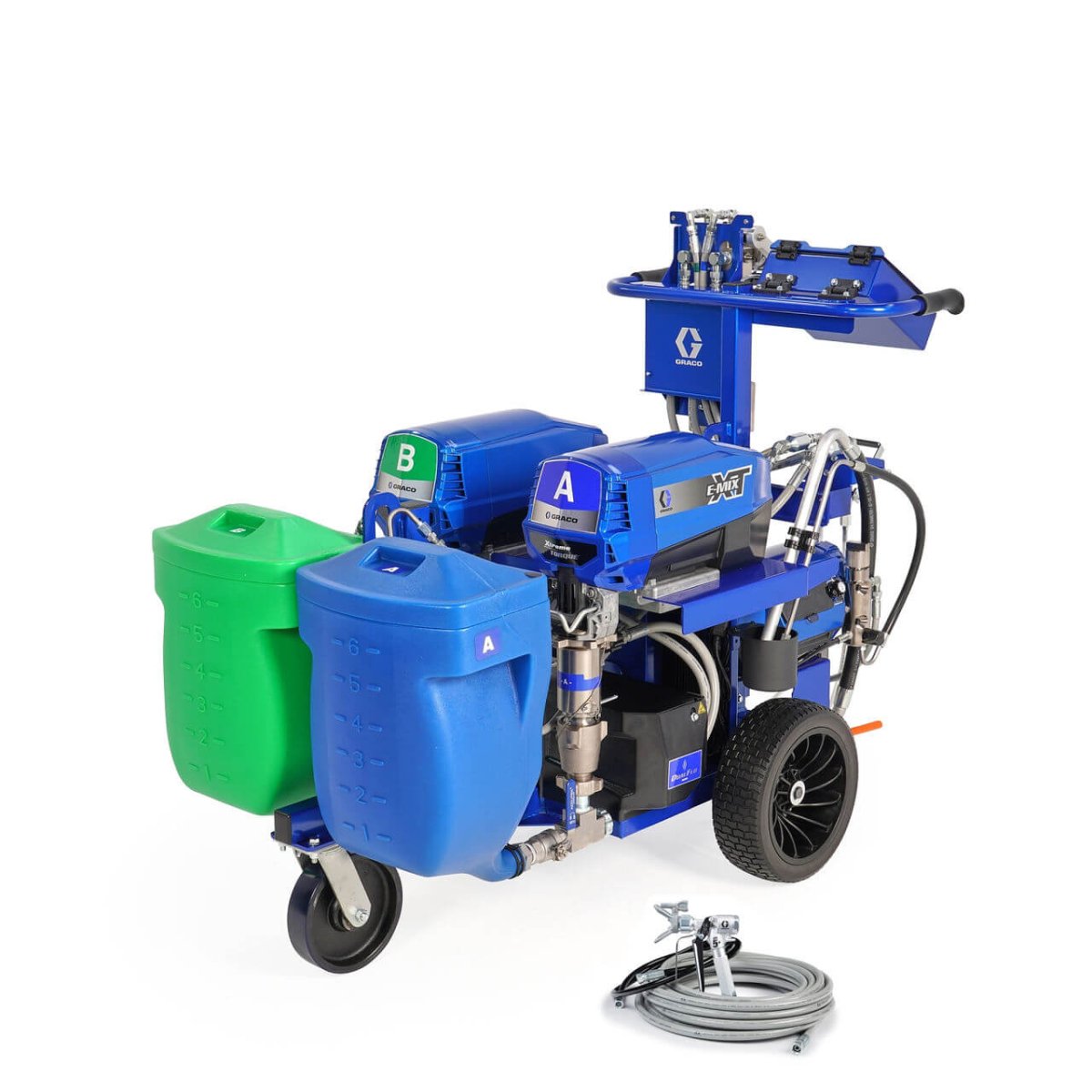

GRACO E-Mix XT Standard Series

SKU: 2004087

GRACO E-Mix XT Standard Series

$75,100.00 AUD
$75,100.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO E - Mix XT Standard Series - GO Industrial - 2004087

GRACO E-Mix XT Standard Series

$75,100.00 AUD
$75,100.00 AUD
Save $0
Sold out

Details

This innovative system is designed to handle a wide range of spray ratios, from 1:1 up to 6:1, and is fully capable of managing coatings with up to 100% solids content. This makes it an ideal solution for nearly every job involving plural component materials

Who Is This Product For?

  • Protective Coatings Contractors: Ideal for applying a full range of protective coatings, including those with high solids content, in various environments (oil & gas, water & wastewater, bridge & highway, marine, etc.).
  • Transitioning to Electric: For those looking to move away from air-powered systems, the E-Mix XT eliminates the need for traditional air compressors, offering substantial cost and energy savings, along with quieter operation.

Features

  • XT Breakthrough Performance
    • Variable Ratio from 1:1 to 6:1
    • Flow rates up to 1.5 gpm
    • 5000 psi Max Pressure
    • Tip support to .039
  • Xtreme Torque Motors For Unmatched Performance
    • Silent operation for comfort and extending spray times in restricted areas.
  • Dual Endurance Pumps With ProConnect
    • Job site proven Chromex Rod and Chrome cylinder for exceptional life and durability.
    • Balanced double-displacement design for ratio accuracy.

    • Quick & easy pump removal with just a hammer - perfect for on-the-job maintenance.

  • DualFlo On-Demand Fluid Heater
    • Offers independent heat for A & B components.
    • 4000 watt power provides up to 60°F delta T heat rise for easier spraying.
    • Adjusts right from the touch screen.



  • Easy To Maneuver Design
    • Heavy-duty painted steel construction with integrated lift points and flat proof tires.

  • SmartSync Control With Touch-Screen Interface
    • All important spray parameters are controlled from one screen — nothing could be easier.
    • Eliminates the steep learning curve — no expert needed.
    • Perfectly syncs the XT motors and pumps to deliver the perfect ratio — everytime.

  • Featuring RatioGuard Protection
    • Real-time ratio monitoring maintains accuracy.
    • Integrated alarm system prevents errors and eliminates rework.

  • Integrated Ratio Check
    • Proves on-ratio accuracy for each mix — ensuring quality.
    • Ideal for inspections and quality control checks.
    • Single-handle design for easy, efficient operation.

  • FastClean Solvent Pump
    • Allows quick flushing of mix hose and gun during stoppage to protect your equipment.
    • Features 5 gallon inlet suction set for solvent bucket.
    • Powered by Xtreme Torque Motor and Endurance pump for long life and trouble-free operation.

Graco E-Mix XT Standard Series

Overview

The new Graco E-Mix XT Standard Series marks a significant leap in electric variable ratio spray systems, setting a new standard for efficiency and ease of use in the protective coatings industry. It's engineered to be the most economical, easy-to-operate, and portable solution available.

With its intuitive touchscreen interface, SmartSync™ control, and RatioGuard™ protection, the E-Mix XT simplifies complex plural-component spraying, making it accessible even for those new to this technology, while delivering consistent and accurate results every time.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Graco E-Mix XT Standard Series
  • GO Manual Graco E-Mix Standard Series 3B0221EN
  • GO Parts Breakdown Graco E-Mix Standard Series 3B0224EN-A
  • GO Catalogue Graco E-Mix Standard Series

Specifications

  • UPC Product: 769946839111
  • Division: CED
  • Family Code: FAMXMX
  • Unit of Measure: EA
  • Height: 137.160 CM
  • Length: 154.940 CM
  • Width: 110.490 CM
  • Volume: 2.345 M3
  • Shipping Weight: 257.187 KG
  • HTS Code (AU): 8424200045
  • Model: E-Mix XT
  • Series: Standard

    Features

    • XT Breakthrough Performance
      • Variable Ratio from 1:1 to 6:1
      • Flow rates up to 1.5 gpm
      • 5000 psi Max Pressure
      • Tip support to .039
    • Xtreme Torque Motors For Unmatched Performance
      • Silent operation for comfort and extending spray times in restricted areas.
    • Dual Endurance Pumps With ProConnect
      • Job site proven Chromex Rod and Chrome cylinder for exceptional life and durability.
      • Balanced double-displacement design for ratio accuracy.

      • Quick & easy pump removal with just a hammer - perfect for on-the-job maintenance.

    • DualFlo On-Demand Fluid Heater
      • Offers independent heat for A & B components.
      • 4000 watt power provides up to 60°F delta T heat rise for easier spraying.
      • Adjusts right from the touch screen.



    • Easy To Maneuver Design
      • Heavy-duty painted steel construction with integrated lift points and flat proof tires.

    • SmartSync Control With Touch-Screen Interface
      • All important spray parameters are controlled from one screen — nothing could be easier.
      • Eliminates the steep learning curve — no expert needed.
      • Perfectly syncs the XT motors and pumps to deliver the perfect ratio — everytime.

    • Featuring RatioGuard Protection
      • Real-time ratio monitoring maintains accuracy.
      • Integrated alarm system prevents errors and eliminates rework.

    • Integrated Ratio Check
      • Proves on-ratio accuracy for each mix — ensuring quality.
      • Ideal for inspections and quality control checks.
      • Single-handle design for easy, efficient operation.

    • FastClean Solvent Pump
      • Allows quick flushing of mix hose and gun during stoppage to protect your equipment.
      • Features 5 gallon inlet suction set for solvent bucket.
      • Powered by Xtreme Torque Motor and Endurance pump for long life and trouble-free operation.
