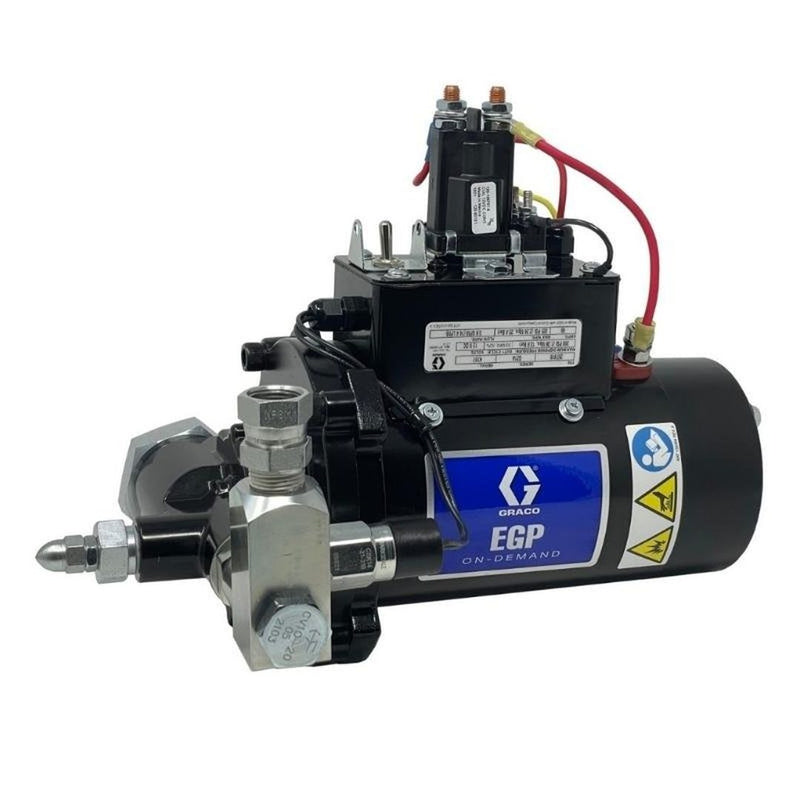

GRACO EGP™ 12 VDC On-Demand Pump 14.4lpm 300psi 25T818
  • GRACO EGP™ 12 VDC On-Demand Pump 14.4lpm 300psi 25T818
1 1

GRACO EGP 12 VDC On-Demand Pump 14.4lpm 300psi

SKU: 25T818

GRACO EGP 12 VDC On-Demand Pump 14.4lpm 300psi

$3,344.00 AUD
$3,344.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO EGP™ 12 VDC On-Demand Pump 14.4lpm 300psi 25T818

GRACO EGP 12 VDC On-Demand Pump 14.4lpm 300psi

$3,344.00 AUD
$3,344.00 AUD
Save $0
Sold out

Details

Install the EGP On-Demand Pump in a variety of applications including workshops, mobile trucks and industrial plants. Use it as an energy-efficient option to standard pneumatic pumps.

Typical Applications

  • Filling bulk tanks from drums
  • Lubricant transfer from remote locations
  • Construction equipment
  • Agricultural equipment
  • Filling in-plant machinery
  • Evacuating used oil receivers
  • Filling shop oil furnaces with new or used oil
  • Automotive and truck service garages
  • Fleet marine and personal boat service
  • Aircraft maintenance

Typical Fluids Handled

  • Petroleum- and synthetic-based oils (motor, gear and ATF)
  • Waste oil
  • Antifreeze
  • Hydraulic fluids
  • Cutting oils
  • Non-flammable oil-based solvents
  • Oil-based herbicide carriers

Features

  • Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
  • Smooth Fluid Flow 4 gpm (15 lpm) - Output flow is continuous and non-pulsating up to 4 gpm (15 lpm).
  • Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
  • Fluid Flow When Needed - On-demand pressure sensing technology starts and stops the pump during the dispense.
  • Pump Reliability - Internal inlet and outlet checks keep pump section flooded to maintain prime for reliable performance.
  • Simultaneous Dispenses - Pump long distances and supply fluid to multiple dispense points.

    • Graco EGP 12 VDC On-Demand Pump 14.4lpm 300psi

    Overview

    Choose cost-saving convenience with the all-new Graco EGP electric pumps. Install the EGP on-demand pump to replace traditional pneumatic pumps and reduce operating costs. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 3A8571EN-A Graco 12 VDC EGP On-Demand Pump 25T818
      • Graco EGP Transfer and EGP On-Demand Pumps Data Sheet

      Specifications

      MAXIMUM SPEED (RPM) 1750
      MAXIMUM WORKING PRESSURE (BAR) 22.4
      MAXIMUM WORKING PRESSURE (PSI) 325
      OVERALL DEPTH (IN) 12.5
      OVERALL DEPTH (MM) 317.5
      OVERALL HEIGHT (IN) 8
      OVERALL HEIGHT (MM) 203.2
      OVERALL WIDTH (IN) 6.75
      OVERALL WIDTH (MM) 171.4
      POWER RATING (HP) 0.75
      POWER RATING (W) 600
      WEIGHT (LB) 36
      WETTED PARTS Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber
      COMPATIBLE MATERIAL Oil
      INLET THREAD TYPE NPT
      MAXIMUM FLOW RATE (GPM) 3
      OUTLET THREAD TYPE NPT
      FLUID PRESSURE CONTROL TYPE Internal Bypass, Electrical Pressure Shut Off Switch
      INLET THREAD SIZE (IN) 0.75
      MAXIMUM CURRENT (A) 60
      OUTLET THREAD SIZE (IN) 0.5
      TYPE Gear Pump
      POWER TYPE Electric
      INLET THREAD GENDER Female
      OUTLET THREAD GENDER Female
      MAXIMUM FLOW RATE (L/MIN) 11.4

        Features

      • Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
      • Smooth Fluid Flow 4 gpm (15 lpm) - Output flow is continuous and non-pulsating up to 4 gpm (15 lpm).
      • Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
      • Fluid Flow When Needed - On-demand pressure sensing technology starts and stops the pump during the dispense.
      • Pump Reliability - Internal inlet and outlet checks keep pump section flooded to maintain prime for reliable performance.
      • Simultaneous Dispenses - Pump long distances and supply fluid to multiple dispense points.
