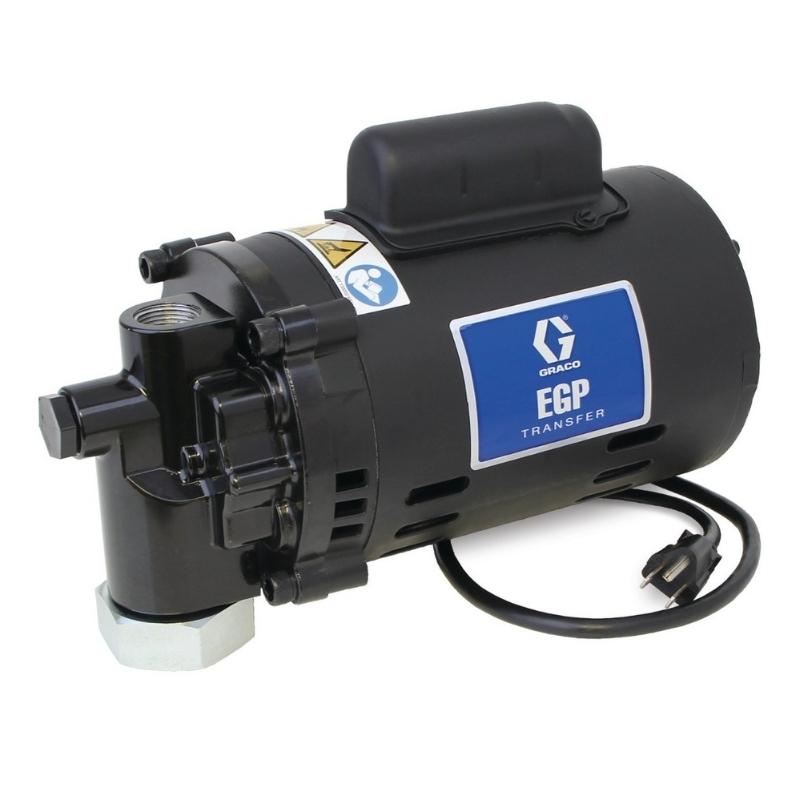

GRACO EGP 230 VAC Oil Transfer Pump 12.1lpm 65psi - GO Industrial - 25T821

GRACO EGP 230 VAC Oil Transfer Pump 12.1lpm 65psi

SKU 25T821
Afterpay Zip PayPal LeaseGO
$1,732.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock, Victoria Warehouse

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.

    Features

    Features

  • Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
  • Smooth Fluid Flow 8 gpm (30 lpm) - Output flow is continuous and non-pulsating up to 8 gpm (30 lpm).
  • Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
  • Consistent Pressure - Built-in fluid bypass valve protects pump and downstream components.
  • Pump Protection - Includes inlet strainer to keep larger debris out of pump housing and extend pump life.
  • Plug and Play - Self-priming, precision machined pump design.
    • Specifications
    MAXIMUM SPEED (RPM) 1425
    MAXIMUM WORKING PRESSURE (BAR) 4.5
    MAXIMUM WORKING PRESSURE (PSI) 65
    OVERALL DEPTH (IN) 12.5
    OVERALL DEPTH (MM) 317.5
    OVERALL HEIGHT (IN) 8
    OVERALL HEIGHT (MM) 203.2
    OVERALL WIDTH (IN) 6.75
    OVERALL WIDTH (MM) 171.4
    POWER RATING (HP) 0.5
    POWER RATING (W) 370
    WEIGHT (LB) 25
    WETTED PARTS Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement
    COMPATIBLE MATERIAL Oil
    INLET THREAD TYPE NPT
    MAXIMUM FLOW RATE (GPM) 3
    OUTLET THREAD TYPE NPT
    VOLTAGE (V AC) 230
    FLUID PRESSURE CONTROL TYPE Internal Bypass
    INLET THREAD SIZE (IN) 1
    OUTLET THREAD SIZE (IN) 0.75
    TYPE Gear Pump
    POWER TYPE Electric
    INLET THREAD GENDER Female
    OUTLET THREAD GENDER Female
    MAXIMUM FLOW RATE (L/MIN) 11.4
    MODEL EGP
