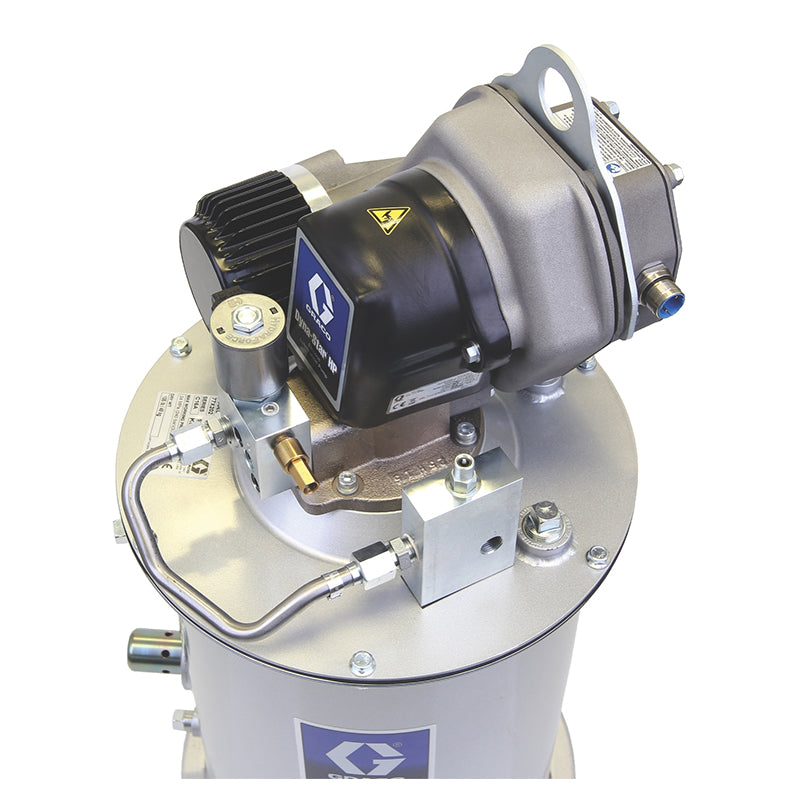

GRACO Electric Dyna-Star HP Injector Module 24 VDC
SKU 77X202
$12,900.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Features
Specifications
| TYPE | Electric Piston Pump |
|---|---|
| APPLICATION | In-Plant Machinery, Off-Road Equipment |
| COMPATIBLE MATERIAL | Grease |
| FLUID OUTLET SIZE (IN) | 0.375 |
| FLUID OUTLET SIZE (MM) | 9.5250 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | HP 泵 24 VDC, HP ポンプ 24 VDC, HP Pump 24 VDC, Bomba de alta presión de 24 VCC, 带泵的注油器模块, ポンプ付インジェクターモジュール, Injector Module with Pump, módulo de inyector con bomba, 套管, チューブインチューブ, Tube-in-Tube, tubo en tubo, 泄压阀, ベントバルブ, Vent Valve, válvula de ventilación, 自动加注关闭, 自動充填シャットオフ, Auto-fill Shutoff, cierre de llenado automático, 低液位, 低レベル, Low Level, nivel bajo, 60 磅储罐, 60 lb リザーバー, 60 lb Reservoir, depósito de 60 lb |
| MAXIMUM WORKING PRESSURE (BAR) | 241 |
| MAXIMUM WORKING PRESSURE (KPA) | 24100 |
| MAXIMUM WORKING PRESSURE (PSI) | 3500 |
| MODEL | Dyna-Star |
| POWER TYPE | Pneumatic |
| RESERVOIR SIZE (LB) | 60 |
| VOLTAGE (V DC) | 24 |
| WEIGHT (LB) | 105 |
| COMPATIBLE METERING DEVICE | Single Line Parallel |
| IP RATING | IP69K |
| MAXIMUM FILL INLET PRESSURE (BAR) | 344.7 |
| MAXIMUM FILL INLET PRESSURE (KPA) | 34470 |
| MAXIMUM FILL INLET PRESSURE (PSI) | 5000 |
| MINIMUM CST GRADE (CST) | 40 |
| OVERALL DEPTH (CM) | 41 |
| OVERALL DEPTH (IN) | 16.13 |
| OVERALL DEPTH (MM) | 410 |
| OVERALL HEIGHT (CM) | 77.5 |
| OVERALL HEIGHT (IN) | 30.5 |
| OVERALL HEIGHT (MM) | 775 |
| OVERALL WIDTH (CM) | 36.8 |
| OVERALL WIDTH (IN) | 14.5 |
| OVERALL WIDTH (MM) | 368 |
| POWER CONNECTION TYPE | M23 |
| WEIGHT (KG) | 47.6 |
| MAXIMUM WORKING PRESSURE (MPA) | 24.1 |
