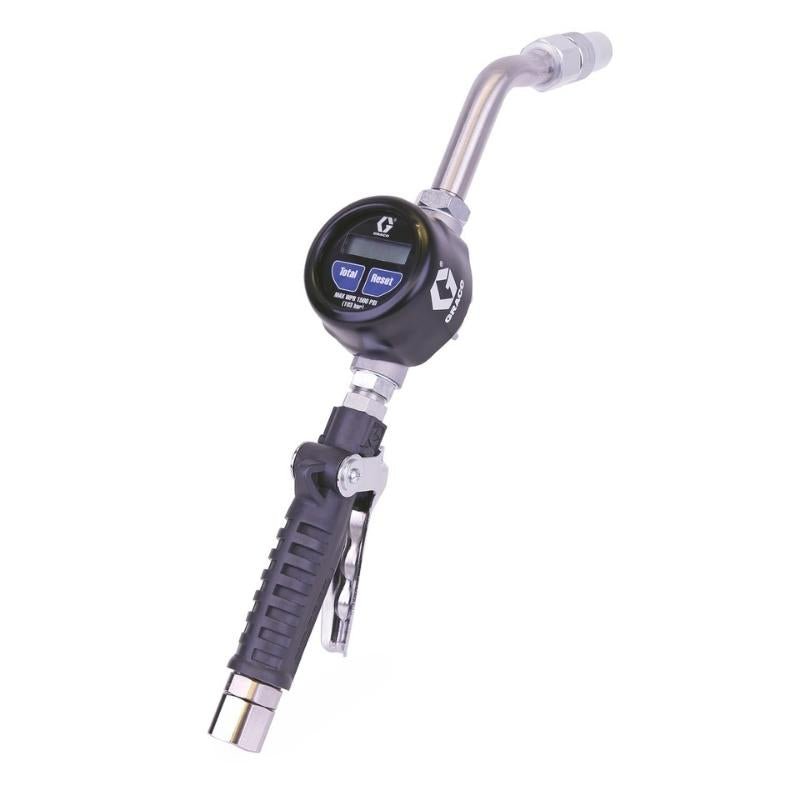

GRACO EM Series Electronic Manual Dispense Meters Range
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Graco EM Series Electronic Manual Dispense Meters range, from GO Industrial, offers amazing performance at an amazingly competitive price.
The EM Series handheld and in-line meters are designed to last - from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. EM Series meters are backed by Graco's robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.
Features
- Twist-Close Nozzle Prevents Leaking: Multiple extensions available including rigid, flexible and gear lube.
- High-Flow Rates: Capable of up to 20 gpm (75.7 L/min).
- Legacy Valve: 3/4 inch (19 mm) inlet, compatible with oil and Anti-freeze.
- Prevent Accidental Dispenses: Easy-to-hold locking handle.
- Proven in Harsh Conditions: Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life: Features upgraded electronics and easily replaceable AAA batteries.
Specifications
| APPROVALS | CE |
|---|---|
| CALIBRATION TYPE | Factory Calibrated |
| COMPATIBLE MATERIAL | Petroleum-Based Oil, Synthetic-Based Oil, Anti-freeze |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible / Rigid |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Extension |
| INLET SIZE | 12.7 [EM8] / 19.05 [EM20] MM | 1/2" [EM8] / 3/4" [EM20] |
| INLET THREAD TYPE | NPT |
| IP RATING | 69K |
| MAXIMUM FLOW RATE | 30.3 [EM8] / 75.7 [EM20] L/MIN | 8 [EM8] / 20 [EM20] GPM |
| MAXIMUM OPERATING TEMPERATURE | 82 C | 180 F |
| MAXIMUM RECORDED DISPENSE | 19999 |
| MAXIMUM STORAGE TEMPERATURE | 85 C | 185 F |
| MAXIMUM WORKING PRESSURE | 102 BAR | 1500 PSI |
| METER ACCURACY | ±0.5% |
| METER PRESSURE LOSS | 2.1 BAR at 6 GPM [EM8] / 5.9 BAR at 12 GPM [EM20] | 30 PSI at 6 GPM [EM8] / 85 PSI at 12 GPM [EM20] |
| OVERALL HEIGHT | 133 MM | 5.25 IN |
| OVERALL LENGTH | 330 MM | 13 IN |
| OVERALL WIDTH | 90 MM | 3.5 IN |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT | 1.36 [EM8] / 1.39 [EM20] KG | 3 [EM8] / 3.1 [EM20] LB |
| MINIMUM FLOW RATE | 0.95 L/MIN | 0.25 GPM |
| WETTED MATERIAL | Aluminium, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| WARRANTY | 5 Years |
| UNIT OF MEASURE | Quart, Pint, Litre, Gallon |
| TRIGGER PROTECTION TYPE | Lock Off Button |
| TRIGGER LOCK | Locking |
| SERIES | A |
| RECOMMENDED ENVIRONMENT | Indoor/Outdoor |
| OUTLET THREAD TYPE | ORB |
| OUTLET SIZE | 19.05 [EM8] / 22.225 [EM20] MM | 3/4" [EM8} / 7/8" [EM20] |
| NOZZLE TYPE | Manual |
| MINIMUM OPERATING TEMPERATURE | -30 C | -22 F |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM TOTALISER | 19999 |
| MODEL | EM8 / EM20 |
