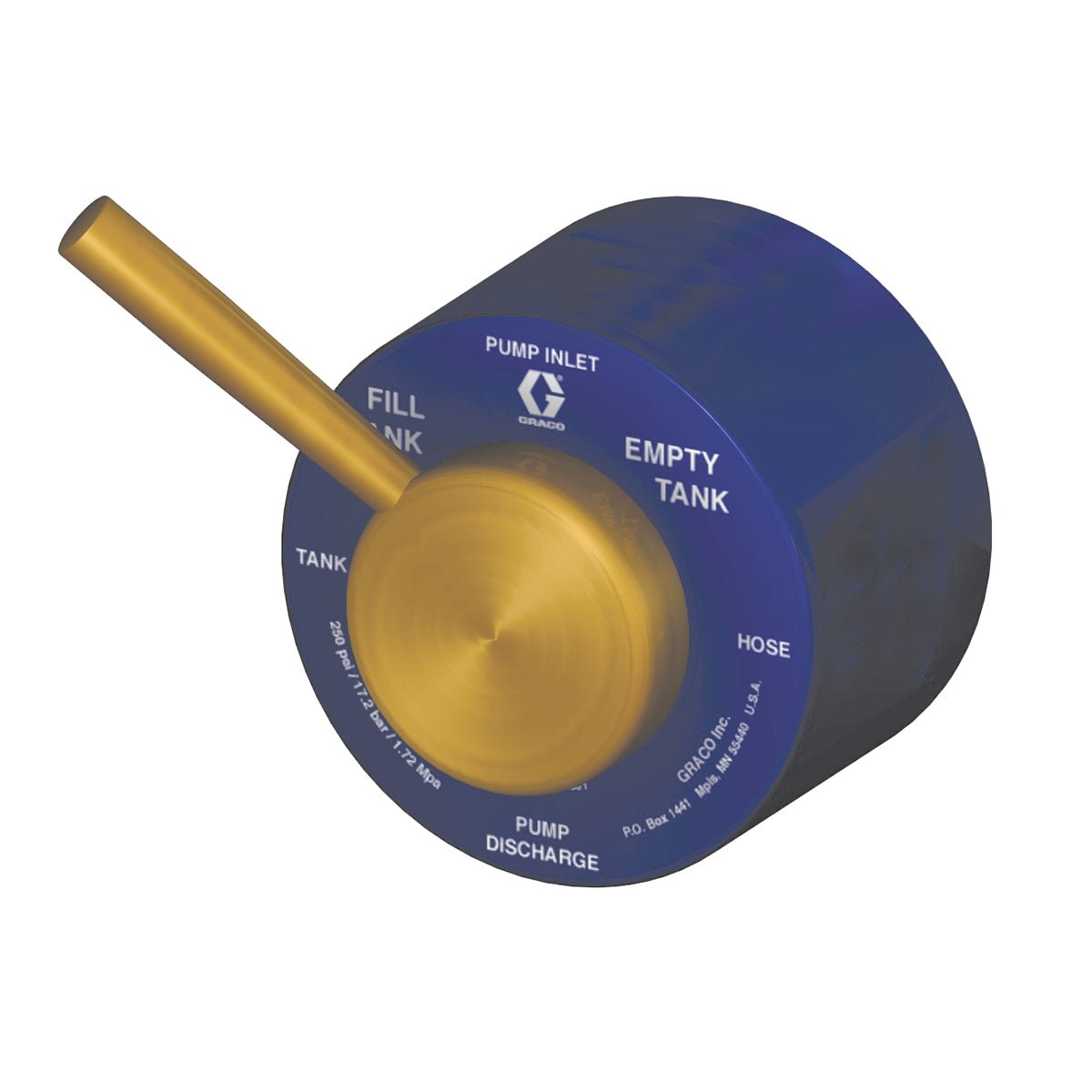

GRACO Evacuation Valve 4 Way DN25 1" NPT
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.
-
Simplifies installation by eliminating need for multiple valves
-
Unrestricted flow - no pressure or volume loss
-
Two position tank fill and emptying control
-
Tapered, self-seating valve spool for superior sealing performance
-
Four (4) 5/16 inch threaded bolt holes for flush mount installation
Specifications
| Maximum Working Pressure (bar) | 14 |
|---|---|
| Maximum Working Pressure (kPa) | 1400 |
| Maximum Working Pressure (psi) | 200 |
| Overall Height (cm) | 12.065 |
| Overall Height (in) | 4.75 |
| Overall Height (mm) | 120.65 |
| Overall Width (cm) | 12.065 |
| Overall Width (in) | 4.75 |
| Overall Width (mm) | 120.65 |
| Thread Gender | Female |
| Thread Size (in) | 1 |
| Thread Type | NPT |
| Type | Control Valve |
| Weight (lb) | 3.5 |
| Wetted Parts | Aluminum, Fluoroelastomer |
| Maximum Working Pressure (MPa) | 1.4 |
