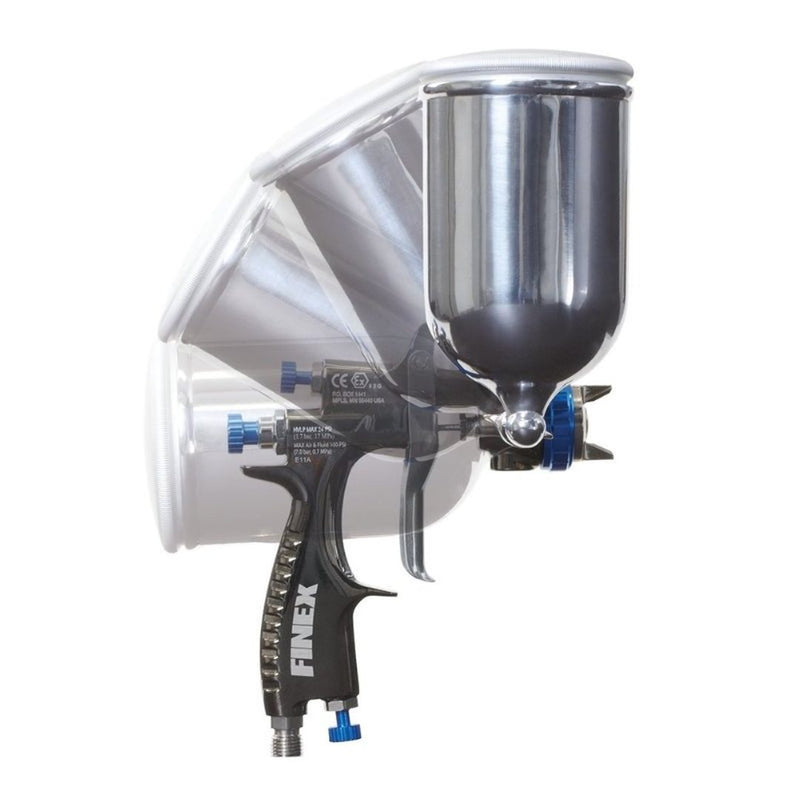

GRACO Finex Side Cup Gravity Feed Air Spray Guns
SKU: 24J601GRACO Finex Side Cup Gravity Feed Air Spray Guns
Other payment options
GRACO Finex Side Cup Gravity Feed Air Spray Guns
Features
Graco Finex Side Cup Gravity Feed Air Spray Guns
Overview
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
Specifications
| AIR INLET SIZE (CM) | 0.635 |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| AIR INLET THREAD TYPE | NPSM |
| BLEED TYPE | Non-Bleeder |
| BODY MATERIAL | Metal |
| COMPATIBLE MATERIAL | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| FEED TYPE | Side-Cup Gravity Feed |
| FLUID ORIFICE SIZE (CM) | 0.10 to 0.14 |
| FLUID ORIFICE SIZE (IN) | 0.039 to 0.055 |
| FLUID ORIFICE SIZE (MM) | 1 to 1.4 |
| GUN ACTIVATION | Manual |
| GUN TYPE | Conventional / HVLP |
| GUN WEIGHT (KG) | 0.54 |
| GUN WEIGHT (LB) | 1.2 |
| INCLUDES | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID PRESSURE (BAR) | 7 |
| MAXIMUM FLUID PRESSURE (KPA) | 700 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM FLUID TEMPERATURE (°C) | 43 |
| MAXIMUM FLUID TEMPERATURE (°F) | 109 |
| MODEL | Finex |
| SPRAY PATTERN | Flat |
| TRIGGER LOCK | Non-Locking |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | Air Spray |
| TECHNOLOGY TYPE | Conventional / HVLP |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| MAXIMUM FLUID PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM AIR INLET PRESSURE (MPA) | 0.7 |
| FLUID INLET SIZE (CM) | 0.9525 |
| FLUID INLET SIZE (IN) | 3/8 |
| FLUID INLET SIZE (MM) | 9.525 |
| FLUID INLET THREAD TYPE | NPSM |
- Aircaps optimized for high quality spray performance
- Lightweight, ergonomic gun
- Lightest trigger pull in its category
- Integrated air inlet adjustment
