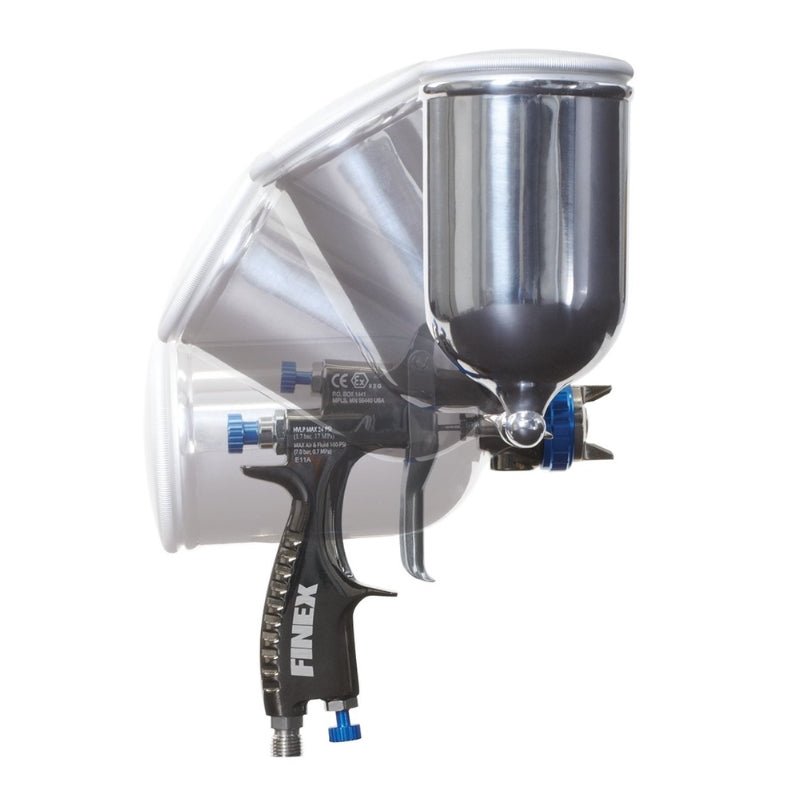

GRACO Finex Side Cup Gravity Feed Air Spray Guns
SKU 24J601
$339.00
$399.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
Features
Features
Specifications
| AIR INLET SIZE (CM) | 0.635 |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| AIR INLET THREAD TYPE | NPSM |
| BLEED TYPE | Non-Bleeder |
| BODY MATERIAL | Metal |
| COMPATIBLE MATERIAL | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| FEED TYPE | Side-Cup Gravity Feed |
| FLUID ORIFICE SIZE (CM) | 0.10 to 0.14 |
| FLUID ORIFICE SIZE (IN) | 0.039 to 0.055 |
| FLUID ORIFICE SIZE (MM) | 1 to 1.4 |
| GUN ACTIVATION | Manual |
| GUN TYPE | Conventional / HVLP |
| GUN WEIGHT (KG) | 0.54 |
| GUN WEIGHT (LB) | 1.2 |
| INCLUDES | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID PRESSURE (BAR) | 7 |
| MAXIMUM FLUID PRESSURE (KPA) | 700 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM FLUID TEMPERATURE (°C) | 43 |
| MAXIMUM FLUID TEMPERATURE (°F) | 109 |
| MODEL | Finex |
| SPRAY PATTERN | Flat |
| TRIGGER LOCK | Non-Locking |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| SPRAY TYPE | Air Spray |
| TECHNOLOGY TYPE | Conventional / HVLP |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| MAXIMUM FLUID PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM AIR INLET PRESSURE (MPA) | 0.7 |
| FLUID INLET SIZE (CM) | 0.9525 |
| FLUID INLET SIZE (IN) | 3/8 |
| FLUID INLET SIZE (MM) | 9.525 |
| FLUID INLET THREAD TYPE | NPSM |
