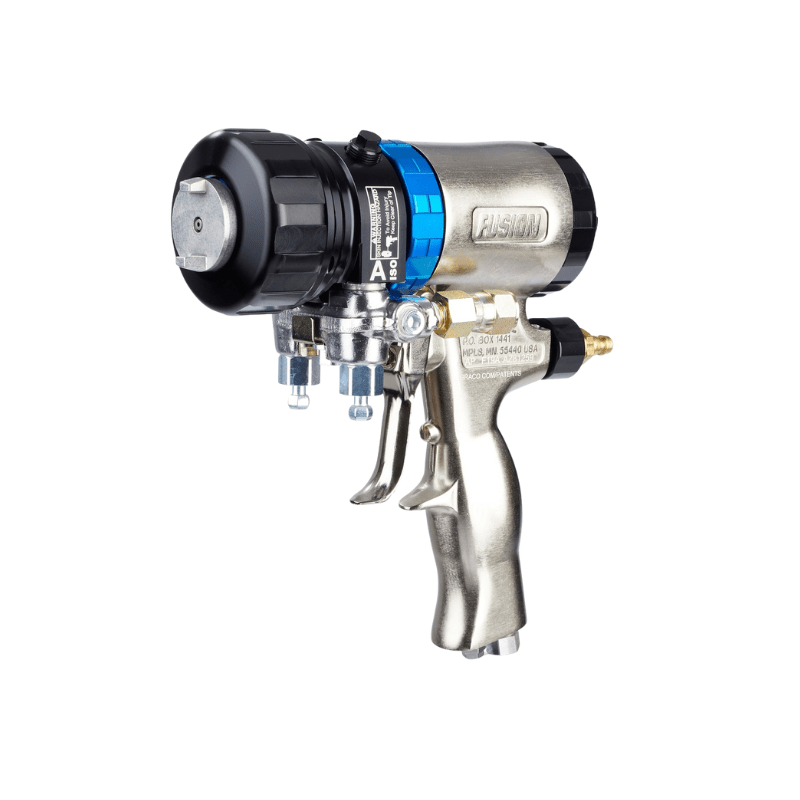

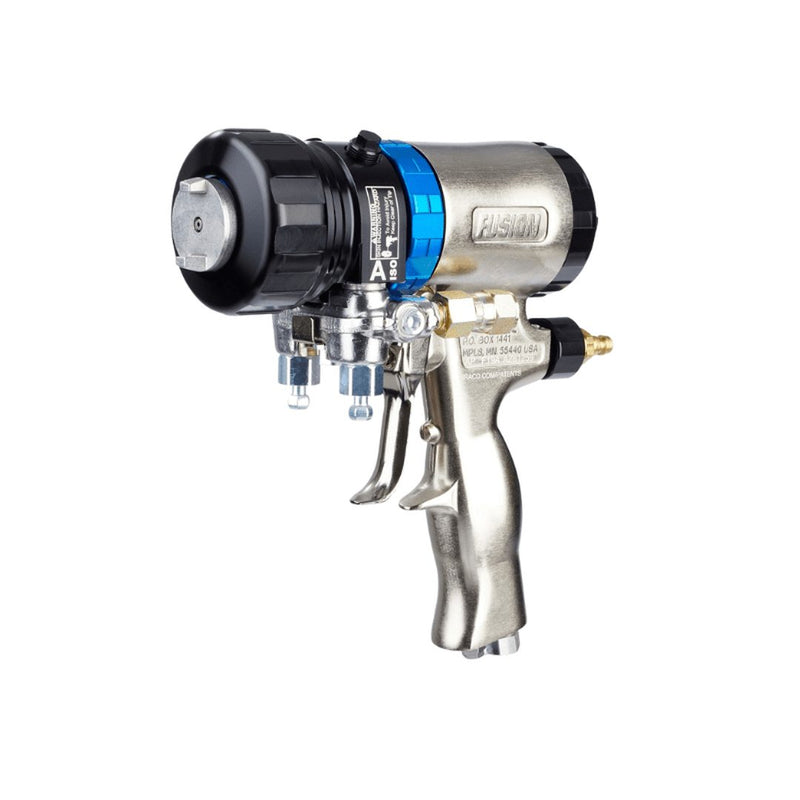

GRACO Fusion ProConnect Gun Mix Chamber
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.
Features
Features
Specifications
| Air Inlet Size (cm) | 0.635 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Component A Inlet Size (cm) | 1.27 |
| Component A Inlet Size (in) | 1/2-20 |
| Component A Inlet Size (mm) | 12.7 |
| Component A Inlet Thread Type | UNF |
| Component B Inlet Size (cm) | 1.42875 |
| Component B Inlet Size (in) | 9/16-18 |
| Component B Inlet Size (mm) | 14.2875 |
| Component B Inlet Thread Type | UNF |
| Component Type | Plural-Component |
| Fluid Orifice Size (cm) | 0.107 |
| Fluid Orifice Size (mm) | 1.07 |
| For Use With | Non-Flammable Foam and Polyurea |
| Gun Weight (g) | 1338 |
| Gun Weight (kg) | 1.3 |
| Gun Weight (lb) | 2.95 |
| Gun Weight (oz) | 47 |
| Includes | No Mix Chamber Included |
| Maximum Air Pressure (bar) | 9 |
| Maximum Air Pressure (kPa) | 900 |
| Maximum Air Pressure (psi) | 130 |
| Maximum Flow Rate @ PSI (lb/min) | 50 |
| Maximum Fluid Pressure (bar) | 241 |
| Maximum Fluid Pressure (kPa) | 24100 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Fluid Temperature (°C) | 93 |
| Maximum Fluid Temperature (°F) | 200 |
| Minimum Air Inlet Pressure (bar) | 5.5 |
| Minimum Air Inlet Pressure (kPa) | 550 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Model | Fusion PC |
| Overall Height (cm) | 20.6 |
| Overall Height (in) | 8.1 |
| Overall Height (mm) | 206 |
| Overall Length (cm) | 20.3 |
| Overall Length (in) | 8 |
| Overall Length (mm) | 203 |
| Overall Width (cm) | 8.4 |
| Overall Width (in) | 3.3 |
| Overall Width (mm) | 84 |
| Pattern Size (in) | NA |
| Pattern Size (mm) | NA |
| Purge Method | Air |
| Series | Round |
| Spray Gun Mix Type | Impingement |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Product Type | Spray Gun |
| Sound Pressure Level (dB(A)) | 81.1 |
| Maximum Fluid Working Pressure (MPa) | 24.5 |
| Maximum Fluid Working Pressure (bar) | 245 |
| Maximum Fluid Pressure (MPa) | 24.1 |
| Maximum Air Pressure (MPa) | 0.9 |
| Maximum Air Inlet Pressure (bar) | 9 |
| Maximum Air Inlet Pressure (kPa) | 900 |
| Maximum Air Inlet Pressure (psi) | 130 |
| Minimum Air Inlet Pressure (MPa) | 0.55 |
| Maximum Air Inlet Pressure (MPa) | 0.9 |
