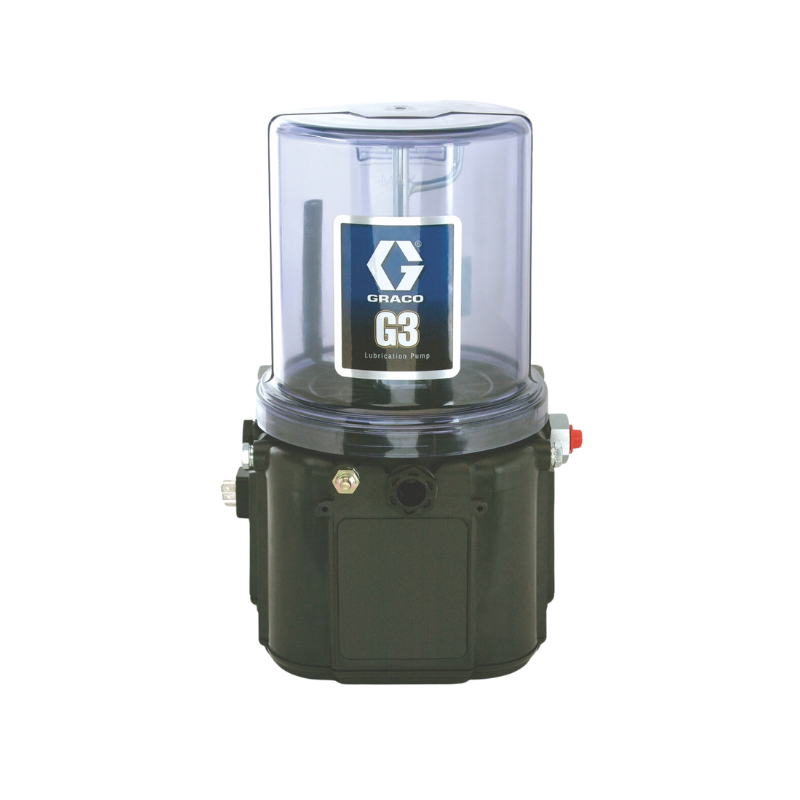

GRACO G3 24 VDC 2 Liter External Low Level CPC Standard Oil Lubrication Pump
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Features
Features
Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| Includes | External Low Level |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Reservoir Size (L) | 2 |
| Series | Standard |
| Voltage (V dc) | 24 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum cST Grade (cST) | 40 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (cm) | 22.9 |
| Overall Depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall Height (cm) | 33.7 |
| Overall Height (in) | 13.25 |
| Overall Height (mm) | 337 |
| Overall Width (cm) | 20.3 |
| Overall Width (in) | 8 |
| Overall Width (mm) | 203 |
| Power Connection Type | CPC |
| Voltage (V) | 24 VDC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
