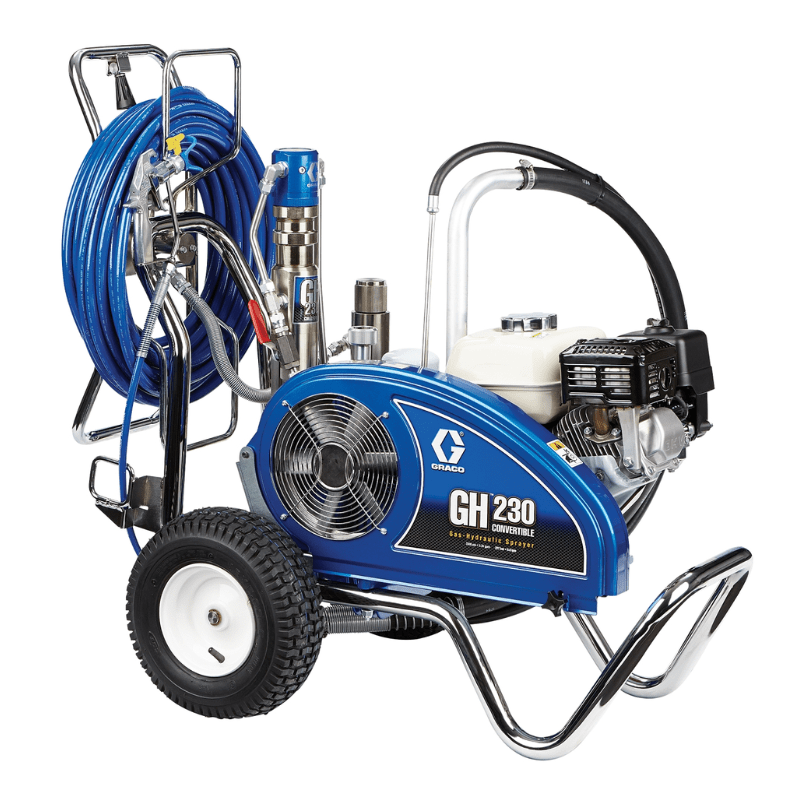

GRACO GH 230 Convertible Gas Hydraulic Airless Sprayer
SKU 24W932
$16,700.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.
Features
Features
- Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filter design won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Rugged, Durable Cart Design
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
- Electric Motor Capability
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
- Electric motor kit sold separately
- Ready to Work
Includes everything you need to get spraying:- Silver Plus Airless Spray Gun
- RAC X SwitchTips and Guard
- 50 feet of BlueMax II Airless Hose
Specifications
| COMPATIBLE MATERIAL | Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 24W997 |
| CONVERTIBLE | Yes |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| FEATURES | Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 3.75 |
| FLUID OUTLET THREAD TYPE | FNPT |
| FRAME CONFIGURATION | Cart |
| INCLUDES | Silver Plus Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 2.35 |
| MAXIMUM FLOW RATE (L/MIN) | 8.9 |
| MAXIMUM HOSE LENGTH (FT) | 300 |
| MAXIMUM HOSE LENGTH (M) | 92 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.053 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.053 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| OVERALL WIDTH (MM) | 610 |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 104.1 |
| OVERALL HEIGHT (IN) | 41 |
| WEIGHT (KG) | 76 |
| WEIGHT (LB) | 168 |
| OVERALL HEIGHT (MM) | 1041 |
| OVERALL LENGTH (CM) | 121.92 |
| OVERALL WIDTH (IN) | 24 |
| OVERALL LENGTH (IN) | 48 |
| SERIES | 230 |
| OVERALL LENGTH (MM) | 1219.2 |
| OVERALL WIDTH (CM) | 61 |
| PUMP TYPE | Endurance |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | Easy Out |
| PUMP SLEEVE MATERIAL | Stainless Steel |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Chromex |
| NUMBER OF GUNS | 5 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.038 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.032 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.028 |
| POWER RATING (CC) | 200 |
| COMPATIBLE ELECTRIC MOTOR KITS | 248949, 248950 (CSA) |
| MAXIMUM TIP SIZE GUN 5 (IN) | 0.024 |
| MAXIMUM TIP SIZE 2 GUNS - ELECTRIC MOTOR (IN) | 0.017 |
| MAXIMUM TIP SIZE 1 GUN - ELECTRIC MOTOR (IN) | 0.031 |
| PRODUCT SERIES | Standard |
