Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare 16U278
  • Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare 16U278
1 1

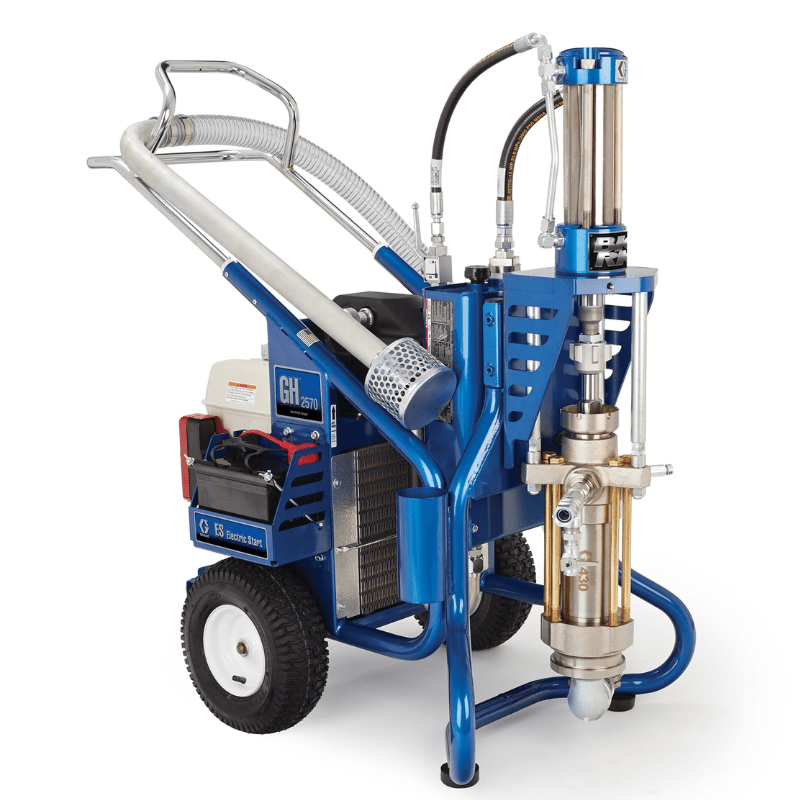

GRACO GH 2570ES Bare Big Rig Gas Hydraulic Sprayer

SKU: 16U278

GRACO GH 2570ES Bare Big Rig Gas Hydraulic Sprayer

$32,560.00 AUD
$32,560.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare 16U278

GRACO GH 2570ES Bare Big Rig Gas Hydraulic Sprayer

$32,560.00 AUD
$32,560.00 AUD $0.00 AUD
Save $0
Sold out

Details

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

Features

  • Honda® Engine with Electric Start
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
    • Back-up Pull Start
    • High-capacity, 12 Volt 18 Amp Charging System
  • Heavy-Duty Graco Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 4 gallon hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tires
    • Enamel painted steel tubing - corrosion protection
    • Multi-function design converts to skid mount in seconds
  • Xtreme Pump
    • QuikChange pump section
    • Time tested durability and performance
    • Long life XtremeSeal™ and leather packings
    • Heavy-duty piston rod for long life
    • QuikAccess intake valve removes easily for fast repairs
  • Additional Features
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
    • Large diameter siphon hose

Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare

Overview

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 2570ES can get the job done.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

COMPATIBLE MATERIAL Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer
COMPATIBLE REPLACEMENT PUMP 16U752
ENGINE BRAND Honda
ENGINE SIZE (HP) 13
ENGINE SIZE (KW) 9.7
FLUID INLET SIZE (IN) 2
FLUID INLET SIZE (MM) 50.8000
FLUID INLET THREAD TYPE NPT
FLUID OUTLET SIZE (IN) 1-1/2
FLUID OUTLET THREAD TYPE NPT
FRAME CONFIGURATION Cart
MAXIMUM FLOW RATE (GPM) 7
MAXIMUM FLOW RATE (L/MIN) 26.5
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 91
MAXIMUM WORKING PRESSURE (PSI) 2500
MAXIMUM WORKING PRESSURE (KPA) 1720
POWER RATING (HP) 13
POWER SOURCE Gas Hydraulic
POWER RATING (KW) 9.7
OVERALL WIDTH (MM) 711.2000
MODEL GH
MAXIMUM WORKING PRESSURE (BAR) 172
OVERALL HEIGHT (CM) 124
OVERALL HEIGHT (IN) 49
WEIGHT (KG) 214
WEIGHT (LB) 471
OVERALL HEIGHT (MM) 1244.6000
OVERALL LENGTH (CM) 109
OVERALL WIDTH (IN) 28
OVERALL LENGTH (IN) 43
SERIES 2570ES
OVERALL LENGTH (MM) 1092.2
OVERALL WIDTH (CM) 71
PUMP TYPE Xtreme
TYPE Airless Sprayer
MOTOR TYPE Hydraulic Motor
WETTED MATERIAL Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
PUMP MOUNT TYPE QuikChange
PUMP ROD TYPE Hard Chrome
PRODUCT TYPE Single Leg
MATERIAL APPLICATION Paints, Primers
POWER RATING (CC) 390
CONTROL TYPE N/A

    Features

    • Honda® Engine with Electric Start
      • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
      • Contractor preferred engine with Oil Alert
      • Back-up Pull Start
      • High-capacity, 12 Volt 18 Amp Charging System
    • Heavy-Duty Graco Hydraulic System
      • Faster, more responsive changeover
      • O-ring sealed to eliminate leaks
      • High-precision pressure control
      • No hydraulic reset button needed
      • Durable hydraulic lines for long life
    • Heavy-Duty Cooling System
      • Large 4 gallon hydraulic reservoir
      • Return line hydraulic filter extends life
      • No special hydraulic fluid needed
      • Proven cooler and blower system
      • Easy to use drain plug
    • Rugged, Heavy-Duty Steel Frame
      • Easy-roll tubed pneumatic tires
      • Enamel painted steel tubing - corrosion protection
      • Multi-function design converts to skid mount in seconds
    • Xtreme Pump
      • QuikChange pump section
      • Time tested durability and performance
      • Long life XtremeSeal™ and leather packings
      • Heavy-duty piston rod for long life
      • QuikAccess intake valve removes easily for fast repairs
    • Additional Features
      • Lockable pressure control knob
      • Grounding wire for safety with solvent materials
      • Large diameter siphon hose
