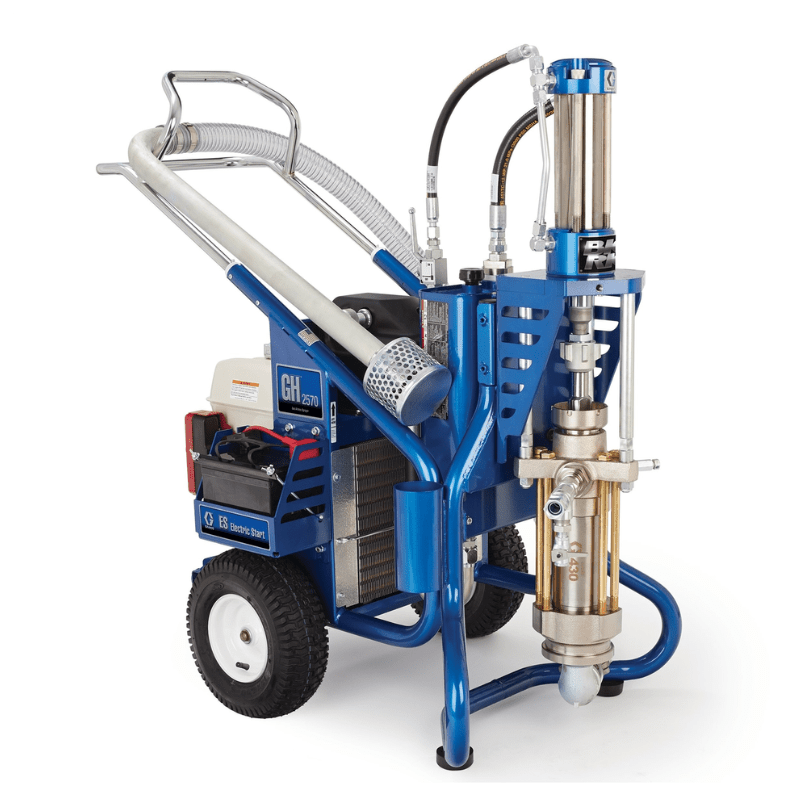

GRACO GH 2570ES Big 250 System Big Rig Gas Hydraulic Sprayer
SKU 16U776
$38,900.00
Tax included. Shipping calculated at checkout.
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 2570ES can get the job done.
Features
Features
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing - corrosion protection
- Multi-function design converts to skid mount in seconds
- Xtreme Pump
- QuikChange pump section
- Time tested durability and performance
- Long life XtremeSeal™ and leather packings
- Heavy-duty piston rod for long life
- QuikAccess intake valve removes easily for fast repairs
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
Specifications
| COMPATIBLE MATERIAL | Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 16U752 |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 13 |
| ENGINE SIZE (KW) | 9.7 |
| FLUID INLET SIZE (IN) | 2 |
| FLUID INLET SIZE (MM) | 50.8000 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1-1/2 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Cart |
| MAXIMUM FLOW RATE (GPM) | 7 |
| MAXIMUM FLOW RATE (L/MIN) | 26.5 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
| MAXIMUM WORKING PRESSURE (PSI) | 2500 |
| MAXIMUM WORKING PRESSURE (KPA) | 1720 |
| POWER RATING (HP) | 13 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 9.7 |
| OVERALL WIDTH (MM) | 711.2000 |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 172 |
| OVERALL HEIGHT (CM) | 124 |
| OVERALL HEIGHT (IN) | 49 |
| WEIGHT (KG) | 214 |
| WEIGHT (LB) | 471 |
| OVERALL HEIGHT (MM) | 1244.6000 |
| OVERALL LENGTH (CM) | 109 |
| OVERALL WIDTH (IN) | 28 |
| OVERALL LENGTH (IN) | 43 |
| SERIES | 2570ES |
| OVERALL LENGTH (MM) | 1092.2 |
| OVERALL WIDTH (CM) | 71 |
| PUMP TYPE | Xtreme |
| TYPE | Airless Sprayer |
| MOTOR TYPE | Hydraulic Motor |
| WETTED MATERIAL | Steel, Nitralloy, Tungsten Carbide, PTFE, Leather |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Hard Chrome |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 390 |
| CONTROL TYPE | N/A |
Manual
- Graco Manual GH Series Big Rig Sprayers Operation 332156EN-E
- Graco Manual GH Series Roof Rig Sprayers Repair 332157EN-B
- Graco Manual Parts GH Series Big Rig Sprayers 1 332158EN-J
- Graco King 30-1 Sprayer Integrated Filter Manual 2 311762EN-ZAR
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- Graco Instructions Parts Carbon Steel Dura-Flo 1800 Pumps 308147EN-Z
- GO Manual Graco NXT Dura-Flo Oil Pump 12-1 23-1 Pump Lower 311825EN-L
