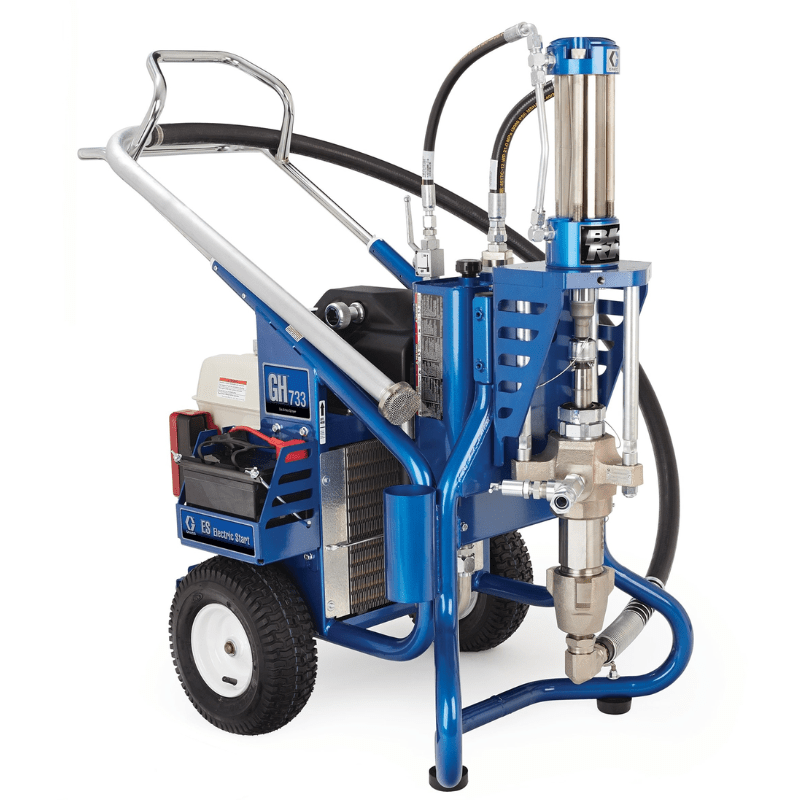

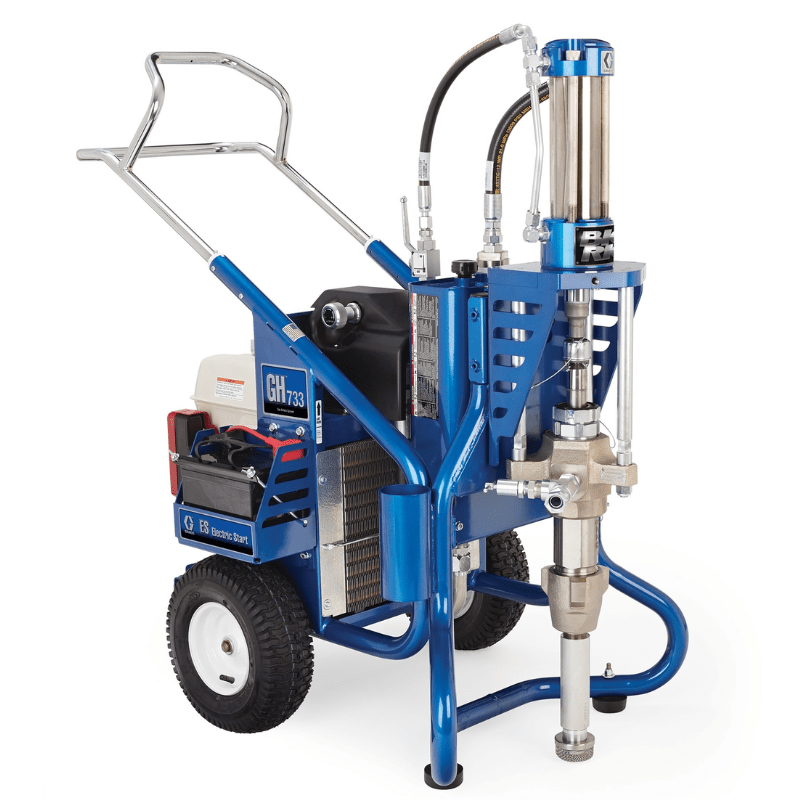

GRACO GH 733ES Bare Gas Hydraulic Sprayer
Regular price
$27,280.00 AUD
Sale price
$27,280.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing - corrosion protection
- Multi-function design converts to skid mount in seconds
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
- Xtreme Pump
- QuikChange pump section
- Time tested durability and performance
- Long life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuikAccess intake valve removes easily for fast repairs
Graco GH 733ES Gas Hydraulic Sprayer, Bare
Overview
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 733ES can get the job done.
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing - corrosion protection
- Multi-function design converts to skid mount in seconds
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
- Xtreme Pump
- QuikChange pump section
- Time tested durability and performance
- Long life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuikAccess intake valve removes easily for fast repairs
Specifications
| COMPATIBLE MATERIAL | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 16U754 |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 13 |
| ENGINE SIZE (KW) | 9.7 |
| FLUID INLET SIZE (IN) | 1-1/4 |
| FLUID INLET THREAD TYPE | MNPT |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET THREAD TYPE | NPSF |
| FRAME CONFIGURATION | Cart |
| MAXIMUM FLOW RATE (GPM) | 3.5 |
| MAXIMUM FLOW RATE (L/MIN) | 13.2 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
| MAXIMUM TIP SIZE (IN) | 0.067 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.067 |
| MAXIMUM WORKING PRESSURE (PSI) | 5000 |
| MAXIMUM WORKING PRESSURE (KPA) | 3450 |
| POWER RATING (HP) | 13 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 9.7 |
| OVERALL WIDTH (MM) | 711.2000 |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 345 |
| OVERALL HEIGHT (CM) | 124 |
| OVERALL HEIGHT (IN) | 49 |
| WEIGHT (KG) | 199 |
| WEIGHT (LB) | 438 |
| OVERALL HEIGHT (MM) | 1244.6000 |
| OVERALL LENGTH (CM) | 109 |
| OVERALL WIDTH (IN) | 28 |
| OVERALL LENGTH (IN) | 43 |
| SERIES | 5040ES |
| OVERALL LENGTH (MM) | 1092.2 |
| OVERALL WIDTH (CM) | 71 |
| PUMP TYPE | Xtreme |
| TYPE | Airless Sprayer |
| MOTOR TYPE | Hydraulic Motor |
| WETTED MATERIAL | Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Hard Chrome |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.048 |
| PRODUCT TYPE | Single Leg |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.039 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.035 |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 390 |
| MAXIMUM TIP SIZE GUN 5 (IN) | 0.031 |
| CONTROL TYPE | N/A |
| MAXIMUM TIP SIZE GUN 6 (IN) | 0.028 |
