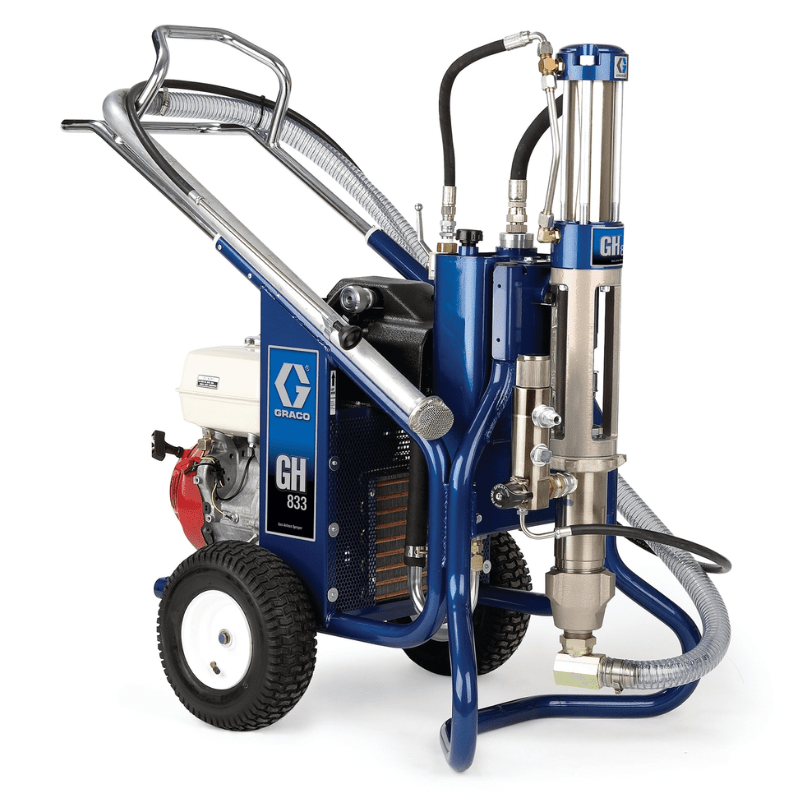

Graco GH 833 Gas Hydraulic Sprayer
Overview
The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This job-site proven workhorse is the answer when you demand ruggedness, performance and value.
- GRACO TexSpray 7900 HD Standard Series Gas Airless Sprayer 17E841 Operations Manual 3A6400EN-B
- Graco Operation Manual GH833 Sprayers 311279EN-G
- Graco Manual GH 833 Sprayers 311283EN-J
- Graco Parts GH 833 Sprayer 311484EN-S
- Graco Displacement Pump Manual 311485EN-M
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- Honda® Engine
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Flow-Through Filter System
- Inside/out design eliminates clogged filters
- Eliminates tip clogs
- Ready-To-Spray Complete System
- Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
Specifications
COMPATIBLE MATERIAL | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
---|---|
COMPATIBLE REPLACEMENT PUMP | 287834 |
ENGINE BRAND | Honda |
ENGINE SIZE (HP) | 13 |
FLUID INLET SIZE (IN) | 1-1/2 to 11-1/2 |
FLUID INLET THREAD TYPE | MNPT |
FLUID OUTLET SIZE (IN) | 1 to 11-1/2 |
FLUID OUTLET THREAD TYPE | FNPT |
FRAME CONFIGURATION | Cart |
INCLUDES | Silver Plus 喷枪, シルバープラス・ガン, Silver Plus Gun, RAC X 517 喷嘴, RAC X 517 スプレーチップ, RAC X 517 Spray Tip, RAC X 655 喷嘴, RAC X 655 スプレーチップ, RAC X 655 Spray Tip, RAC X 喷嘴座, RAC X ガード, RAC X Guard, 3/8 英寸 x 50 英尺 BlueMax II HP 无气软管, 3/8 インチ x 50 ft BlueMax II HP エアレスホース, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 英寸 x 3 英尺 BlueMax II HP 无气快接软管, 1/4 インチ x3 ft BlueMaxII HP エアレス手元ホース, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose |
MAXIMUM FLOW RATE (GPM) | 4 |
MAXIMUM FLOW RATE (L/MIN) | 15.1 |
MAXIMUM HOSE LENGTH (FT) | 50 |
MAXIMUM HOSE LENGTH (M) | 15 |
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
MAXIMUM TIP SIZE (IN) | 0.065 |
MAXIMUM WORKING PRESSURE (PSI) | 4000 |
MAXIMUM WORKING PRESSURE (KPA) | 27580 |
POWER RATING (HP) | 13 |
POWER SOURCE | Gas Hydraulic |
POWER RATING (KW) | 9.7 |
POWER RATING (W) | 9694 |
MAXIMUM WORKING PRESSURE (MPA) | 27.6 |
PRESSURE CONTROL TYPE | Pressure Control Knob |
MODEL | GH |
MAXIMUM WORKING PRESSURE (BAR) | 275.8 |
WEIGHT (KG) | 163 |
WEIGHT (LB) | 360 |
SERIES | 833 |
PUMP TYPE | Endurance |
TYPE | Airless Sprayer |
MOTOR TYPE | Hydraulic Motor |
OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
PUMP MOUNT TYPE | QuikChange |
PUMP ROD TYPE | MaxLife |
NUMBER OF GUNS | 6 |
MAXIMUM TIP SIZE GUN 2 (IN) | 0.046 |
PRODUCT TYPE | Single Leg |
MAXIMUM TIP SIZE GUN 3 (IN) | 0.037 |
MAXIMUM TIP SIZE GUN 4 (IN) | 0.032 |
MATERIAL APPLICATION | 油漆, 塗料, Paints, 底漆, プライマー, Primers |
POWER RATING (CC) | 390 |
MAXIMUM TIP SIZE GUN 5 (IN) | 0.029 |
CONTROL TYPE | N/A |
MAXIMUM TIP SIZE GUN 6 (IN) | 0.026 |
Features
