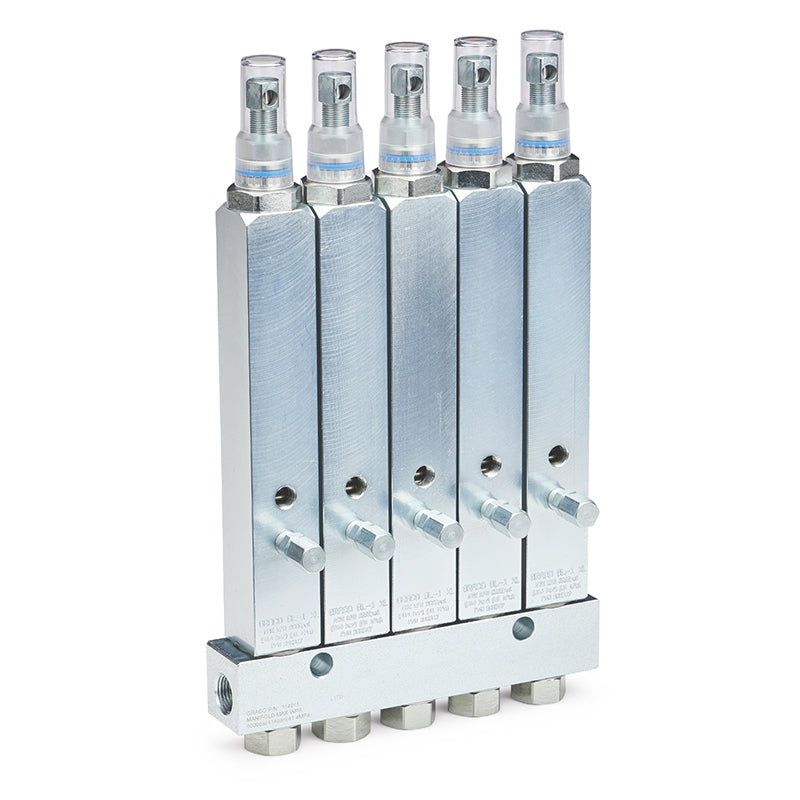

GL-1™ XL Grease Injector, Five Point

GRACO GL-1 XL Grease Injector

SKU 24X815
Afterpay Zip PayPal LeaseGO
$2,400.00
Tax included. Shipping calculated at checkout.
Item
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Custom fit your system with Graco's adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.

Features
  • The GL-1 XL injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications
  • Includes an adjustable hex head nut to make adjusting the output simple
  • Convenient top-mounted cycle pin indicator for quick confirmation that the injector is functioning properly
  • No vent holes and fully enclosed press fittings to prevent leaking lubricant
  • Rugged, single piece uni-body design built for the harshest environments
    • Specifications

    Technical Specifications

    ADJUSTABLE Adjustable
    COMPATIBLE MATERIAL Grease
    CYCLE INDICATOR Visual
    FOR USE WITH 单线路并联自动润滑系统, 単線並列自動潤滑システム, Single Line Parallel Automatic Lubrication Systems, Sistemas de lubricación automática con una línea simple paralela
    INLET SIZE (CM) 0.9525
    INLET SIZE (IN) 3/8
    INLET SIZE (MM) 9.525
    INLET THREAD TYPE NPT
    MAXIMUM NLGI GRADE #2
    MAXIMUM OUTPUT VOLUME (IN³) 0.315
    MAXIMUM WORKING PRESSURE (BAR) 414
    MAXIMUM WORKING PRESSURE (KPA) 41400
    MAXIMUM WORKING PRESSURE (PSI) 6000
    MINIMUM OUTPUT VOLUME (IN³) 0.035
    OUTLET SIZE (CM) 0.9525
    OUTLET SIZE (IN) 3/8
    OUTLET SIZE (MM) 9.525
    OUTLET THREAD TYPE NPT
    MAXIMUM OPERATING PRESSURE (PSI) 6000
    MINIMUM OPERATING PRESSURE (PSI) 1850
    WETTED MATERIAL Carbon Steel, Stainless Steel, Fluoroelastomer, UHMWPE
    MAXIMUM RESET PRESSURE (PSI) 1000
    DISPENSE OUTLET SIZE (CM) 0.33
    DISPENSE OUTLET SIZE (MM) 3.3
    DISPENSE OUTLET SIZE (IN) 0.13
    DISPENSE OUTLET THREAD TYPE NPT
    TYPE Grease Injector
    COMPATIBLE METERING DEVICE Single Line Parallel
    APPLICATION In-Plant Machinery, Off-Road Equipment
    MAXIMUM WORKING PRESSURE (MPA) 41.4
    SERIES XL
    MODEL GL-1
