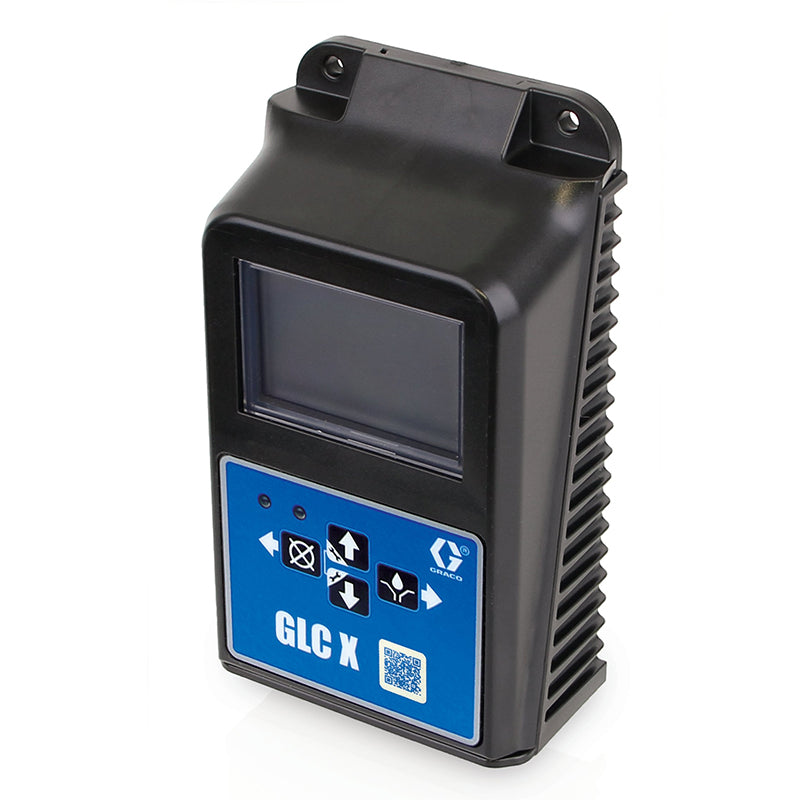

GRACO GLC X Controller
SKU 26A814
$1,443.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock, Victoria Warehouse
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.
Features
Specifications
Technical Specifications
| AMPERAGE (A) | 15 |
|---|---|
| NUMBER OF PIECES | 1 |
| SERIES | X |
| TYPE | Controller |
| INTRUSION RATING | IP69K |
| MINIMUM OPERATING TEMPERATURE (°C) | -30 |
| MINIMUM OPERATING TEMPERATURE (°F) | -22 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 70 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 158 |
| MAXIMUM VOLTAGE (V DC) | 30 |
| MAXIMUM VOLTAGE (V) | 30 |
| MINIMUM VOLTAGE (V DC) | 9 |
| MINIMUM VOLTAGE (V) | 9 |
| MINIMUM AMBIENT TEMPERATURE (°F) | -22 |
| MINIMUM STORAGE TEMPERATURE (°C) | -30 |
| MINIMUM STORAGE TEMPERATURE (°F) | -22 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 70 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 158 |
| WEIGHT (KG) | 319 |
| WEIGHT (LB) | 0.7 |
| POWER CONSUMPTION (W) | 450 |
| OVERALL DEPTH (CM) | 5 |
| OVERALL DEPTH (IN) | 1.98 |
| OVERALL HEIGHT (CM) | 16.9 |
| OVERALL HEIGHT (IN) | 6.66 |
| OVERALL HEIGHT (MM) | 169 |
| OVERALL WIDTH (CM) | 9.2 |
| OVERALL WIDTH (IN) | 3.62 |
| OVERALL WIDTH (MM) | 92 |
| CURRENT CONSUMPTION (A) | 15 |
| COUNT RATE (COUNTS/SEC @ 50% DUTY CYCLE) | 5 |
| MAXIMUM PROGRAM TIME (MIN) | 99 |
| MAXIMUM PROGRAM TIME (SEC) | 5999 |
| MINIMUM PROGRAM TIME (HRS) | 0 |
| MINIMUM PROGRAM TIME (MIN) | 0 |
| MINIMUM PROGRAM TIME (SEC) | 10 |
| MINIMUM PROGRAM TIME (STROKES) | 1 |
| MINIMUM MONITOR TIME (HRS) | 0 |
| MINIMUM MONITOR TIME (MIN) | 1 |
| MINIMUM MONITOR TIME (SEC) | 0 |
| MINIMUM MONITOR TIME (STROKES) | 1 |
| MAXIMUM SYSTEM CYCLE COUNT | 100 |
| MINIMUM SYSTEM CYCLE COUNT | 1 |
| AUXILIARY ALARM MAX SWITCHING CURRENT (A) | 10 |
| AUXILIARY ALARM MAX SWITCHING VOLTAGE (VDC) | 9-30 |
| AUXILIARY ALARM VOLTAGE | 9-30 VDC |
| LOW LEVEL ALARM MAX SWITCHING CURRENT (A) | 10 |
| LOW LEVEL ALARM MAX SWITCHING VOLTAGE (VDC) | 30 |
| PUMP CONTROL MAX SWITCHING CURRENT (A) | 10 |
| PUMP CONTROL MAX SWITCHING VOLTAGE (VDC) | 30 |
| PUMP CONTROL VOLTAGE (VDC) | 9-30 |
| MACHINE COUNT CONTROL INPUT | Input 4 |
| LUBRICATION LEVEL INPUT | Input 1: 10V |
| POWER SOURCE | Electric |
| APPLICATION | In-Plant Machinery, Off-Road Equipment, On-Road Vehicles |
| CONTROL MODE | Timer, Pressure, Cycle |
| MODEL | GLC |
