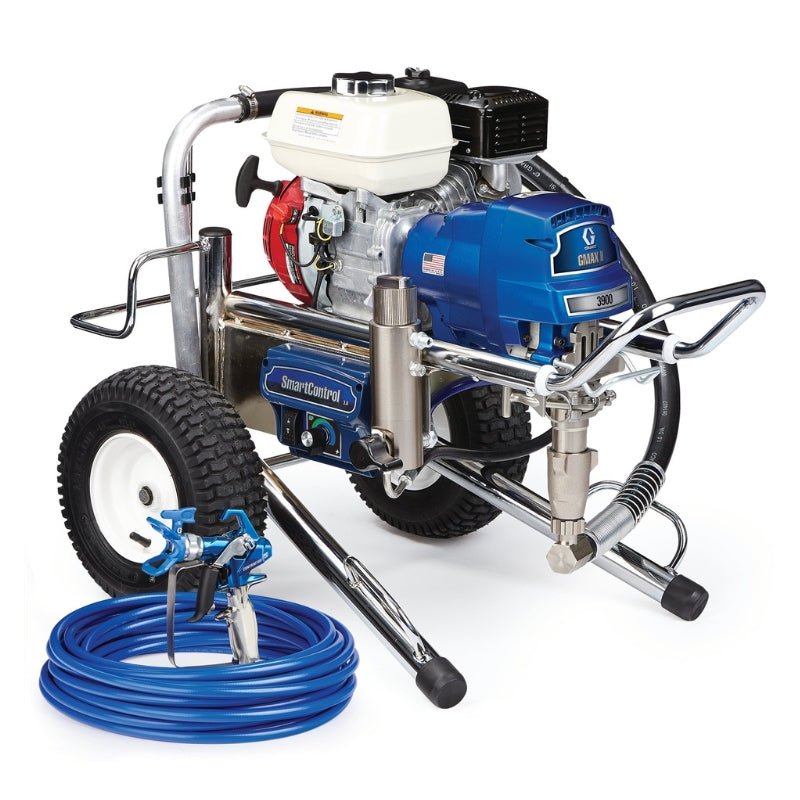

GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer
SKU 17E826
$10,303.00
$12,100.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock, Victoria Warehouse
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.
Features
Features
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- Repack the pump in minutes with the new QuikPak Cartridge System
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- ProConnect 2 Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Durable Cart Design
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Convenient retractable bucket hook allows for easy movement on the job
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info:graco.com/ContractorPC
- Jobsite Ready
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
Specifications
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 4 |
| FEATURES | Endurance Chromex Pump, ProConnect 2, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 1/4 |
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Lo-Boy |
| HOSE INLET DIAMETER (CM) | 0.635 |
| HOSE INLET DIAMETER (IN) | 1/4 |
| HOSE INLET DIAMETER (MM) | 6.35 |
| INCLUDES | Contractor PC, Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 1.25 |
| MAXIMUM FLOW RATE (L/MIN) | 4.73 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.036 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.036 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 4 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 2.98 |
| POWER RATING (W) | 2983 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 67.1 |
| OVERALL HEIGHT (IN) | 26.4 |
| WEIGHT (KG) | 56 |
| WEIGHT (LB) | 123 |
| OVERALL HEIGHT (MM) | 671 |
| OVERALL LENGTH (CM) | 119.1 |
| OVERALL WIDTH (IN) | 24 |
| OVERALL LENGTH (IN) | 46.9 |
| SERIES | 3900 |
| OVERALL LENGTH (MM) | 1191 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | Stainless Steel |
| PUMP MOUNT TYPE | ProConnect 2 |
| PUMP ROD TYPE | Chromex |
| NUMBER OF GUNS | 2 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.023 |
| RECOMMENDED ANNUAL USAGE | Up to 500 gallons per week |
| POWER RATING (CC) | 120 |
| PRODUCT SERIES | Standard |
